ART BT-DI Bluetooth® Direct Box

ART BT-DI Bluetooth® Direct Box

1 / 4
ART BT-DI Bluetooth® Direct Box
2 / 4
ART BT-DI Bluetooth® Direct Box
3 / 4
ART BT-DI Bluetooth® Direct Box
4 / 4
ART BT-DI Bluetooth® Direct Box
ART BT-DI Bluetooth® Direct Box
ART BT-DI Bluetooth® Direct Box
ART BT-DI Bluetooth® Direct Box
ART BT-DI Bluetooth® Direct Box
Regular price $284.49 SGD
Sale price $284.49 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Features

  • Bluetooth® 5.0 Receiver
  • Up to 100 ft / 30 m Range (Line of Sight)
  • Transformer-Isolated XLR Outputs
  • Line / Headphone Monitor Out with Mono / Stereo Switch
  • Fixed or Variable Main Output Level
  • Level Control Adjusts Monitor or Main + Monitor Volume
  • Ground Lift
  • Powered by USB or Phantom Power
  • Rugged Steel Case

Technical Data

Active or Passive

Active

Inputs

Bluetooth® Version 5.0
Class 2 Device (BR / EDR)

Supports SBC and AAC Codecs

Range

Up to 100 ft / 30 m Range (Line of Sight)

Outputs

2x XLR 1x 1/4" TRS Headphone / Line

Output Impedance

300Ω

Maximum Output Level

0 dBu

Controls

Bluetooth Pair, Level, Main / Monitor Switch,
Monitor Mono / Stereo Switch, Ground Lift

Signal to Noise Ratio

-90 dB Unweighted (Typical)

Total Harmonic Distortion

< 0.05% (Typical)

Power Requirements

USB (5V, 80 mA) or Phantom Power (Requires
Connection of Both XLR Outputs)

Dimensions (HWD)

1.6" x 5" x 5.5"

3.6 cm x 12.6 cm x 14 cm

Weight

2 lbs / 907 g



The BT-DI lets you connect Bluetooth® audio to a mixer, PA system, or audio interface.

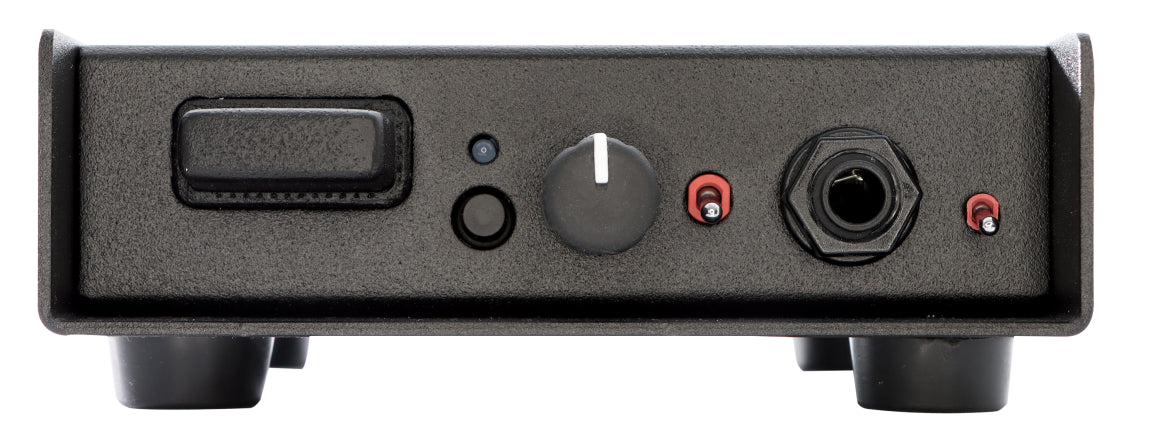

It’s a rugged unit with simple controls. Hold the Bluetooth button to pair or disconnect a device. A front panel switch selects between a fixed volume at the main outputs or variable adjustment with the Level knob, which also controls the monitor output.

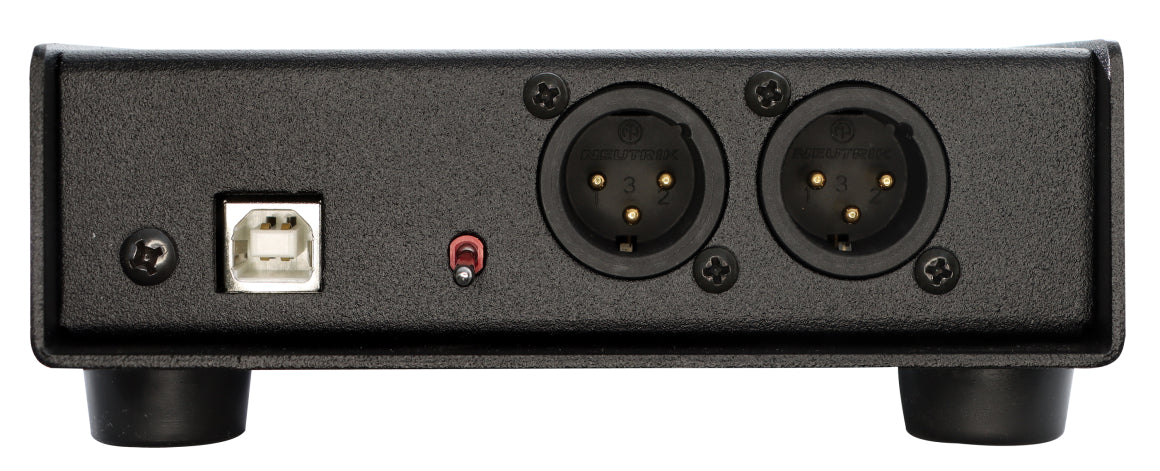

The monitor output is switchable between mono and stereo operation, and supports headphone and line level connections. The Ground Lift on the rear panel can eliminate grounding noise when the BT-DI is connected to a computer.

The XLR connections accept phantom power, so an external adaptor isn’t required. The unit can also be powered over USB using bus power or a 5-volt 80 mA adapter (not included). With a range of up to 100 feet (30 metres), the BT-DI makes it easy to integrate wireless audio into your sound system.

Need to connect digital audio from a USB source? Check out the USB DI.
