Features

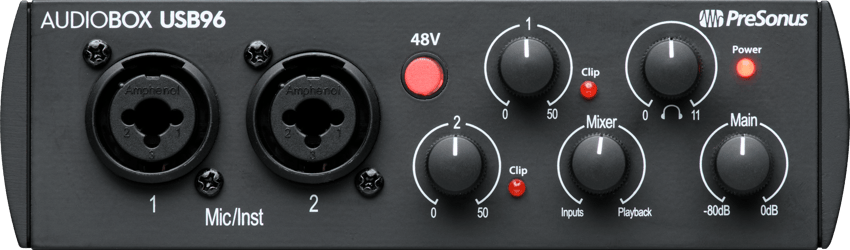

AudioBox USB 96

• PreSonus' all-time best-selling USB audio interface, now in sleek 25th-anniversary black
• Record guitar and vocals at the same time: Two crystal-clear, class-A mic preamps with +48v provide power for condenser mics
• Combo inputs let you record line-level sources like keyboards
• Zero-latency hardware monitoring lets you hear yourself in real-time via internal analog mixer
• High-volume headphone output lets you monitor your performance loudly and clearly while recording so you get a great take every time.
• MIDI In/Out lets you connect synths, drum machines, and controllers
• Balanced ¼" Main Outputs for connecting professional studio monitors
• Recording Software included: Studio One Artist DAW recording software and Studio Magic software bundle including music tutorials, tons of sound samples and virtual instruments; plus Ableton Live Lite
• USB cable included
• USB bus-powered: no wall wart required!
• 24-bit resolution; 44.1, 48, 88.1, and 96 kHz sampling rates provided for maximum audio quality

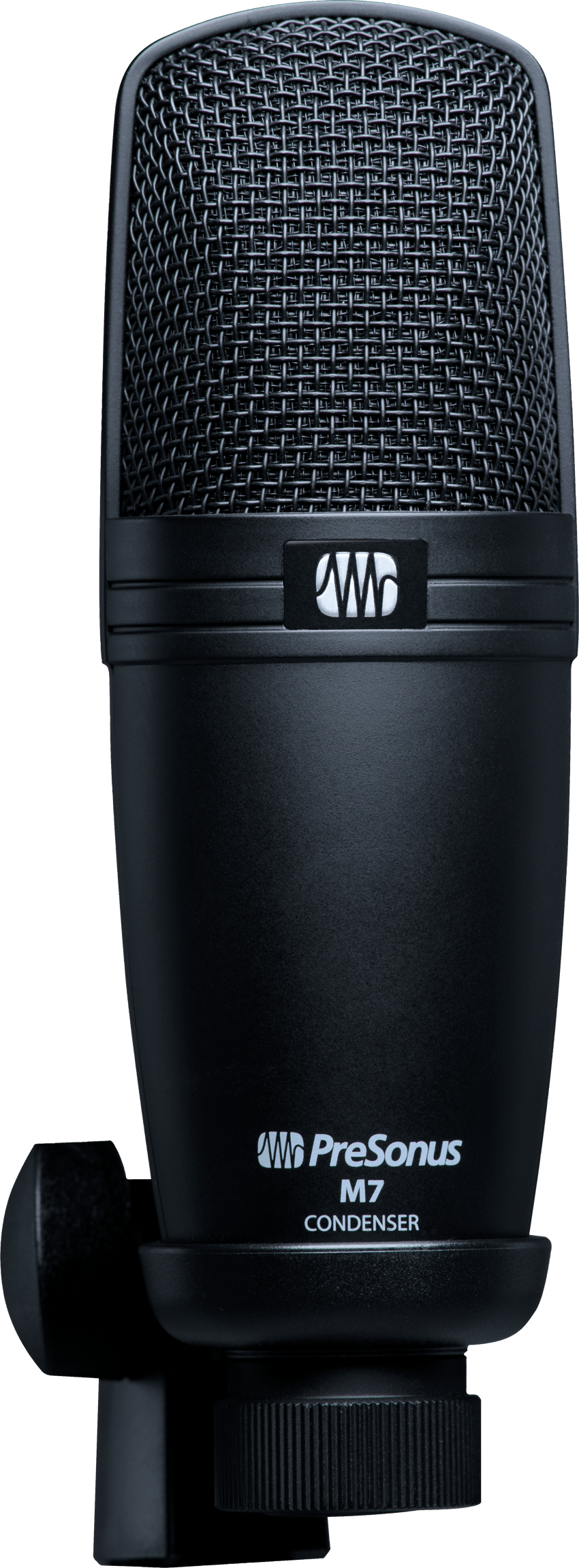

M7 Condenser Microphone

• Large-diaphragm design makes it perfect for capturing the nuance of acoustic guitar and voice
• +48v phantom-powered via AudioBox USB 96
• Mic stand adapter included
• 9' / 3 m XLR cable included

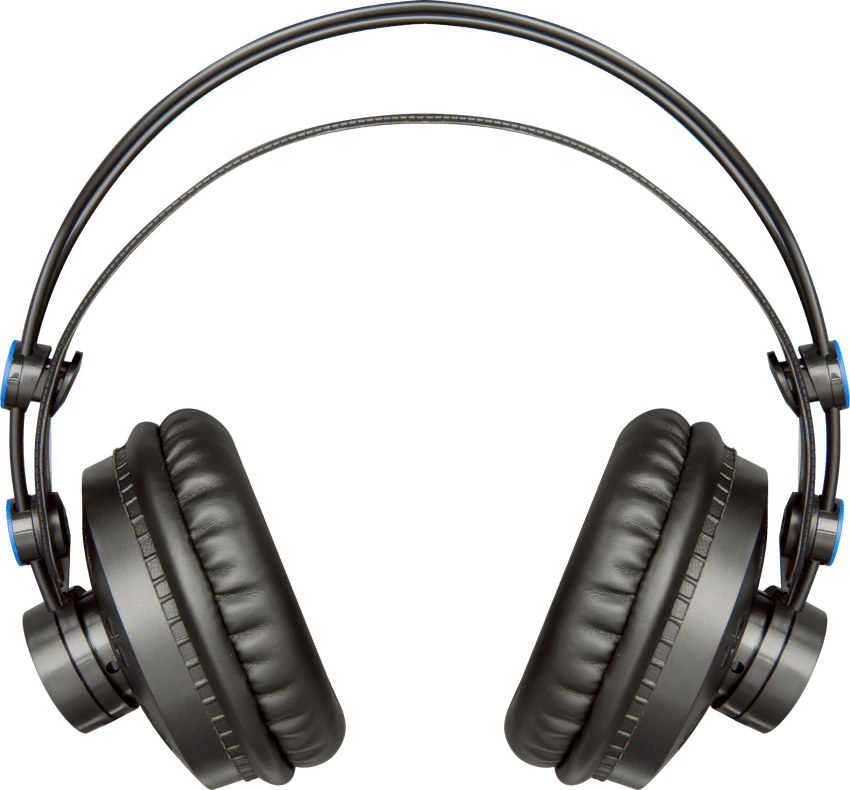

HD7 Headphones

• High resolution neodymium drivers for optimal sound quality
• Extended bass response so you'll hear the lowest lows
• Built tough to withstand abuse
• Lightweight and comfortable with long-lasting ear pads

Studio One® Artist

• Record, produce, and mix all from a single, intuitive application
• Intuitive single-window work environment with quick and easy drag-and-drop functionality and multi-touch support
• Unlimited audio and instrument tracks, virtual instruments, buses, and FX channels
• Five powerful virtual instruments including: Impact XT drum sampler; Presence XT virtual sample-player; Mai Tai polyphonic analog modeling synthesizer; Mojito monophonic subtractive synthesizer; and Sample One XT live sampler and sample editor
• Patterns allow for intuitive drum and melody composition via familiar drum machine/step-sequencer style UI
• VST / AU and ReWire Support lets you use third-party plug-ins, virtual instruments, and ReWire-enabled applications.
• Studio One Remote Support. Use the free Studio One Remote app for iPad® and Android™ tablets to remotely control Studio One while you're away from your computer. Great for recording alone!

Accessories

Included Accessories

1/8" to 1/4" (3.5 to 6.3 mm), Screw-On, Gold-Plated, Stereo Mini-Plug

Electronics

Connectivity

USB 2.0

Headphone Jack

1/4" TRS Active Stereo

Inputs

Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)

Line Out

Two - 1/4" Balanced (Left and Right)

Phantom Power

+48 VDC (±2 VDC)

Phantom Power Requierments

+12 to +52 VDC, 3 mA

Voltage

100-120V

General

Color

Black

Product Name

AudioBox® USB® 96 Studio - 25th Anniversary Edition, Black, 100-120V

Series

AudioBox®

Hardware

Driver Type

50 mm, Neodymium

Microphone Element

Electret

Microphone Types

Large-Diaphragm Condenser Microphone

Inputs

Instrument Inputs Gain Range

(± 1 dB) +5 dB to 50 dB

Microphone Preamp Common Mode Rejection Ratio

(1 kHz, 55 dB Gain) > 45 dB

Microphone Preamp Frequency Response

(±3.0 dB) 20 Hz to 20 kHz

Microphone Preamp Gain Control Range

(± 1 dB) 0 dB to 35 dB

Microphone Preamp Input Impedance

(Balanced) 1200Ω

Microphone Preamp Maximum Input Level

(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu

Microphone Preamp Signal To Noise Ratio

(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB

Microphone Preamp Total Harmonic Distortion

THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%

Measurements

Headphone Weight Without Cable

7.8 oz (222g)

Product Depth

1.75" (44.45 mm)

Product Height

5.5" (139.7 mm)

Product Width

5.5" (139.7 mm)

Miscellaneous

Commodity Code

8517620000

Power Cable

USB 2.0 Bus-Powered

Supported Sample Rates

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Output

Headphone Outputs Frequency Response

(±1.0 dB) 20 Hz to 30 kHz

Headphone Outputs Maximum Output

60 mW/Ch @ 60Ω Load

Main And Line Outputs Output Impedance

51Ω

Performance

Digital Audio Bit Depth

24

Digital Audio Dynamic Range

ADC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-wtd, 48 kHz Sample Rate): 105 dB

Dynamic Range

11 dB

Headphone Frequency Response

10 Hz to 30 kHz

Headphone Maximum Power

300 mW

Headphone Rated Impedance

32Ω

Headphone Sensitivity

98 dB SPL (1 mW)

Maximum SPL

136 dB SPL

Microphone Frequency Response

40 Hz - 18 kHz

Microphone Sensitivity

-39 dBV/pa (12.2 mV/pa)

Polar Patern

Cardioid
