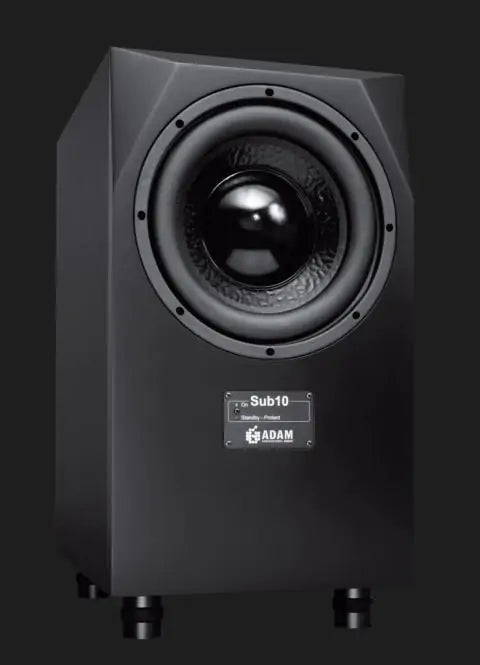

The Sub10 MK2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub10 MK2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).

FEATURES & BENEFITS

Linear bass reproduction down to 25 Hz

• Ideal addition to nearfield and midfield monitors

Maximum Peak sound pressure in 1 m ≥ 113 dB

• Powerful, compression-free sound reproduction even at very high sound levels

High efficiency PWM amplifier

• Low-distortion amplification at both low and high volume levels

Special 10" woofer with paper diaphragm

• Unrestricted bass reproduction for low-fatigue operation even at high volumes

Easy manual or automatic (de-)activation

• If desired, monitoring is possible without the low frequencies

According to downward working bass reflex tube with generous dimensions and corresponding rounding

• Prevention of air turbulence noise

Upper cut-off frequency is selectable between 50 - 150 Hz

• Allows optimal adaptation of the total system on the bass performance of the satellites

Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz

• Dolby- Fair reproduction of film sound
• Discharging the satellites from the low frequencies

2 years warranty with optional extension to 3 years with the registration of the product

• Full repair service if required for 5 years
