Features

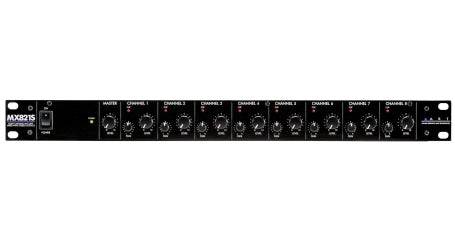

• Eight input channels with individual level and pan controls
• Pan controls place each input mono signal anywhere in the output stereo image
• Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel Full
• +48V low noise phantom power switchable for each microphone input
• Balanced left and right 1/4-inch TRS main output jacks with master level control
• Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
• Each line input jack may be individually converted to a direct line output by means of

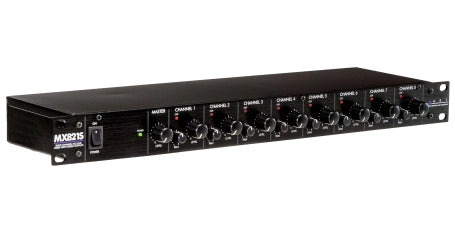

• internal jumpers Rugged 1U rack-mount steel chassis with built-in power supply
• Perfect for stage, studio and permanent installations

Number of Analog Input Channels

8

Number of Mic Preamps

8

Analog Output Channels

1x Stereo Master Output

1x Stereo ALT Master Output

Mix Routing

Main Mix / Aux Bus/Subgroup

EQ

No

Built-In Effects

No

Wireless

No

Max Multitrack Recording

8 Tracks

Rack Mountable

Yes

Mixer

Number of Analog Input Channels

8

Number of Mic Preamps

8

Analog Output Channels

1x Stereo Master Output

1x Stereo ALT Master Output

Mix Routing

Main Mix / Aux Bus/Subgroup

Faders & Level Adjustment

8x Channel Knob

1x Master Knob

Meters

LED

Signal Processing

Gain/Trim Range

Mic Input:

Up to 54 dB

Line Input:

Up to 29 dB

Sidechain Filters

No

EQ

No

Graphic EQ

No

Solo/Mute

No

Built-In Effects

No

Performance

Frequency Response

20 Hz to 20 kHz +0/-1 dB

Max Input Level

Mic Input:

-4 dBu

Line Input:

+22 dBu

Output Level

+24 dBu at Max Gain (Balanced)

+18 dBu at Max Gain (Unbalanced)

I/O Impedance

Main Output:

200 Ohms

Prefader Output:

100 Ohms

Mic Input:

2 Kilohms

Line Input:

20 Kilohms

Aux Input:

51 Kilohms

CMRR

> 43 dB

SNR

> 99 dB (0 dBu Reference)

THD

< 0.01% (1 kHz)

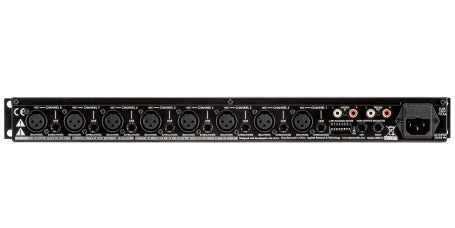

Connectivity

Analog Inputs

8x XLR 3-Pin Balanced Input

8x 1/4" TS Unbalanced Line Input

1x Stereo RCA Unbalanced Aux Input

Analog Outputs

2x 1/4" TRS Balanced Output (1 Stereo Pair)

1x Stereo RCA Coaxial Unbalanced Output

Phantom Power

+48 V, Selectable On/Off

Digital I/O

No

Wireless

No

Mobile App Compatible

No

Recording

Max Multitrack Recording

8 Tracks

Power

AC Input Power

90 to 125 VAC, 50 / 60 Hz

Power Consumption

15 W

Physical

Rack Mountable

Yes

Rackmount Size

1 U

Dimensions

1.8 x 19 x 6" / 4.5 x 48.3 x 15.2 cm

Weight

6.3 lb / 2.9 kg

Packaging Info

Package Weight

6.35 lb

Box Dimensions (LxWxH)

21 x 10.5 x 3.6"
