ART USB DUAL PRE

ART USB DUAL PRE

1 / 4
ART USB DUAL PRE
2 / 4
ART USB DUAL PRE
3 / 4
ART USB DUAL PRE
4 / 4
ART USB DUAL PRE
ART USB DUAL PRE
ART USB DUAL PRE
ART USB DUAL PRE
ART USB DUAL PRE
$188.57 SGD
$188.57 SGD
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

In stock

Specifications

Features

  • USB Connectivity to Desktop and Laptop Computers
  • Low Noise Fully Balanced XLR and 1/4-inch TRS Combi Inputs
  • Up to 48 dB of Clean Gain n Built-in Low Noise Phantom Power Supply
  • Latency Free Monitoring Mix and Level Controls
  • Independent Channel Gain Controls
  • 1/4-inch TRS Balanced Monitor and 1/8-inch Headphone Monitor Outputs
  • Includes Audacity Recording & Production Software
  • Flexible 3-way Power from USB, External Supply, or 9 Volt Battery
  • Includes USB Cable – Everything Needed To Start Recording Today!

Technical Data

  • Frequency Response: 20 Hz – 20 kHz (+0, -1 dB)
  • THD: <0.01% @ 1 kHz
  • CMRR: >60 dB
  • Channel Separation: >75 dB
  • Signal to Noise Ratio: >90 dB (Ref 0 dBu)
  • Equivalent Input Noise: -120 dBu typical (XLR balanced, gain @ maximum)
  • Input Impedance: >300k Ohms 1/4-inch input, >4k Ohms XLR input
  • Output Impedance: 600 Ohms (balanced 1/4-inch), 50 Ohms (headphone 1/8-inch)
  • Maximum Signal Level: +6 dBu in, +10 dBu out (balanced), +4 dBu out (single ended)
  • Maximum Gain: +48 dB (balanced in-out)
  • Phantom Power: Switch selectable, +48Volts DC, filtered, current limited
  • Input Connections: XLR / 1/4-inch TRS “Combo” jack balanced or unbalanced
  • Output Connection: 1/4-inch TRS balanced, 1/8-inch TRS headphone mini jack
  • A/D-D/A: 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
  • 0.4 ms A/D latency @ 44.1 kHz
  • Computer Interface: USB 1.1 compliant, Windows 98SE/ME/2000/XP/Vista32bit,
  • Apple OS9.1/OSX computers with native USB support
  • Chassis Type: All aluminum black anodized with integral rubber sides
  • Power Requirements: 7.5-12V AC or DC @ <150mA (external) or USB bus powered
  • or 9V Battery @ 20mA typical, 50mA max. (phantom power)
  • Dimensions: 1.75inch H x 4.6inch W x 4.7inch D (44.5mm x 117mm x 119mm)
  • Weight: 1.3 lbs. (0.59 kg)

USB DUAL PRE PS

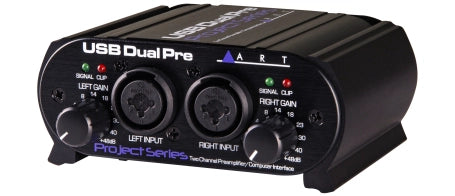

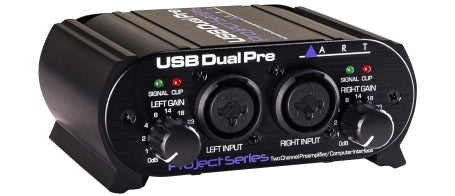

USB Dual Preamp & Computer Interface

The USB Dual Pre is a two-channel preamp and audio interface thats ready to record anywhere you find inspiration.

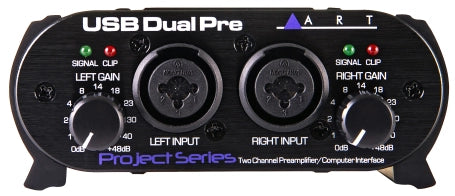

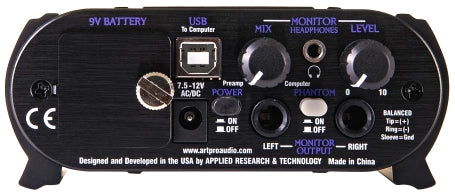

Each channel has a combo jack for XLR and 1/4 connections, and up to 48 dB of input gain to boost mic, line, and instrument-level signals. The rear panel has a phantom power switch, a level control for the 1/4 outputs and headphones, and a blend control to mix the input signals and USB playback for true zero-latency monitoring.

It can be powered by USB, a 9-volt battery, or an optional external adapter. The expected battery life is approximately 20 hours with phantom power, and over 50 hours without. Using a battery or adapter will reduce the power draw on the host device for extended recording time when tracking remotely.

Its class compliant, so no driver software is required, and the metal enclosure is compact and rugged, so the interface is portable and protected. Whether in your home studio or a mobile setup, the USB Dual Pre will capture great sound wherever you record.
