ART USB Phono Plus PS

ART USB Phono Plus PS

1 / 3
ART USB Phono Plus PS
2 / 3
ART USB Phono Plus PS
3 / 3
ART USB Phono Plus PS
ART USB Phono Plus PS
ART USB Phono Plus PS
ART USB Phono Plus PS
Regular price $189.00 SGD
Sale price $189.00 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

  • Class Compliant USB Audio Interface
  • Zero Latency Hardware Monitoring
  • Switchable Phono or Line Level Stereo RCA Input
  • S/PDIF and Optical Inputs
  • Stereo RCA, Optical, and 1/8” Headphone Outputs
  • Switchable Low Cut Filter
  • Powered by USB or External Adaptor

Technical Data

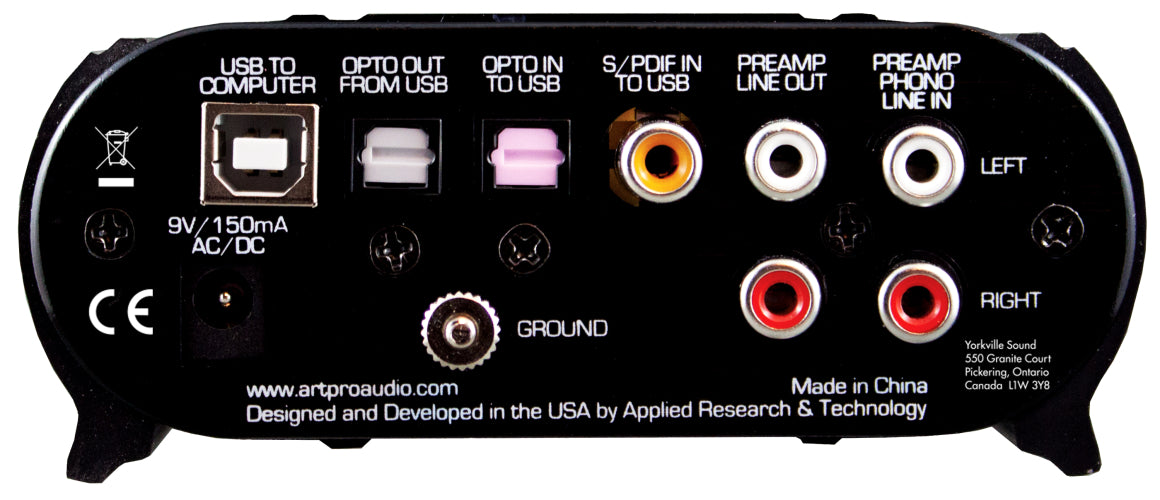

Inputs

Stereo RCA (Phono / Line)

S/PDIF, Optical

Outputs

Stereo RCA

Optical

Input Impedance

47 kΩ / 100pf (Phono)

270 kΩ (Line)

Maximum Input Level

40 mV RMS @ 1 kHz (Phono)

+19 dBu (Line)

Maximum Output Level

+6 dBu (1.4V RMS)

Maximum Gain

45 dB @ 1 kHz (Phono)

6 dB (line)

Frequency Response

10 Hz – 50 kHz (+/- 0.5%)

Total Harmonic Distortion

<0.01% Typical @ 1 kHz

Connectivity

USB (Class Compliant)

Resolution

16 Bit, 44.1 kHz or 48 kHz

Enclosure

All aluminum black anodized with integral rubber
sides

Power Requirements

USB Bus Power or Optional Adaptor

(7V – 12V DC, Any Polarity, or 9V – 12V AC)

Dimensions

1.85" x 4.6" x 4.5"

4.7 cm x 11.7 cm x 11.4 cm

Weight

1.35 lbs / 0.61 kg

Note

0 dBu = 0.775Vrms

Specifications subject to change
without notice

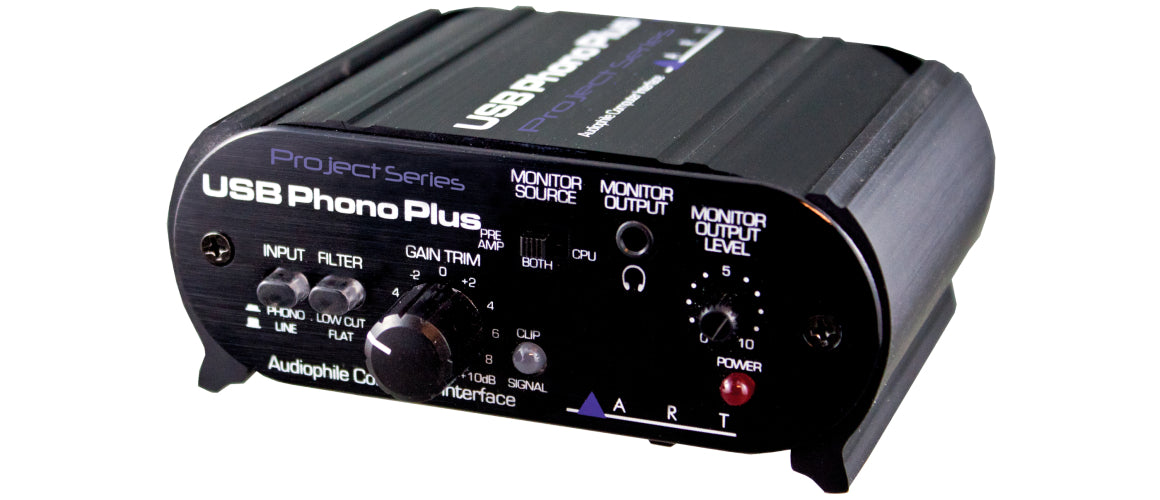

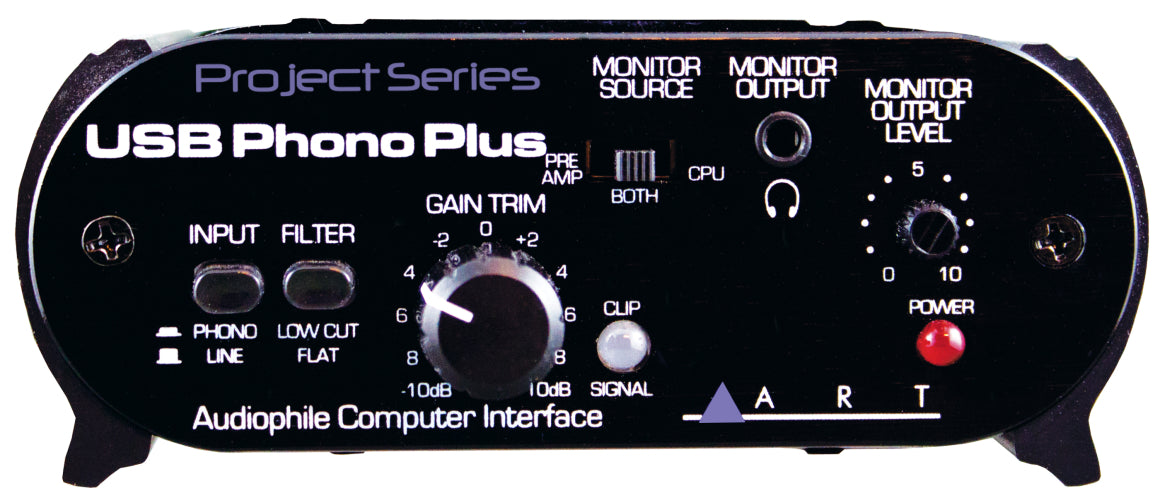

USB Phono Plus PS

Phono Preamp and Audio Interface

The USB Phono Plus is a complete hardware solution for making digital recordings from your records.

ART has decades of experience in designing phono preamps, and the USB Phono Pre offers the great sound, low noise, and essential features that have established the DJ Pre II as one of our most popular products.

It adds extended digital connectivity and an integrated USB audio interface. In addition to stereo RCA inputs and outputs, it features S/PDIF and optical inputs, plus an optical output. Connect the USB port to your computer and record better than CD-quality sound to any digital audio workstation software. The headphone output lets you monitor the preamp input, the computer playback, or both together, and has an independent level control so you can adjust your listening volume without affecting the recording.

ART knows recording and knows vinyl, and that combined expertise has produced a compact and convenient interface thats purpose-built for preserving your record collection.
