ART

ART USBDI USB Direct Box

Name: ART USBDI USB Direct Box
Brand: ART
Price: 164.59 SGD
Availability: OutOfStock

USB DI

USB Direct Box

Need to get audio from a computer to a mixer or PA? The USB DI offers high-quality digital-to-analog conversion and balanced XLR outputs, providing a pristine signal to any analog sound system.

Custom output transformers isolate the digital and analog elements, eliminating ground loops and system noise.

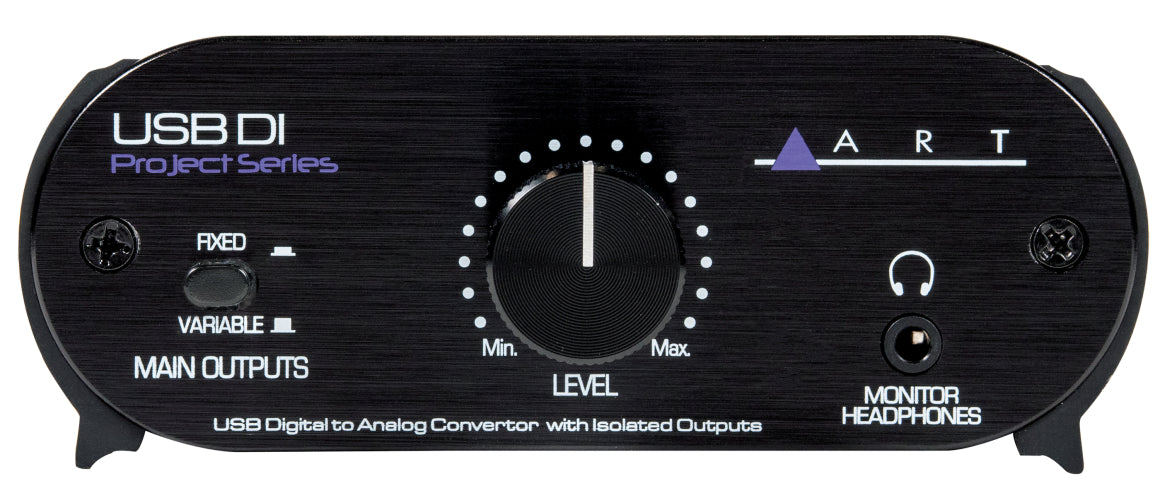

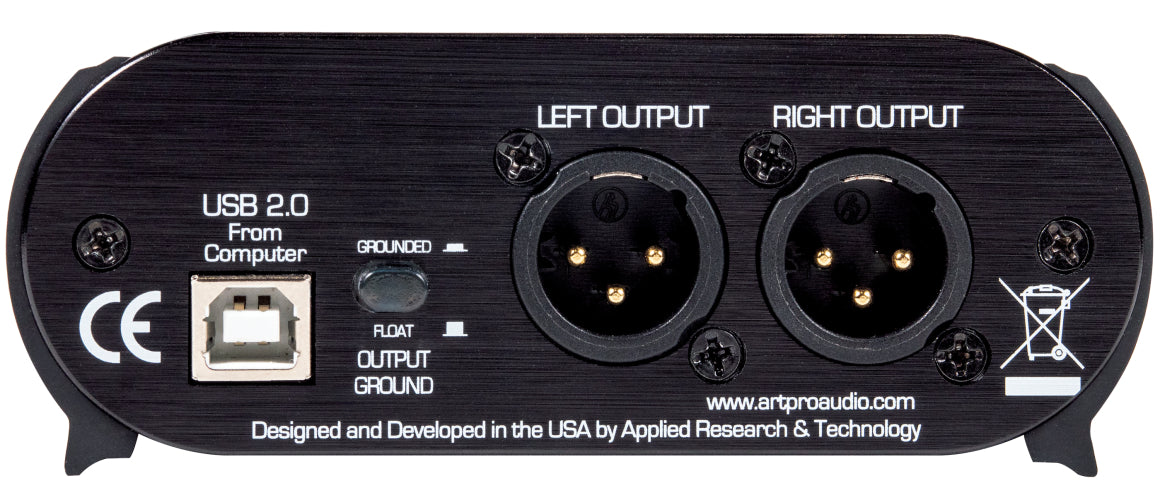

A front panel switch selects between a fixed volume at the main outputs or variable adjustment with the Level knob, which also controls the headphone output. A ground lift switch on the rear panel engages an extra layer of hum protection.

The USB DI is class-compliant and bus-powered, so it doesn’t require driver software or an external power supply.

Looking to connect Bluetooth® audio? Check out the BT-DI.

View full details

All Categories ART

ART USBDI USB Direct Box

1 / 5

2 / 5

3 / 5

4 / 5

5 / 5

❮ ❯

USB DI

USB Direct Box

Need to get audio from a computer to a mixer or PA? The USB DI offers high-quality digital-to-analog conversion and balanced XLR outputs, providing a pristine signal to any analog sound system.

Custom output transformers isolate the digital and analog elements, eliminating ground loops and system noise.

The USB DI is class-compliant and bus-powered, so it doesn’t require driver software or an external power supply.

Looking to connect Bluetooth® audio? Check out the BT-DI.

$164.59 SGD

Sale Sold out

Taxes included.

The shipping costs are calculated on the checkout page.

Quantity

Specifications

USB 2.0 Connection
Supports 32 kHz, 44.1 kHz, and 48 kHz Sample Rates
Transformer-Isolated XLR Outputs
Fixed or Variable Main Output Level
Level Control Adjusts Monitor or Main + Monitor Volume
Switchable Ground Lift
Class Compliant
Bus Powered

Technical Data

Active or Passive

Active

Inputs

USB 2.0 (Type B Connector)

Outputs

2x XLR

1x 1/8" TRS Headphone

Maximum Output Level

+.75 dBu (Variable Output Mode)

-1.5 dBu (Fixed Output Mode)

Controls

Fixed / Variable Output, Level, Ground Lift

Frequency Response

20 Hz - 20 kHz +/- dB

Supported Sample Rates

32 kHz, 44.1 kHz, 48 kHz

Dynamic Range

96 dB A-Weighted (Typical)

Total Harmonic Distortion

<0.02% (Typical)

Power Requirements

USB Bus Powered, 500 mA Max

Dimensions (HWD)

1.87" x 4.61" x 4.27" (4.75 cm x
11.7 cm x 10.8 cm)

Weight

1.89 lbs / .86 kg (Packaged)

Specifications subject to change
without notice

USB DI

USB Direct Box

Need to get audio from a computer to a mixer or PA? The USB DI offers high-quality digital-to-analog conversion and balanced XLR outputs, providing a pristine signal to any analog sound system.

Custom output transformers isolate the digital and analog elements, eliminating ground loops and system noise.

The USB DI is class-compliant and bus-powered, so it doesn’t require driver software or an external power supply.

Looking to connect Bluetooth® audio? Check out the BT-DI.
