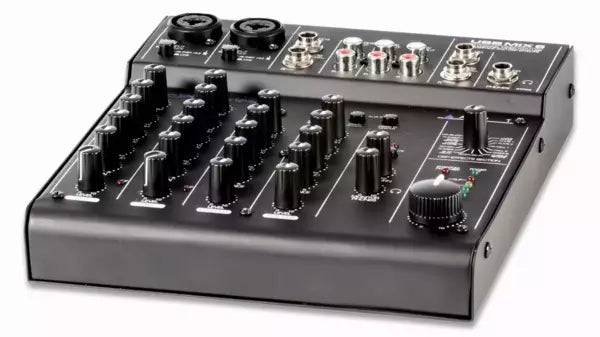

Main Features

• High-performance, low-noise design
• Six discrete inputs (2 x Mic / 2 x Stereo Line Level)

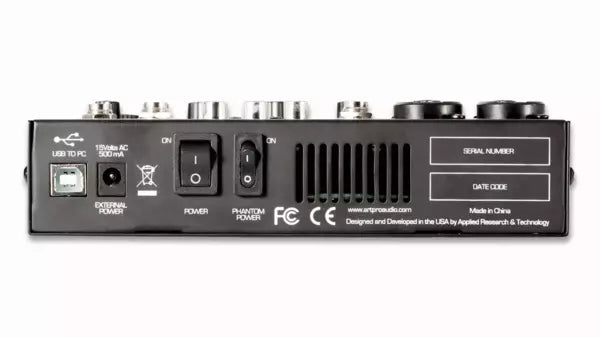

• Switchable +48v phantom power (CH1 and CH2)
• Treble and bass equalizer on each input channel
• Integrated stereo Multi-FX with adjustable outs and returns
• Stereo LED meter
• Independent level controls for main and headphone/monitor outputs
• Integrated, class-compliant Plug-and-Play USB audio devices for Mac and PC

Input connectors

XLR & ¼-″ Balanced Combi-jack (CH 1 & CH2)

¼-″ TRS Balanced (CH3 & CH4)

RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L&R)

Output connectors

¼-″ TRS Balanced Main Mix Outputs

¼-″ TRS Stereo Output & Monitor Outputs

RCA Loop Out (L & R)

S/N Ratio

>90dB Typical (Ref 0dBu)

Maximum input level

+4dBu (Mic), +20dBu (1/4-″ Input)

Maximum output level

+15dBu Main Mix OutputsMaximum Boost

>54dB (Mic), >39dB (Instrument), 10dB (Stereo Monitor & Line Out)

USB Computer Interface

USB Class Compliant plug-and-play Mac/PC Interface

Power supply

15VAC @ 500mA (power supply included)

Dimensions

47mm x 186mm x 215mm

Libra

1.47 kg
