DOUBLE RIBBON MICROPHONE
for miking string instruments and guitar amps

Beyerdynamic is one of few microphone manufacturers world-wide that still produce ribbon microphones. A classic one is the M 160, a dynamic double ribbon microphone. Featuring a hypercardioid polar pattern with a noise attenuation of 25 dB at 110°, the M 160 is an outstanding microphone which is very effective for all types of remote and in-studio voice reproduction.

APPLICATION
The M 160 is ideal for miking string instruments such as violins, violas, cellos and guitars as well as for guitar amps.

DOUBLE RIBBON MICROPHONE

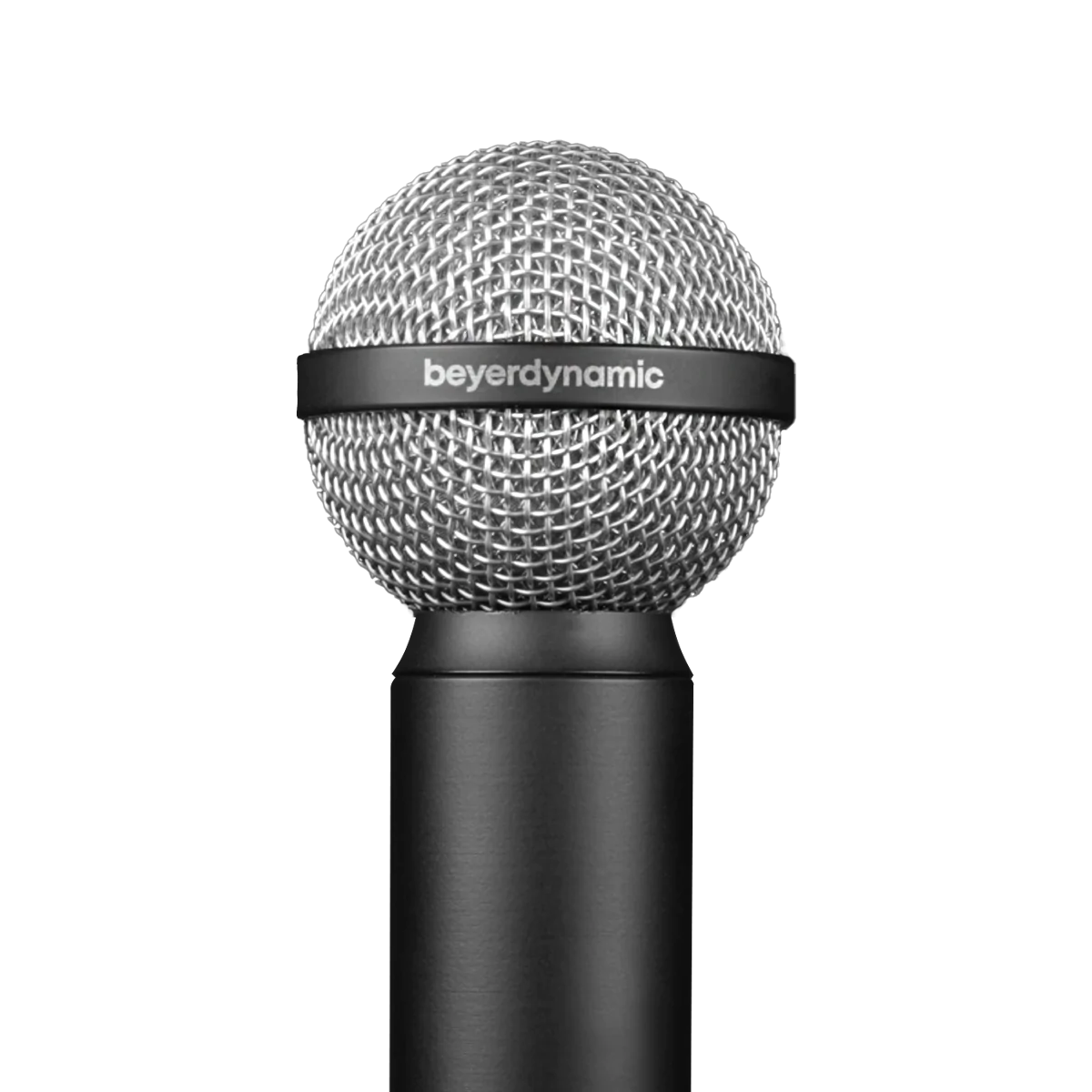

Two overlaying, paper-thin ribbons ensure a high output level.

DIRECTED RIBBON
The M 160 is one of the few ribbon microphones with a hypercardioid polar pattern. Most ribbon microphones are figure-eight.

COMPACT AND RUGGED CONSTRUCTION
The compact and rugged construction allows the unobtrusive use on stage.

Features:

For miking string instruments and guitar amps

Warm and natural sound

Hypercardiod polar pattern

Extended frequency response

Excellent transparency

Specifications:

Transducer type: Dynamic

Operating principle: Pressure gradient

Frequency response: 40 - 18,000 Hz

Polar pattern: Hypercardioid

Rear attenuation at 1 kHz: > 25 dB at 110°

Open circuit voltage at 1 kHz (0 dB = 1 V/Pa): 1.0 mV/Pa = -60 dBV

Nominal impedance: 200 Ω

Load impedance: ≥ 1000 Ω

Diaphragm: Pure aluminium

Case/finish: Brass

Connector: 3-pin XLR male

Dimensions: Length: 156 mm

Shaft diameter: 23 mm

Head diameter: 38 mm

Weight without cable: 156 g

Transducer Type

Double-Ribbon

Polar Pattern

Hypercardioid

Article No.

730165

EAN-4010118730160

Microphone Frequency Response

40 - 18,000

HzConnection Type

XLR 3-pin
