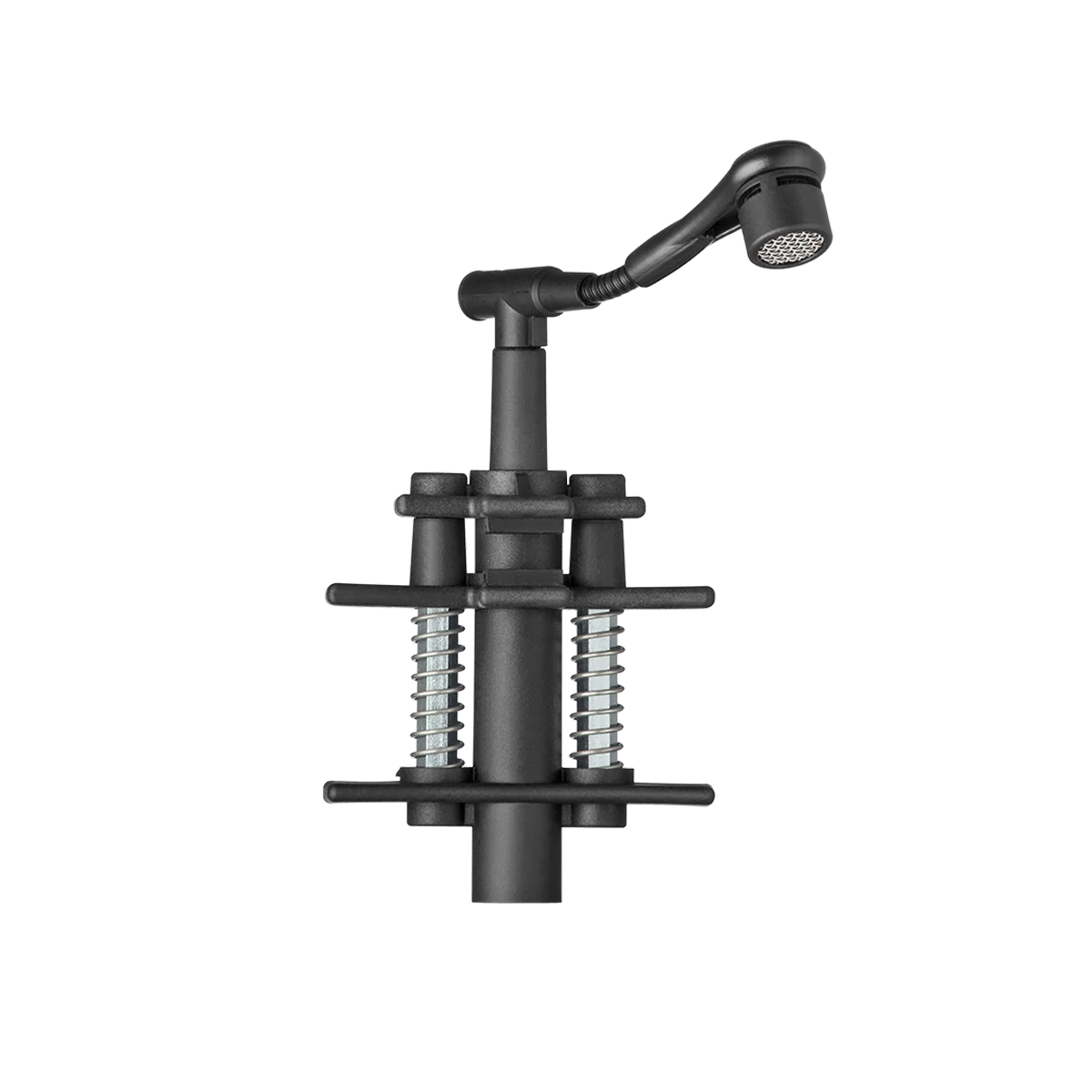

Condenser drum microphone (cardioid)

Clip microphone for toms, snare drums and percussions

Low space needs and easy installation

Optimal placement thanks to a swivel gooseneck

Microphone clip with an integrated pre-amplifier

Made in Germany

Transducer type: Condenser (back electret)

Operating principle: Pressure gradient

Polar pattern: Cardioid

Frequency response

Close miking: 20 - 20,000 Hz

Distant miking (measured at 1 m): 35 - 20,000 Hz

Open circuit voltage: 5 mV/Pa (-46 dBV) ±2.5 dB

Nominal impedance: 200 Ω

Load impedance: ≥ 1 kΩ

Max. SPL

at 24 V and 48 V phantom power: 140 dB

S/N ratio: 59 dB [CCIR; Q-Peak], 70 dB [A; RMS]

Equivalent SPL: 35 dB [CCIR; Q-Peak], 24 dB [A; RMS]

Power supply: Phantom power: 12 - 48 V (recommended: 48 V)

Power consumption: 4.7 mA

Connection : 3-pin XLR, male

Dimensions

Clamp (W x H): 85 x 118 mm

Gooseneck length: 20 mm

Weight: Approx. 140 g
