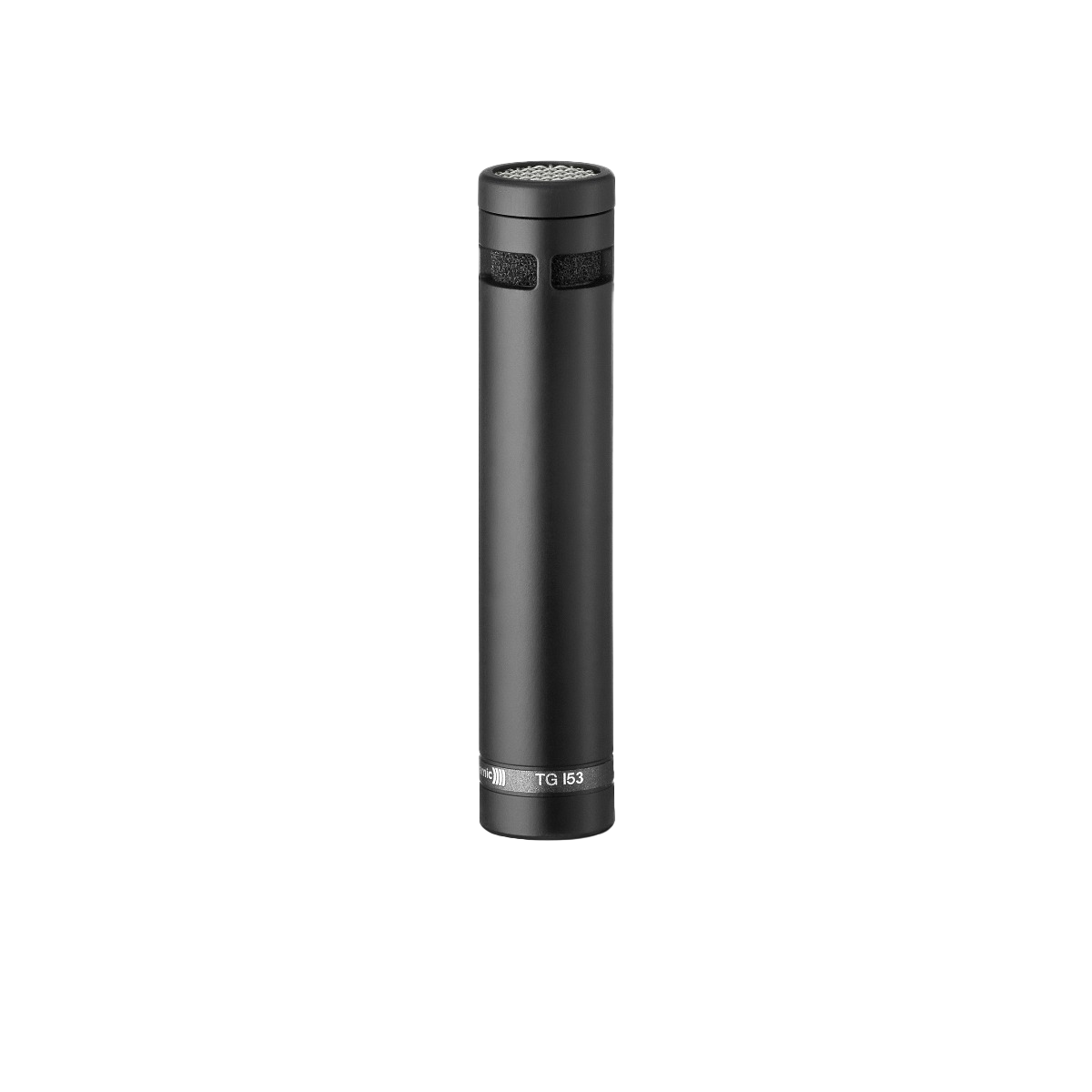

Beyerdynamic TG I53C Small Diaphragm Condenser Microphone Overview:

From hi-hat and overhead via percussion, side and wind instruments to choral recording - the condenser microphone stands out everywhere with its slight increase in height and excellent detail reproduction. Thanks to the high sensitivity, it is also suitable for larger microphone distances, for example, in large bodies with complex radiation characteristics.

Another advantage: The carbon fiber reinforced housing makes it lightweight and robust at the same time.

Sound Channeling Technology:

Optimally positioned height resonator for improved treble reproduction

Another height resonator within the system

Special sound openings for a frequency-independent directional characteristic

Features:

Cardioid polar pattern

High SPL capability

Casing strengthenend with carbon fibres

Rugged construction

Slim design

Transducer type : Condenser (back electret)

Operating principle: Pressure gradient

Polar pattern: Cardioid

Frequency response

Close miking: 20 - 20,000 Hz

Distant miking (measured at 1 m): 35 - 20,000 Hz

Open circuit voltage : 6.8 mV/Pa (-43.4 dBV), ±2.5 dB

Nominal impedance: 200 Ω

Load impedance: ≥ 1 kΩ

Max. SPL at 24 V and 48 V phantom power: 140 dB

S/N ratio: 61 dB [CCIR; Q-Peak], 71 dB [A; RMS]

Equivalent SPL: 23 dB [A; RMS], 33 dB [CCIR; Q-Peak]

Power supply: Phantom power: 12 - 48 V (recommended: 48 V)

Power consumption: 4.7 mA

Connection: 3-pin XLR, male

Dimensions: 100 x 19.5 mm

Weight (without clamp): 36 g
