• 0.75 “soft-dome tweeter for detailed response and a high-resolution sound
• Proprietary integrated elliptical waveguide with accurate directivity control
• Long-excursion 5.25” woofer with lightweight fiber-glass composite cone
• Precisely calculated front tuning port for greater low-frequency extension
• Multiple audio input connectors for connecting any kind of source
• HF adjustment for a flexible control of high frequency
• Sophisticated, carefully designed crossover filters an improved resolution
• High-headroom Class AB 25+45W amplifiers with dual accurate CLIP LIMITER

System type

2-way vented enclosure

High Frequency Device

0.75 “ dome tweeter on elliptical waveguide

Low Frequency Device

5.25” woofer with fiberglass reinforced cone

Angular Coverage

90° H x 60° V

HF Amplifier Continuous Power

25W Class AB

LF Amplifier Continuous Power

45W Class AB

Processing

Analog

Frequency Response

55 Hz - 20 kHz

Max SPL

104 dB

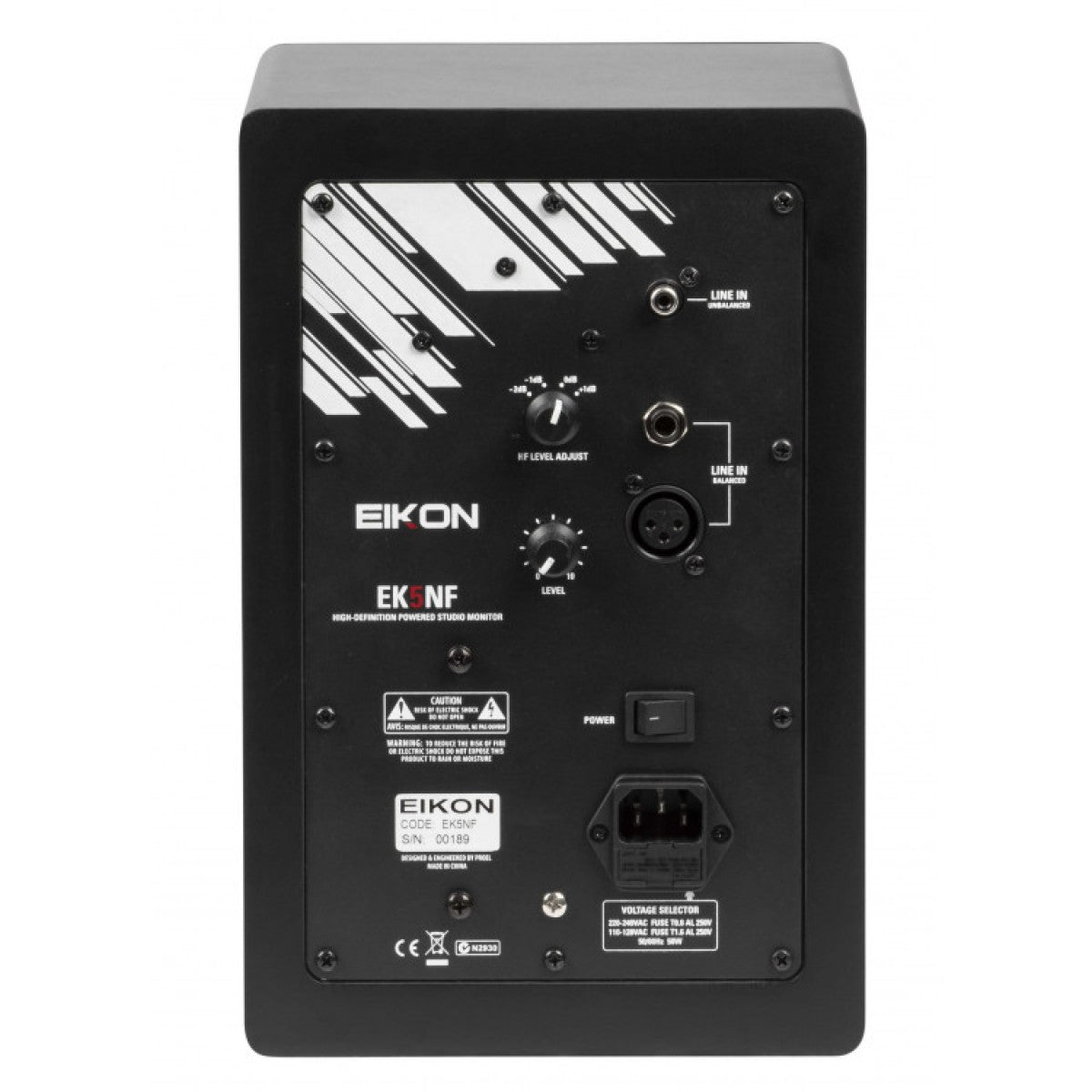

Connectors

1/4” JACK, XLR-F, RCA

Controls

LEVEL, HF ADJUST

Construction

Vinyl laminated MDF cabinet with ABS front

Cabinet Colour

Black

Power Supply

230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector

Dimensions (W x H x D)

185 x 285 x 230 mm

Weight

5 kg
