Eikon EKJMA UHF Wireless Jack & Microphone System

Eikon EKJMA UHF Wireless Jack & Microphone System

1 / 4
Eikon EKJMA UHF Wireless Jack & Microphone System
2 / 4
Eikon EKJMA UHF Wireless Jack & Microphone System
3 / 4
Eikon EKJMA UHF Wireless Jack & Microphone System
4 / 4
Eikon EKJMA UHF Wireless Jack & Microphone System
Eikon EKJMA UHF Wireless Jack & Microphone System
Eikon EKJMA UHF Wireless Jack & Microphone System
Eikon EKJMA UHF Wireless Jack & Microphone System
Eikon EKJMA UHF Wireless Jack & Microphone System
$99.00 SGD
$99.00 SGD
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Technical Data

EKJ&M– UHF PLL 16 Channel Transmitter

RF Channels

16 frequency presets

RF Frequency Band

UHF: 863-865 MHz

RF Frequency Stability

±0,002%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Output Power

10mW

Sub-harmonic

< 40 dB

Operating current

130 mA

Operating Time

5 to 8 hrs (depending on volume level)

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

5 hours

Weight

0.30 Kg





EKJ&M
–UHF PLL 16 Channels Receiver

RF
Channels

16
frequency presets

RF
Frequency Band

UHF:
863-865 MHz

RF
Frequency Stability

±0,005%

RF
Oscillation Mode

Quartz
locked

RF
Modulation Type

Wideband
FM Stereo

RF
Receiving Sensitivity

<
-98 dBm

RF
Receiving range

15 to
30 meters depending on used band conditions

Audio
dynamic range

106 dBm

THD
Distortion

<
0.5%

S/N
Ratio

>
102 dBA

Audio
output connector

6.3 mm
Mono Jack

Output
Power Max (continuous)

400 mW

Operating
current

80 mA

Operating
Time

5 hours

Operating
Power Supply

3.7 V /
500 mA - built-in Lithium battery

Charging
mode

USB
charging 5V – type USB mini connector

Charging
time

3 hours

Weight

0.05 Kg



EKJ&MA
– UHF PLL 50 Channel Transmitter

RF
Channels

50
frequency presets

RF
Frequency Band

UHF:
512 – 541,7 MHz

RF
Frequency Stability

±0,002%

RF
Oscillation Mode

Quartz
locked

RF
Modulation Type

Wideband
FM Stereo

RF
Output Power

10mW

Sub-harmonic

< 40
dB

Operating
current

130 mA

Operating
Time

5 to 8
hrs (depending on volume level)

Operating
Power Supply

3.7 V /
500 mA - built-in Lithium battery

Charging
mode

USB
charging 5V – type USB mini connector

Charging
time

5 hours

Weight

0.30 Kg





EKJ&MA
–UHF PLL 50 Channels Receiver

RF
Channels

50
frequency presets

RF
Frequency Band

UHF:
512 – 541,7 MHz

RF
Frequency Stability

±0,005%

RF
Oscillation Mode

Quartz
locked

RF
Modulation Type

Wideband
FM Stereo

RF
Receiving Sensitivity

<
-98 dBm

RF
Receiving range

15 to
30 meters depending on used band conditions

Audio
dynamic range

106 dBm

THD
Distortion

<
0.5%

S/N
Ratio

>
102 dBA

Audio
output connector

6.3 mm
Mono Jack

Output
Power Max (continuous)

400 mW

Operating
current

80 mA

Operating
Time

5 hours

Operating
Power Supply

3.7 V /
500 mA - built-in Lithium battery

Charging
mode

USB
charging 5V – type USB mini connector

Charging
time

3 hours

Weight

0.05 Kg

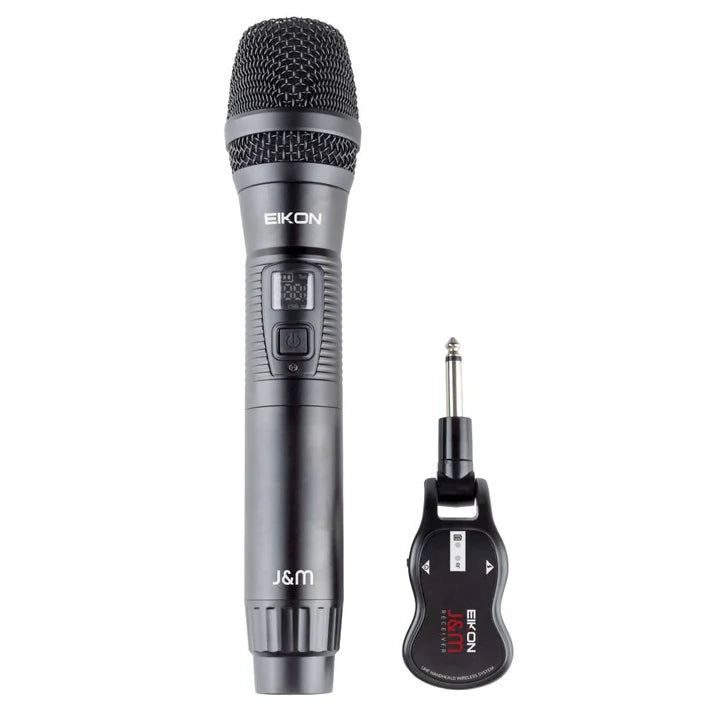

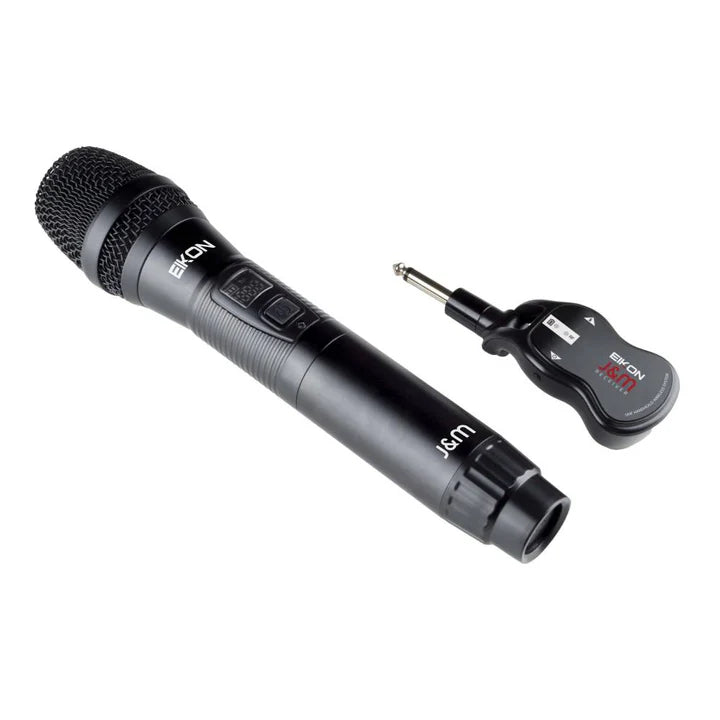

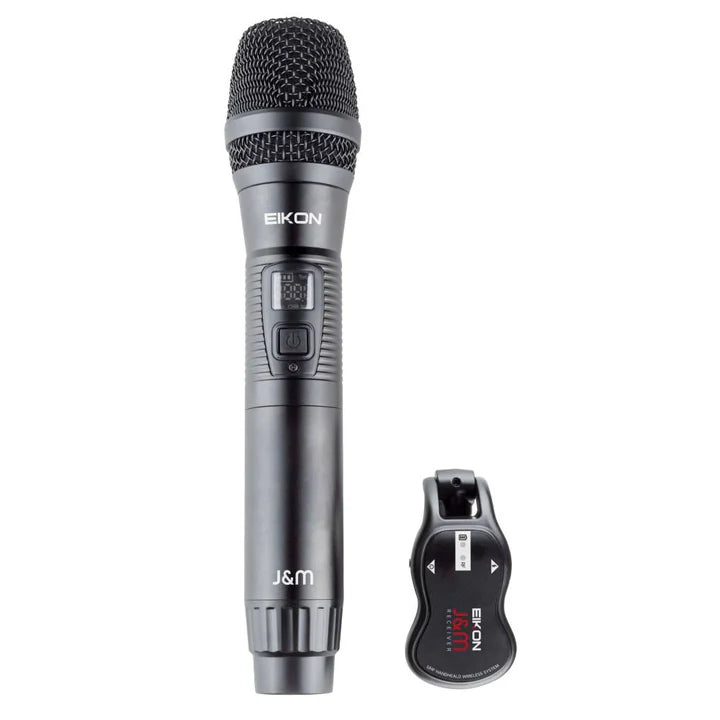

EKJ&M is a UHF wireless microphone system that provides high quality and reliable signal transmission. EKJ&M comes with 3 units: EKJ&M portable transmitter, EKJ&M "connector format" compact receiver and USB to USB-C charging cable.

  • UHF 512 – 541,7 MHz frequency band
  • Quartz locked modulation mode
  • Up to 30 meters range
  • Built in 3.7V/500mA lithium battery
  • 5V USB charging cable included
  • Up to 5 hours autonomy
  • Up to 6 systems usable in the same location
