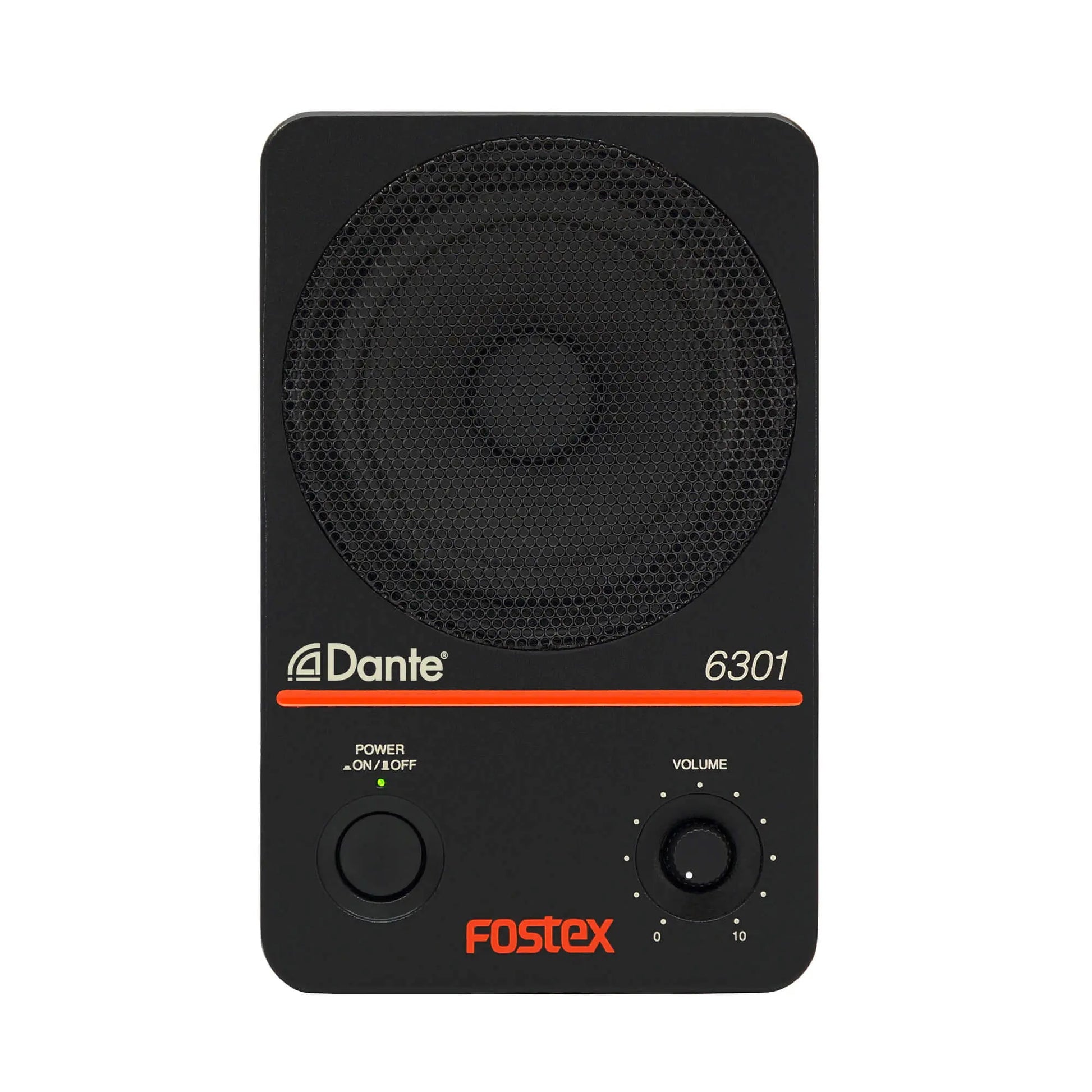

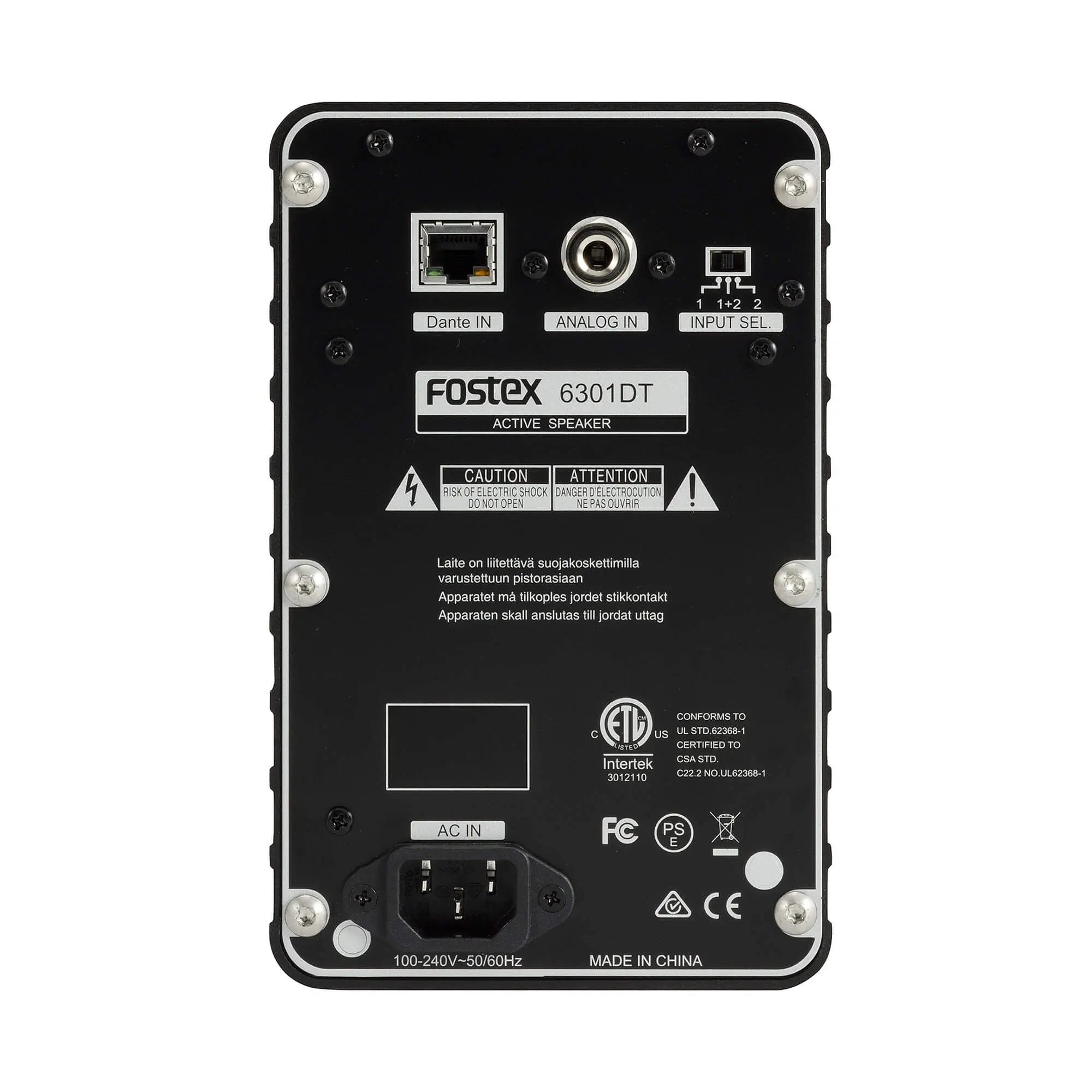

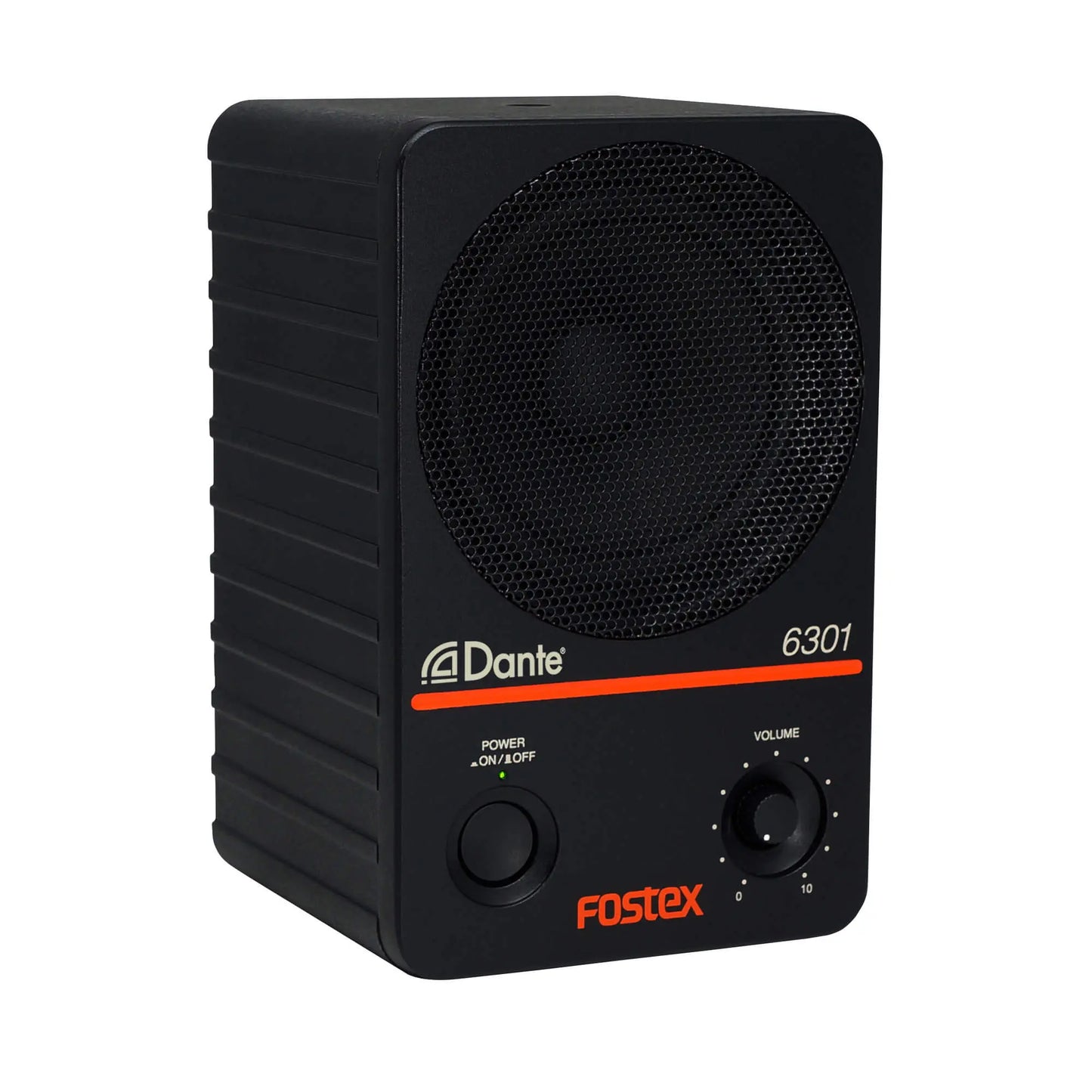

Fostex 6301DT Active Speaker

Name: Fostex 6301DT Active Speaker
Brand: Fostex
Price: 978.00 SGD
Availability: OutOfStock

The 6301 series of compact active loudspeakers, which have been used for more than 30 years in broadcast facilities and small-scale loudspeakers, is now available in a model compatible with the Dante®* audio network standard.

Features

The compact design common to all series allows for space-saving installation.

Cone-type full-range speakers are used to achieve stable sound.

●Rugged die-cast aluminum enclosure is used.

Flat design with minimal protrusion of switches and knobs to prevent damage even in the event of a fall.

●Switching power supply circuitry compatible with 100 VAC to 240 VAC power supplies.

The product warranty is limited to use in Japan.

Either or both of the 2-channel digital signals extracted from the Dante® network signal can be output.

●Incorporates Dante® Ultimo chip. Supported sampling frequencies: 44.1/48/88.2/96 kHz

●An optional wall-mounting angle (EB-6301) allows for angle adjustment and wall mounting.

Dante® is a registered trademark of Audinate, Inc.

View full details

All Categories Fostex

Fostex 6301DT Active Speaker

1 / 3

2 / 3

3 / 3

❮ ❯

Features

The compact design common to all series allows for space-saving installation.

Cone-type full-range speakers are used to achieve stable sound.

●Rugged die-cast aluminum enclosure is used.

Flat design with minimal protrusion of switches and knobs to prevent damage even in the event of a fall.

●Switching power supply circuitry compatible with 100 VAC to 240 VAC power supplies.

The product warranty is limited to use in Japan.

Either or both of the 2-channel digital signals extracted from the Dante® network signal can be output.

●Incorporates Dante® Ultimo chip. Supported sampling frequencies: 44.1/48/88.2/96 kHz

●An optional wall-mounting angle (EB-6301) allows for angle adjustment and wall mounting.

Dante® is a registered trademark of Audinate, Inc.

$978.00 SGD

Sale Sold out

Taxes included.

The shipping costs are calculated on the checkout page.

Quantity

Specifications

Technical Data

Speaker section

Enclosure type

Closed type (Material: Aluminum die-cast)

Unit

Cone type 10cm full range unit x 1

Frequency response

70Hz to 15kHz

Sound Pressure Level

85dB/W(1m)

Maximum Sound Pressure Level

98 dB

Amplifier sectionRated output

20W

Input connector

Analog unbalanced/Φ6.3 mm (1/4″) TS phone, Dante/RJ45 (CAT5e or better)

T.H.D.

0.05 % (at 1 kHz 1 W output)

Residual noise

-65 dBV

generalExternal Dimensions

120(W)×189(H)×120(D)mm *including maximum projection

Weight

Approx. 2.3 kg

Power requirement

AC 100 V to 240 V, 50/60 Hz

Power consumption

10 W *This product does not have an auto-standby function.

Accessories

Power cord (approx. 2 m) × 1

Features

The compact design common to all series allows for space-saving installation.

Cone-type full-range speakers are used to achieve stable sound.

●Rugged die-cast aluminum enclosure is used.

Flat design with minimal protrusion of switches and knobs to prevent damage even in the event of a fall.

●Switching power supply circuitry compatible with 100 VAC to 240 VAC power supplies.

The product warranty is limited to use in Japan.

Either or both of the 2-channel digital signals extracted from the Dante® network signal can be output.

●Incorporates Dante® Ultimo chip. Supported sampling frequencies: 44.1/48/88.2/96 kHz

●An optional wall-mounting angle (EB-6301) allows for angle adjustment and wall mounting.

Dante® is a registered trademark of Audinate, Inc.
