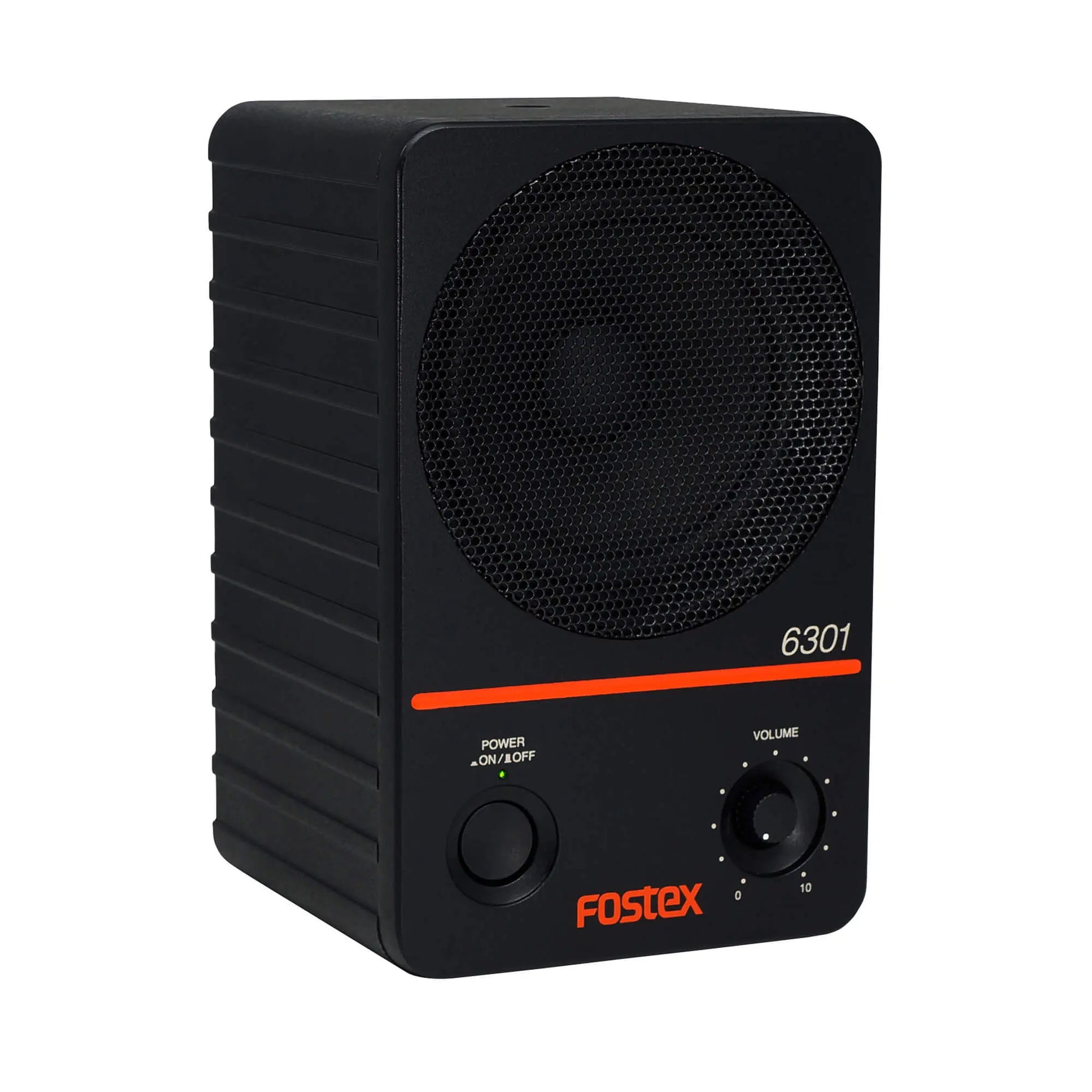

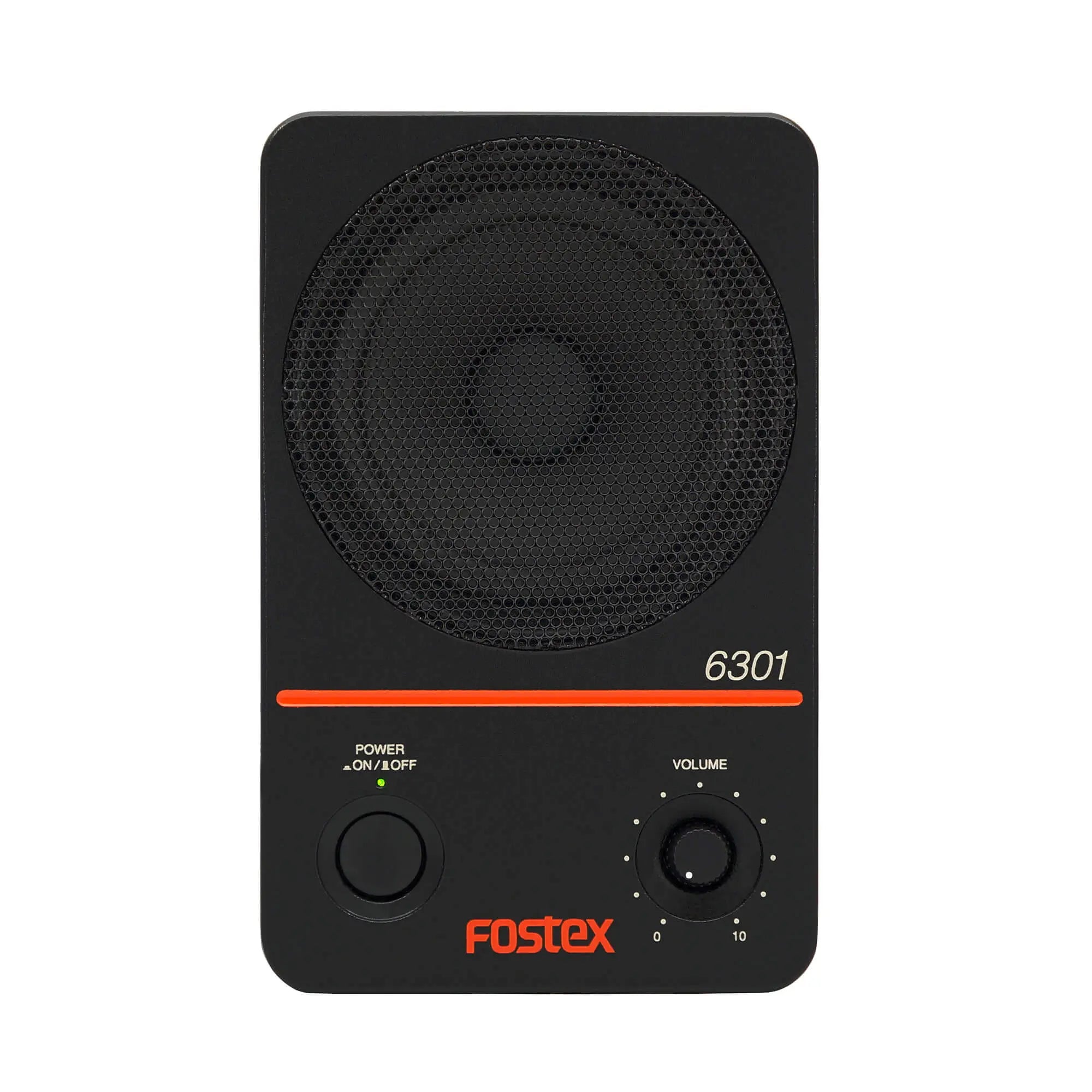

● Monitor speaker with built-in amplifier for use in various audio monitoring and small-scale loudspeaker applications.

Cone-type 10cm full-range speakers are used to achieve stable sound.

Built-in power amplifier with a rated output of 20W delivers stable sound even in a small package.

All models are equipped with a Class-D (PWM) power amplifier. Compared to the previous model (6301B-H series), power consumption has been reduced while the rated output has been increased from 10W to 20W. The eco-friendly design includes a standby mode (compliant with Europe’s ErP Directive).

In the standby mode, power consumption is reduced to 0.5W or less after the input signal level remains below a certain level for about 25 minutes. When the input signal level exceeds a certain level, the unit instantly returns from standby mode to normal mode.

The playback frequency bandwidth is extended from 80 to 13,000 Hz in the previous model to 70 to 15,000 Hz.

The power cable is an inlet type.

The power cable is an inlet type. *The product warranty is applicable only when the product is used in Japan.

The same width and height as the previous model (6301B-H series) are adopted, allowing replacement without changing the installation location.

● Robust die-cast aluminum enclosure is used.

Four models with different input specifications are available for different applications.

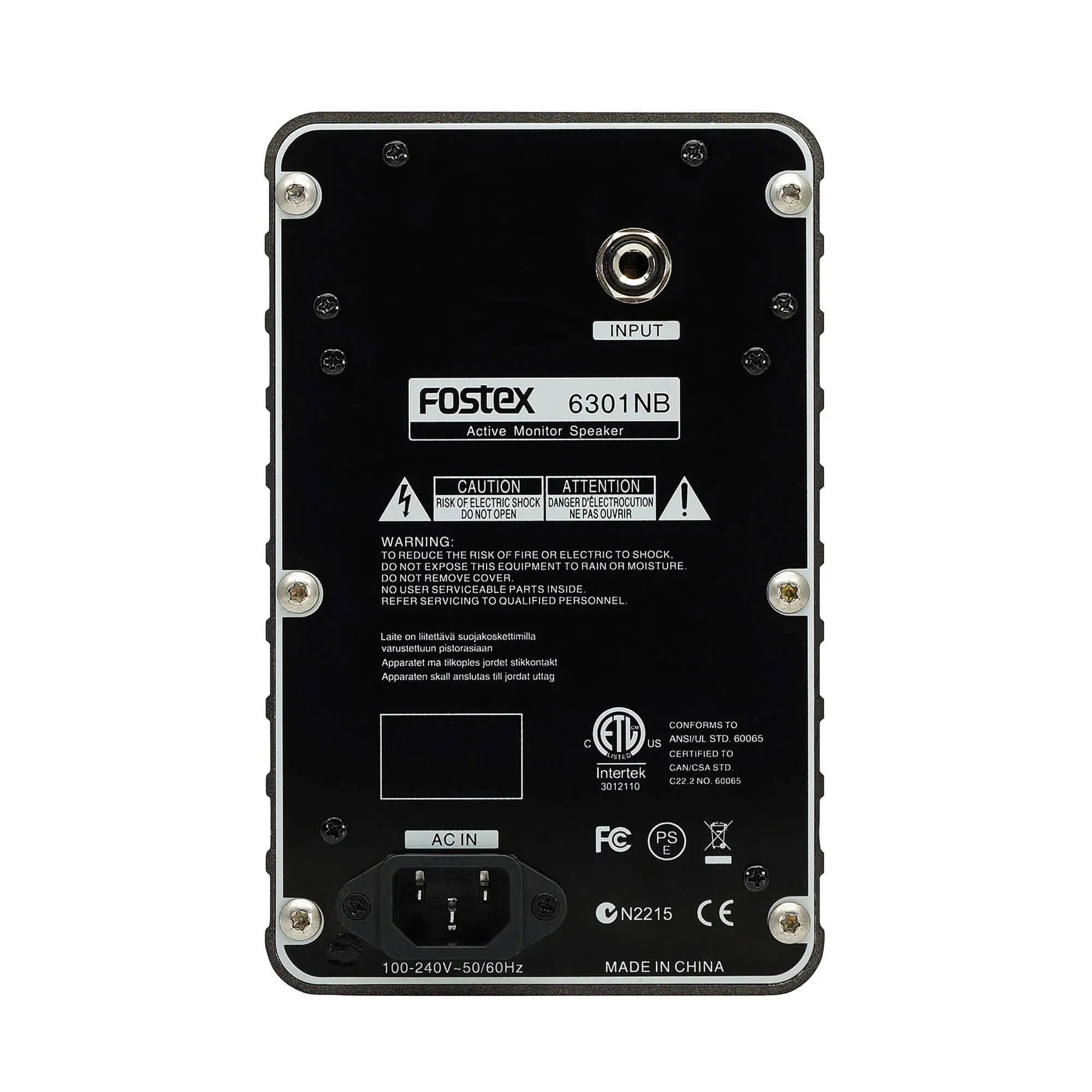

6301NB】

Equipped with unbalanced analog input.
【6301NE】

Equipped with balanced analog input (electronically balanced) and unbalanced analog input.
6301NX

Equipped with balanced analog input (transformer type) and unbalanced analog input.
6301ND

Equipped with AES/EBU digital input/through output and unbalanced analog input.

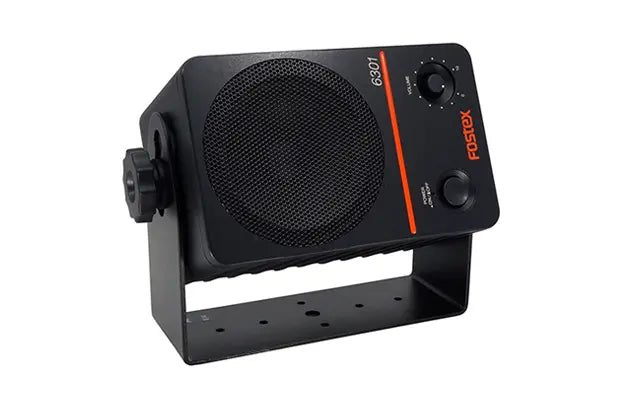

Wall mounting and angle adjustment are possible by using the optional EB-6301 wall mounting angle.
