Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black

Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black

1 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
2 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
3 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
4 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
5 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
6 / 6
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Neumann TLM 107 Studio Set Large-diaphragm Condenser Microphone Black
Regular price $2,069.91 SGD
Sale price $2,069.91 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Features at a Glance

State of the art, yet affordable large-diaphragm microphone

Versatile studio workhorse for vocals and instruments

Dual-diaphragm condenser capsule

Five polar patterns and multiple pad and low-cut options

Transformerless circuitry for ultra-transparent sound

Extremely low self-noise

Distortion-free, even at highest sound pressure levels

XLR 3-pin output connector

48V phantom powered

Includes color-matched shockmount for inhibition of vibration noise and added visual appeal

Technical Data

Element Type

Condenser

Polar Pattern

Cardioid / Figure-8 / Hypercardioid / Omnidirectional /
Subcardioid/Wide Cardioid

Controls

Polar Pattern, Pad, Low Cut/HPF

Frequency Response

20 Hz to 20 kHz

Maximum SPL

141 dB (.5% THD)

153 dB (.5% THD, with Pad)

Analog Output

1x XLR 3-Pin Male

Power Sources

Phantom Power

Microphone

Sound Field

Mono

Element Type

Condenser

Polar Pattern

Cardioid / Figure-8 / Hypercardioid / Omnidirectional /
Subcardioid/Wide Cardioid

Orientation

Side Address

Circuitry

Solid-State

Pad

-6 / -12 dB

High-Pass Filter

40 Hz

100 Hz

Filter & EQ

Low-Cut Filter: 40 Hz / 100 Hz

Controls

Polar Pattern, Pad, Low Cut/HPF

Performance

Frequency Response

20 Hz to 20 kHz

Maximum SPL

141 dB (.5% THD)

153 dB (.5% THD, with Pad)

Sensitivity

11 mV/Pa (at 1 kHz into 1 Kilohm)

Dynamic Range

131 dB

Equivalent Noise Level

10 dB (A-Weighted)

22 dB (CCIR)

Connectivity

Analog Output

1x XLR 3-Pin Male

Power

Power Sources

Phantom Power

Operating Voltage

48 V (Phantom Power)

Physical

Color

Black

Mounting Thread Size

5/8"-27 Female

Dimensions

ø: 2.5 x L: 5.7" / ø: 6.4 x L: 14.5 cm

Weight

15.7 oz / 445 g

Packaging Info

Package Weight

2.635 lb

Box Dimensions (LxWxH)

11 x 7 x 4.2"



Bundled with a color-matched, vibration-reducing shockmount, the black Neumann TLM 107 Studio Set BK large-diaphragm multipattern condenser microphone brings renowned Neumann sound quality and immense versatility to a price point that's accessible to music creators and engineers working in project studios and home recording setups. The dual-diaphragm capsule—specially developed for the TLM 107—offers a balanced tone that's consistent across its five selectable polar patterns, making the mic a great choice for capturing vocals and instruments without coloration.
A single control on the rear of the mic is used to change the polar pattern, pad (-6 or -12 dB), and low-cut filter (40 or 100 Hz). With the -12 dB pad engaged, the TLM 107 can be used on sound sources up to 153 dB for recording percussion, drums, amplifiers, and other loud instruments clearly and without distortion. A treble boost above 8 kHz helps the mic maintain detail and articulation while avoiding pronounced sibilance. Thanks in part to the transformerless circuitry, the TLM 107 yields only 10 dBA of self-noise, further enhancing its transparent nature.



Pro-Level Accuracy for Home Studios
The TLM 107 offers true high-definition sound quality at an affordable price. Neumann developed this microphone for project and home studio users who prefer to capture an uncolored sound image, true to the original source, in order to retain all options for post processing and mixing. The TLM 107, in turn, offers all the flexibility required to make a high-quality recording of any source in any situation.
Updated Looks and Controls

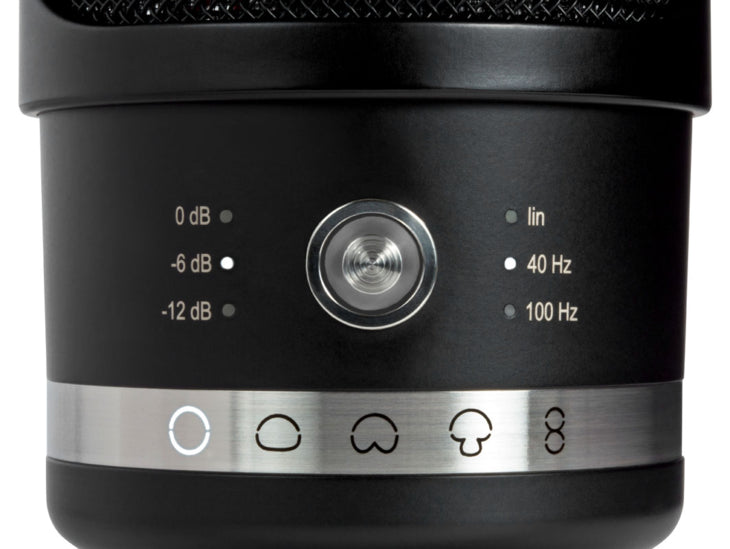

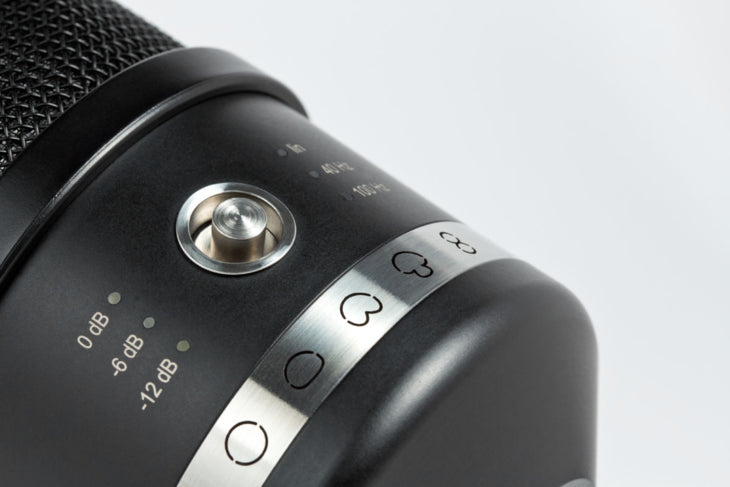

Neumann decided to give the TLM 107 an updated look, although the large, tapered headgrille does echo the iconic design of such Neumann classics as the M 49 tube microphone. The stylish navigation toggle on the back of the microphone is a joy to use as it controls all settings in one place: pad (0, -6, or -12 dB), low-cut filter (linear, 40 Hz, or 100 Hz), and polar patterns (omnidirectional, wide cardioid, cardioid, hypercardioid, or figure-8).
Dual-Diaphragm Capsule
The newly developed dual-diaphragm condenser capsule is specially designed for the TLM 107 to offer outstanding transient response and an extended, carefully balanced frequency response for all polar patterns. This means you can adjust the directional pattern according to the recording situation without affecting the overall sound balance, which is quite uncommon for a large-diaphragm microphone.
Neumann Engineering
As a member of Neumann's TLM series, the TLM 107 operates with a transformerless circuit ensuring an open, transparent sound and a full, unrestricted bass transmission, even at highest levels. Two low-cut settings are available to reduce rumble and compensate for the proximity effect in close-miking situations. Even without engaging the two pad settings, the TLM 107 can handle enormous sound pressure levels of up to 141 dB without clipping (up to 153 dB with preattenuation). The TLM 107 has a self-noise of only 10 dBA, which is much lower than the ambient noise in a very quiet recording studio. In other words, the TLM 107 will add neither noise nor unwanted distortion to your recordings.
