Features

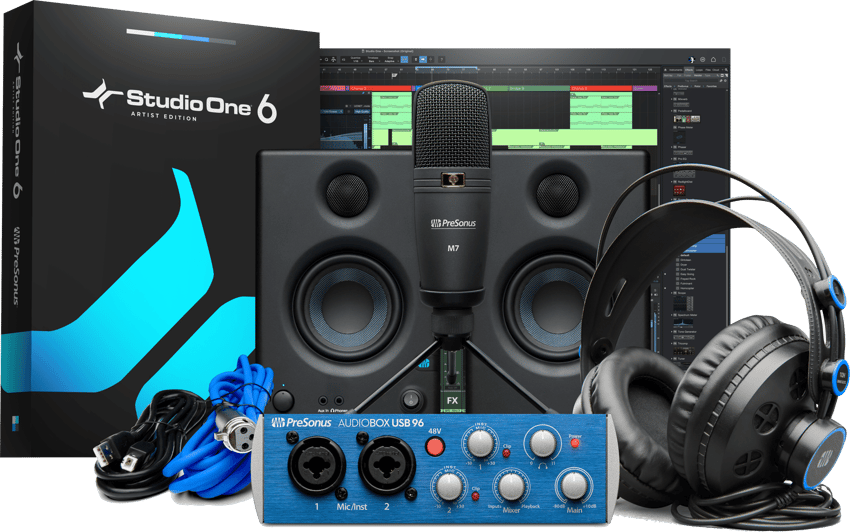

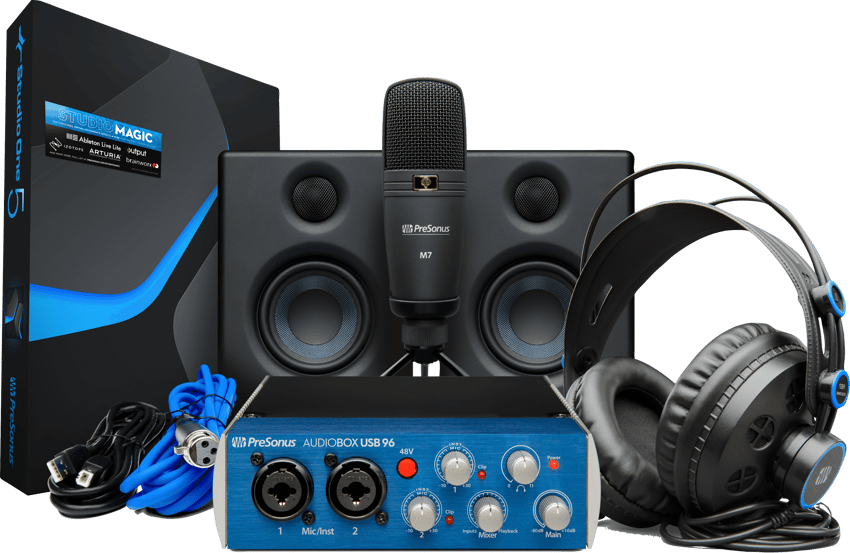

• Complete all-PreSonus® solution: Everything you need to produce music, podcasts, sound effects and more.

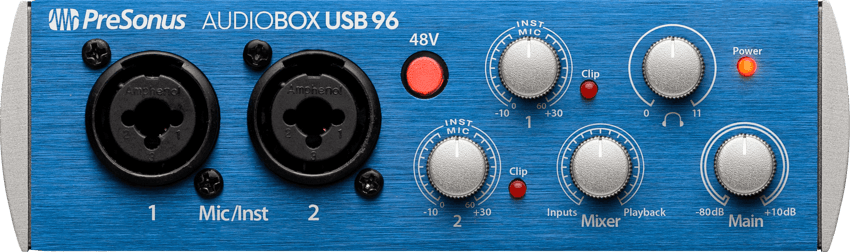

• AudioBox USB® 96 2-in/2-out bus-powered USB 2.0 audio/MIDI interface with 24-bit resolution and up to 96 kHz sampling rate
• 2 mic/instrument inputs with low-noise, high-headroom, Class A mic preamplifiers and +48V phantom power
• 1x1 MIDI In and Out
• Compatible with Apple Intel- and Apple Silicon-based Macs, as well as Windows computers and recording software
• Studio One™ Artist recording and production software for macOS and Windows with unlimited tracks and plug-ins
• Studio Magic Software Suite (over $1,000 value!)
• Eris® E3.5 media reference monitors (stereo pair) with 3.5-inch woofers, 1-inch tweeters, and 25W/side power amplifier

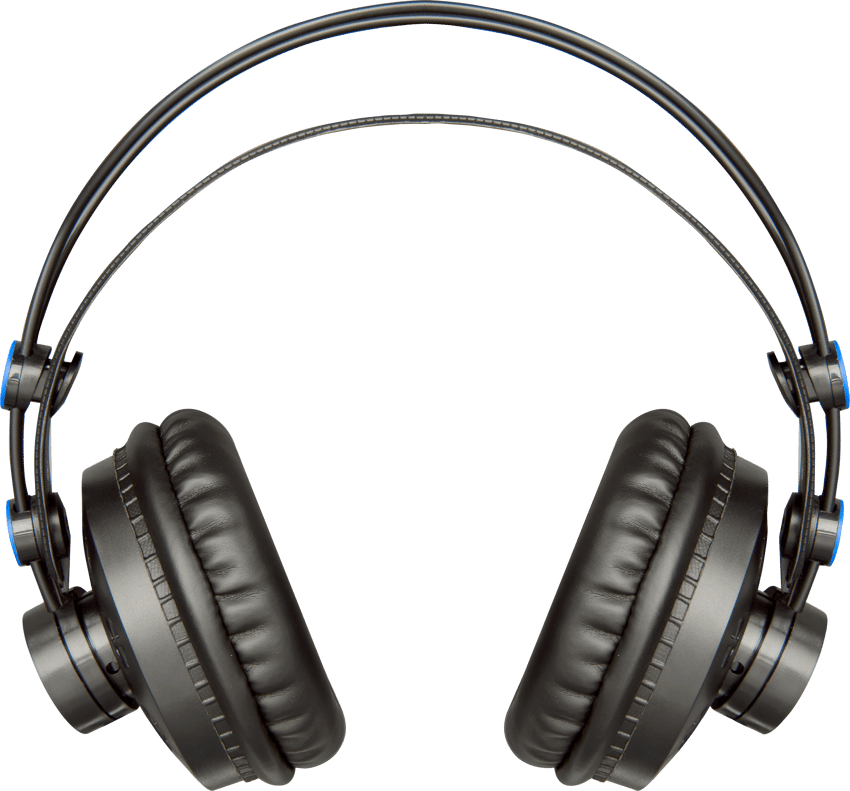

• HD7 high-definition headphones with patented, semi-open sound chamber for exceptionally deep low frequency response

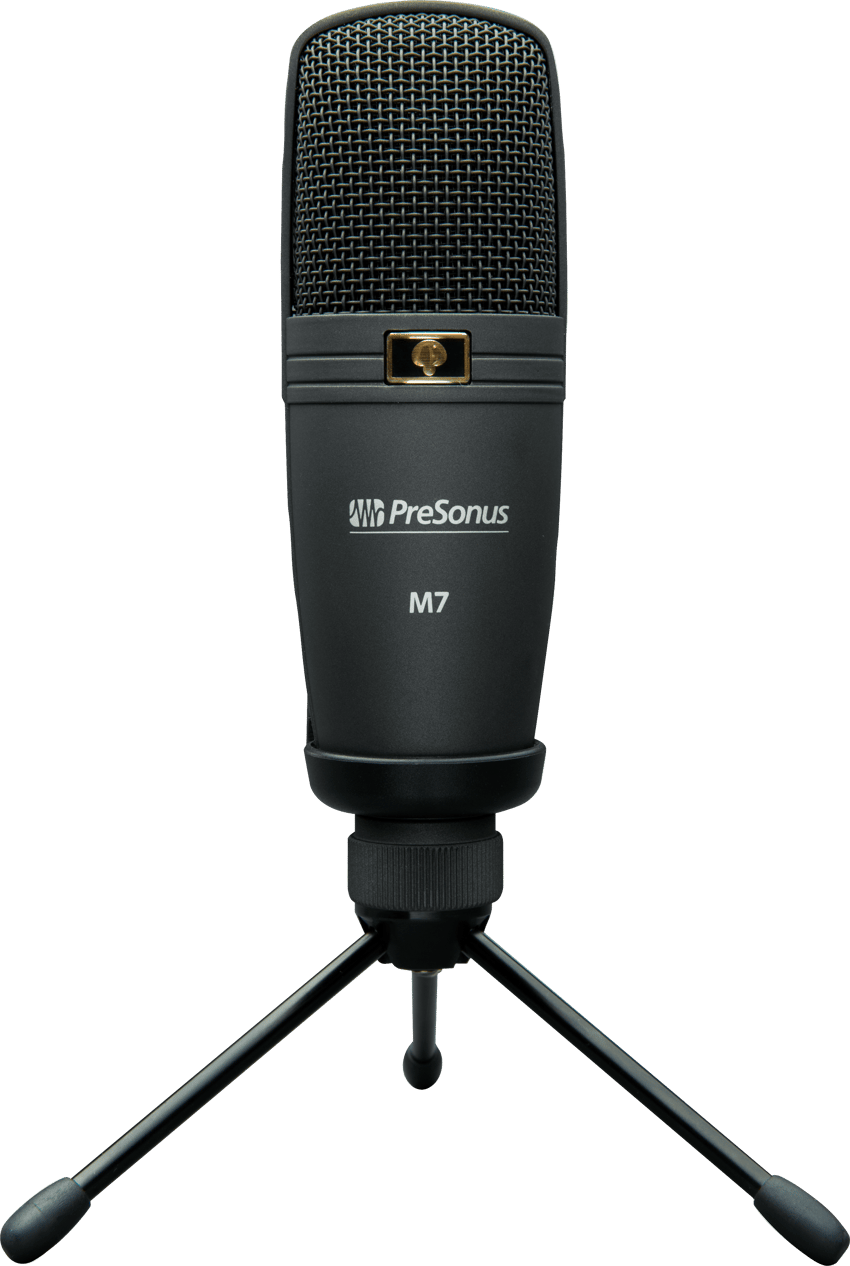

• M7 large-diaphragm condenser microphone with desktop mic stand and carry bag

Accessories

Included Accessories

1/8" to 1/4" (3.5 to 6.3 mm) Screw-On Gold-Plated Stereo Mini-Plug

Electronics

Connectivity

USB 2.0

Headphone Jack

1/4" TRS Active Stereo

Input Impedance

10 kΩ

Inputs

Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)

Line Out

Two - 1/4" Balanced (Left and Right)

Phantom Power

+48 VDC (±2 VDC)

Phantom Power Requierments

+12 to +52 VDC, 3 mA

Voltage

100-120V

General

Color

Black and Blue

Product Name

AudioBox® USB® 96 Studio Ultimate Bundle, Black and Blue, 100-120V

Series

AudioBox®

Hardware

Audio Controls

Volume Range: A-Type Taper MF Control: Variable (-6 to +6 dB, Center 100 Hz) HF Control: Variable (-6 to +6 dB, Center 10 Hz)

Cabinet Material

Vinyl-Laminated, Medium-Density Fiberboard

Driver Type

50 mm, Neodymium

HF Transducers

1” Silk Dome Tweeter

LF Transducers

3.5"

Microphone Element

Electret

Microphone Types

Large-Diaphragm Condenser Microphone

Monitor Inputs

1 x Stereo 1/8" (3.5 mm), 2 x Balanced 1/4" (6.35 mm) TRS, 2 x Unbalanced RCA

Inputs

Instrument Inputs Gain Range

(± 1 dB) +5 dB to 50 dB

Microphone Preamp Common Mode Rejection Ratio

>45 dB, 1 kHz, 55 dB Gain

Microphone Preamp Frequency Response

(±3.0 dB) 20 Hz to 20 kHz

Microphone Preamp Gain Control Range

0 dB to 35 dB, ± 1 dB

Microphone Preamp Input Impedance

(Balanced) 1200Ω

Microphone Preamp Maximum Input Level

-3 dBu, Unity Gain, 1 kHz @ 0.5% THD+N

Microphone Preamp Signal To Noise Ratio

(Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz) > 95 dB

Microphone Preamp Total Harmonic Distortion

THD+N (Unweighted, 1 kHz at +4 dBu Output, Unity Gain) < 0.008%

Measurements

Headphone Weight Without Cable

7.8 oz (222g)

Product Depth

1.75" (44.45 mm)

Product Height

5.5" (139.7 mm)

Product Width

5.5" (139.7 mm)

Miscellaneous

Power Cable

USB 2.0 Bus-Powered

Protections

RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse

Supported Sample Rates

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Output

Headphone Outputs Frequency Response

(±1.0 dB) 20 Hz to 30 kHz

Headphone Outputs Maximum Output

60 mW/Channel at 60Ω Load

Main And Line Outputs Output Impedance

51Ω

Performance

Digital Audio Bit Depth

24

Digital Audio Dynamic Range

ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB

Dynamic Range

11 dB

Headphone Frequency Response

10 Hz to 30 kHz

Headphone Maximum Power

300 mW

Headphone Rated Impedance

32Ω

Headphone Sensitivity

98 dB SPL (1 mW)

Maximum SPL

136 dB SPL

Microphone Frequency Response

40 Hz - 18 kHz

Microphone Sensitivity

-39 dBV/pa (12.2 mV/pa)

Peak SPL

100 dB (at 1 meter)

Polar Patern

Cardioid

Speakers

Crossover Frequency

2.8 kHz
