Features

• Simple, affordable stereo-recording solution for singer/songwriters, podcasters, guitar or guitar-bass collaborations and more
• Professional-quality mic preamps: Your microphone will sound its best thanks to this low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
• Recording software included: Get started right away with 6-months of Studio One Pro+ and the Studio Magic Suite software bundle
• Bus-powered by your connected USB device so no need for an additional power supply

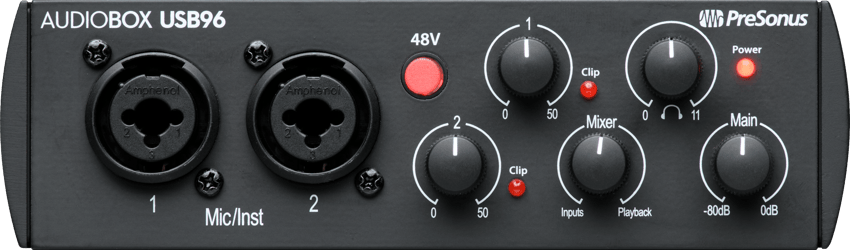

• 2 combo mic/instrument inputs with high-quality mic preamplifiers: Connect mics, guitars and basses
• One loud, clear ¼-inch stereo headphone output
• Mix control lets you create a custom blend between inputs and playback for monitoring recordings with zero latency

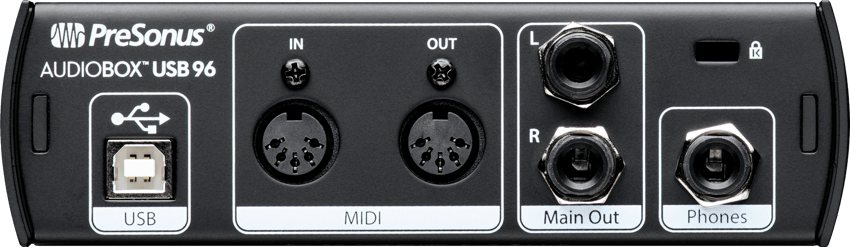

• Two balanced TRS ¼-inch main outputs for studio monitors or other speakers
• Professional audio quality: Studio-grade converters allow for up to 24-bit/96 kHz recording and playback assuring the highest quality possible
• USB 2.0-compatible

Electronics

Connectivity

USB 2.0

Headphone Jack

1/4" TRS Active Stereo

Inputs

Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)

Line Out

Two - 1/4" Balanced (Left and Right)

Phantom Power

+48 VDC (±2 VDC)

Voltage

USB Bus Powered

General

Color

Black

Product Name

AudioBox® USB® 96K 25th Anniversary, Black

Series

AudioBox®

Inputs

Instrument Inputs Gain Range

(± 1 dB) +5 dB to 50 dB

Microphone Preamp Common Mode Rejection Ratio

(1 kHz, 55 dB Gain) > 45 dB

Microphone Preamp Frequency Response

(±3.0 dB) 20 Hz to 20 kHz

Microphone Preamp Gain Control Range

(± 1 dB) 0 dB to 35 dB

Microphone Preamp Input Impedance

(Balanced) 1200Ω

Microphone Preamp Maximum Input Level

(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu

Microphone Preamp Signal To Noise Ratio

(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB

Microphone Preamp Total Harmonic Distortion

THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%

Measurements

Product Depth

1.75" (44.45 mm)

Product Height

5.5" (139.7 mm)

Product Width

5.5" (139.7 mm)

Miscellaneous

Commodity Code

8517620000

Power Cable

USB 2.0 Bus-Powered

Supported Sample Rates

44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Output

Headphone Outputs Frequency Response

(±1.0 dB) 20 Hz to 30 kHz

Headphone Outputs Maximum Output

60 mW/Channel @ 60Ω Load

Main And Line Outputs Output Impedance

51Ω

Performance

Digital Audio Bit Depth

24

Digital Audio Dynamic Range

ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
