PreSonus CDL18s Dante® Enabled Active Subwoofer

Name: PreSonus CDL18s Dante® Enabled Active Subwoofer
Brand: PreSonus
SKU: CDL18s Dante
Price: 3269.99 SGD
Availability: OutOfStock

Overview

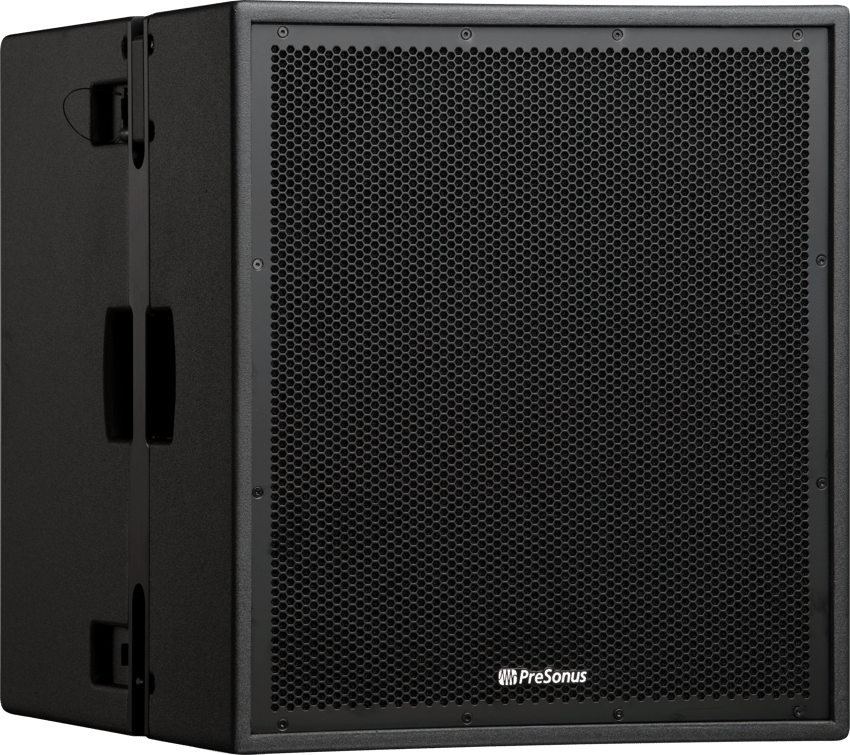

A terrific complement for any full-range loudspeaker and the perfect companion for PreSonus® CDL-series loudspeakers, the CDL18s Dante®-enabled Active Subwoofer delivers tight, coherent low-end, driven by an integrated 1,000-watt Class D power amp, and features a unique ported design that maximizes efficiency. Its powerful, articulate sub-bass performance and compact design make the CDL18s a great choice for installed and mobile sound.

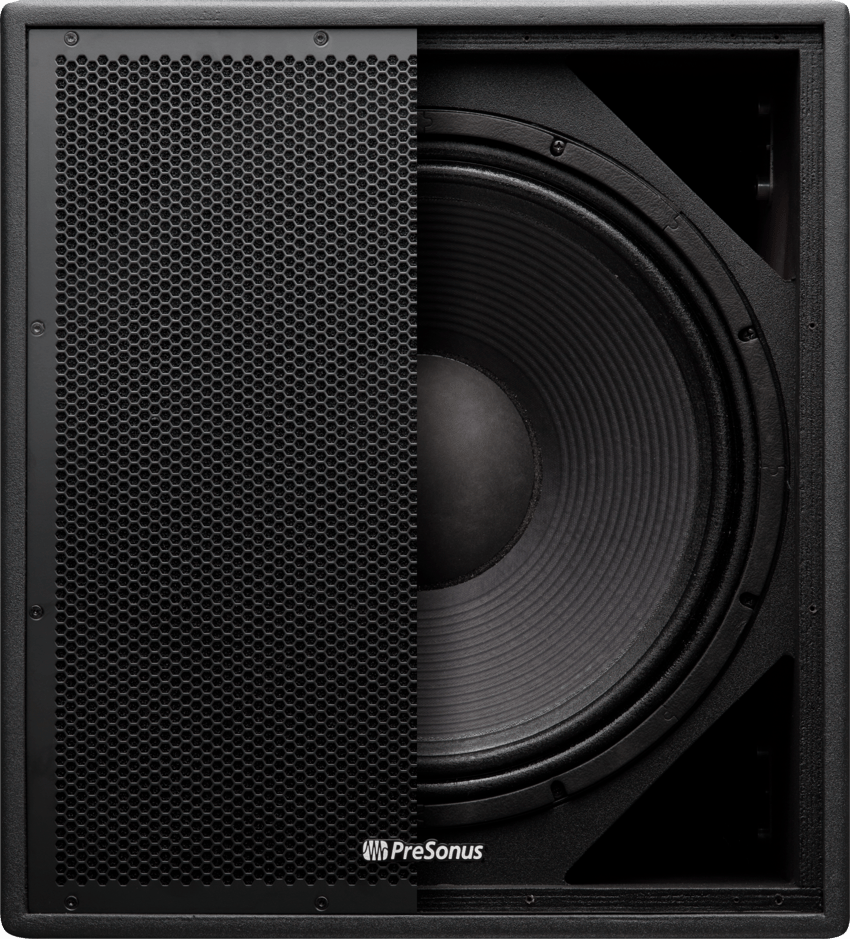

The CDL18s features a 18-inch LF transducer with 4-inch voice coil, providing 7 mm of driver travel before over-excursion to move more air for a low-end punch you can feel. When flown in a vertical array, or combined for ground-stacked applications, the CDL18s and CDL12 or CDL12P form a complete system with an even response across the frequency spectrum.

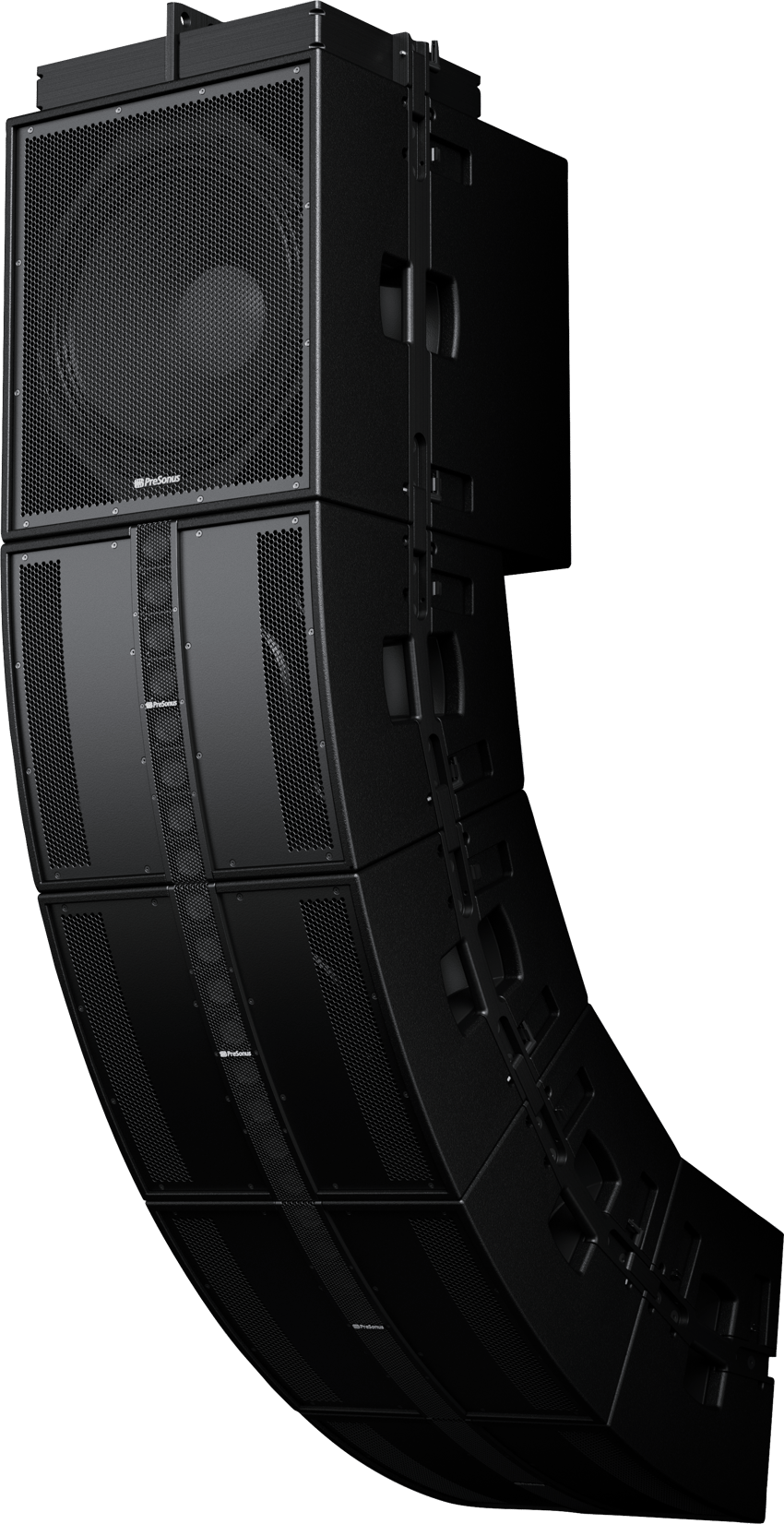

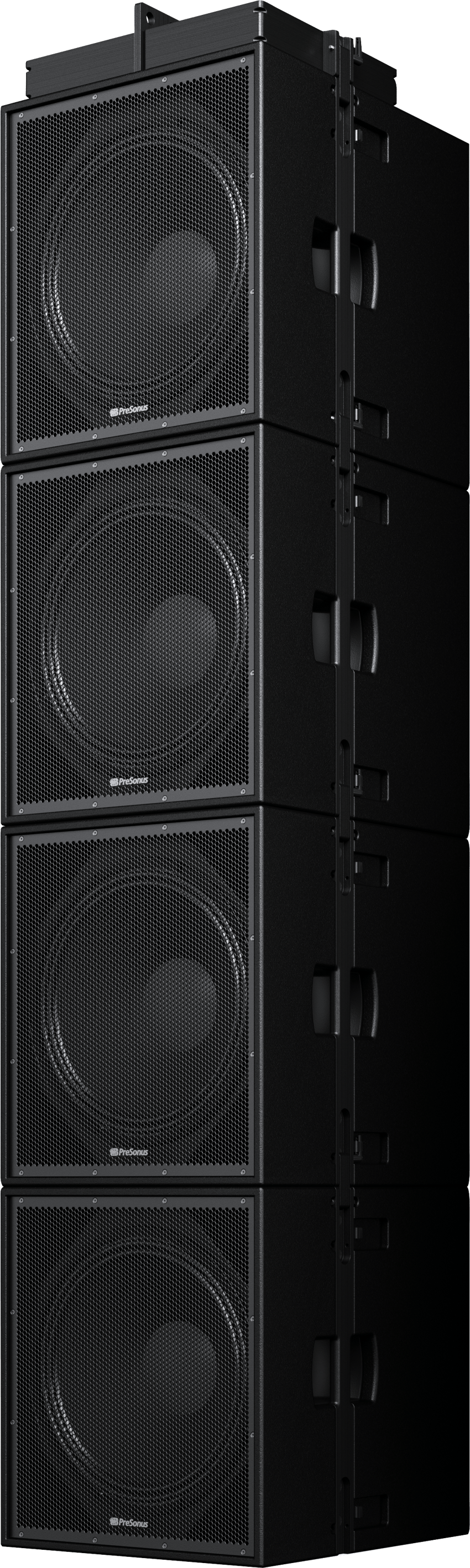

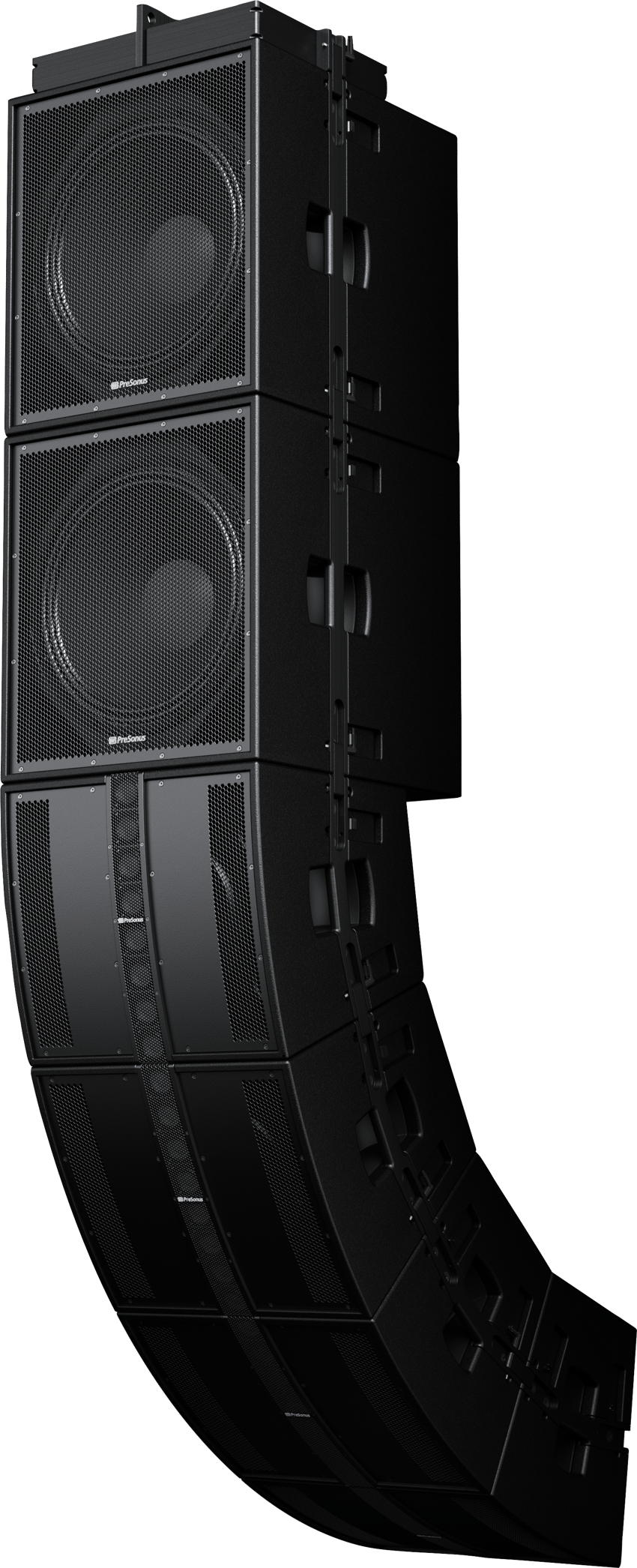

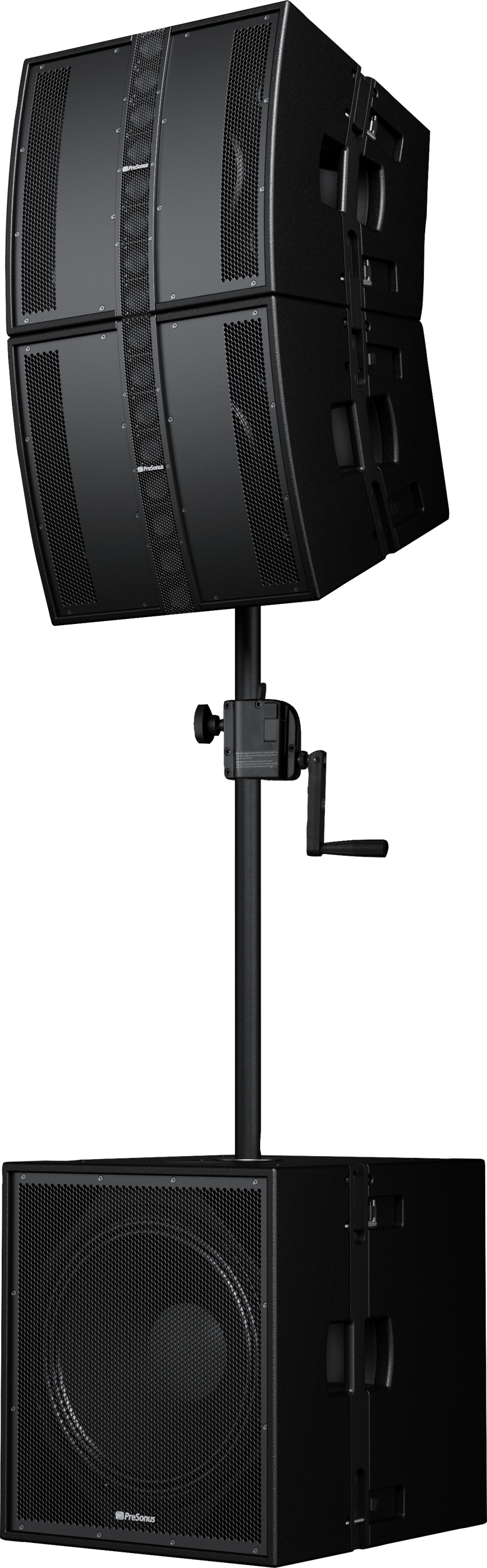

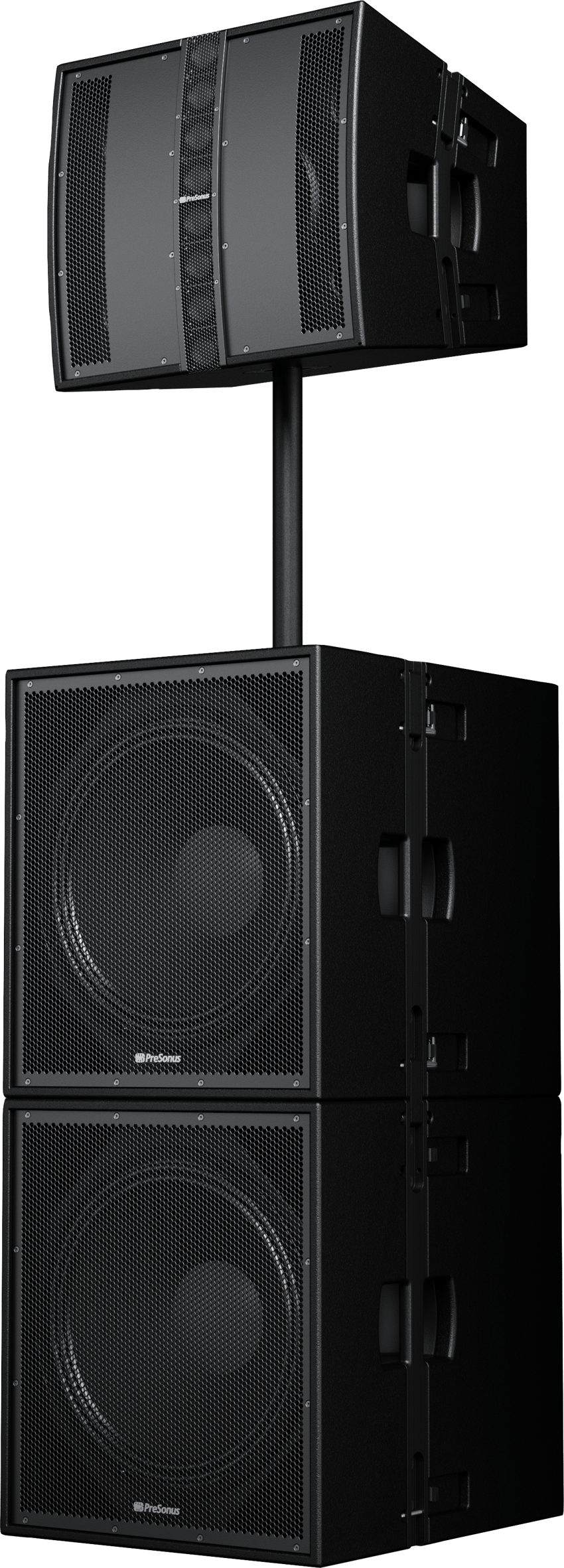

An integrated pole mount supports ground-stacked systems with up to two CDL-series loudspeakers. For more bass, rig two CDL18s subs together and mount one CDL loudspeaker, using a 19-inch sub pole. Integrated pin-loaded rigging makes it easy to fly up to five CDL18s subwoofers or suspend two CDL18s subs with five CDL loudspeakers for a complete constant-curvature array system.

The power amp features DSP presets for arrayed configurations. For advanced applications, each CDL18s can be connected to a standard LAN and remote-controlled using Worx Control software for macOS and Windows. A locking Ethernet connector provides Dante networking for interoperability with a wide range of equipment

View full details

All Categories PreSonus

PreSonus CDL18s Dante® Enabled Active Subwoofer

1 / 10

2 / 10

3 / 10

4 / 10

5 / 10

6 / 10

7 / 10

8 / 10

9 / 10

10 / 10

❮ ❯

Overview

$3,269.99 SGD

Sale Sold out

Taxes included.

The shipping costs are calculated on the checkout page.

Quantity

Specifications

Features

18-inch low-frequency driver with a 4-inch voice coil
2,000W peak (1,000W program/500W RMS) Class D power amp
Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
Unique ported design that maximizes efficiency
Easy-to-use DSP presets for arrayed configurations
Remote control via Worx Control software for macOS and Windows, including compression, polarity invert, limiting, delay, 8-band EQ and preset selection
Integrated M20 threaded pole mount for ground-stacked systems

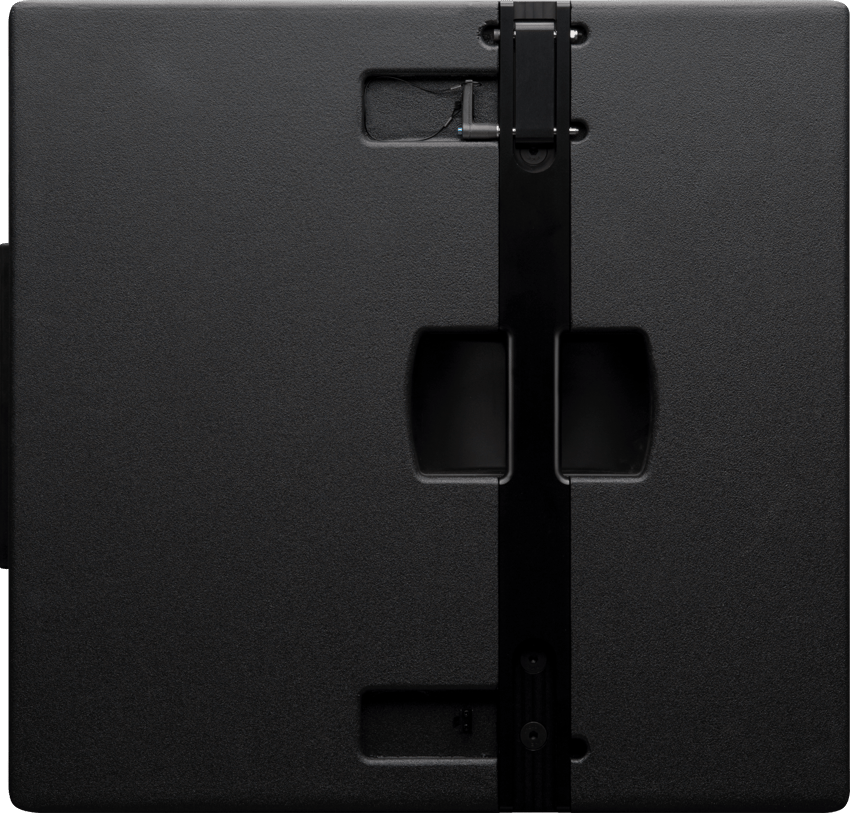

Integrated rigging (10:1 load) to create an array of up to five CDL18s subwoofers or up to two CDL18s and five CDL-series loudspeakers

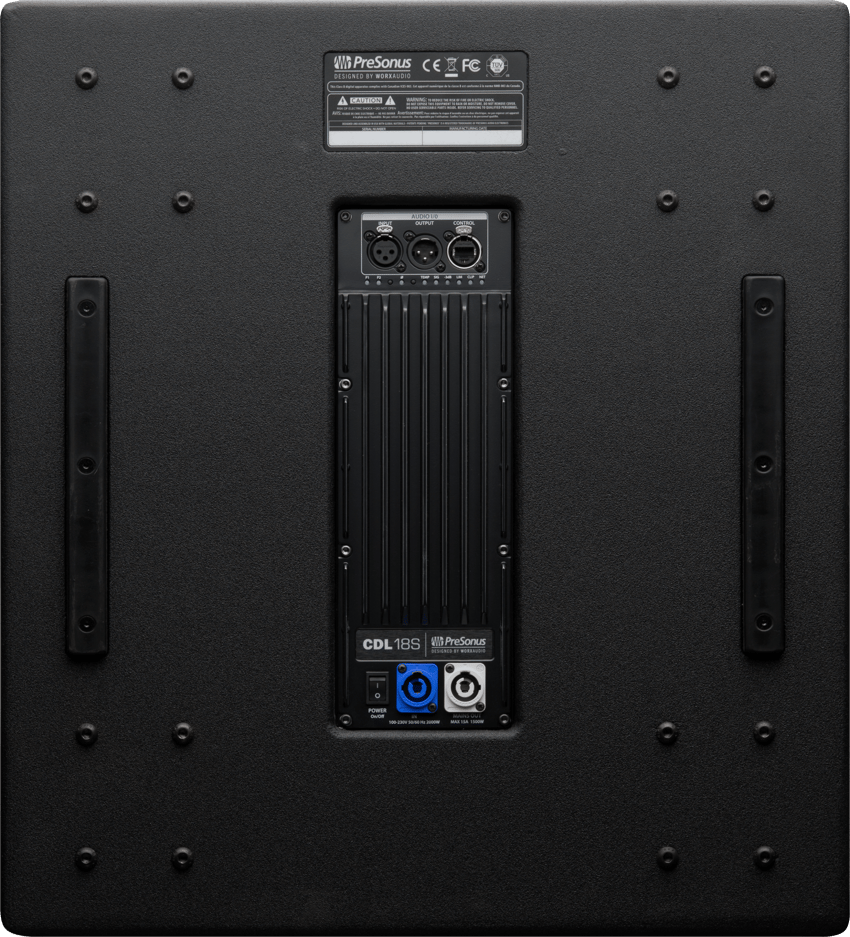

Balanced XLR input and balanced XLR direct output

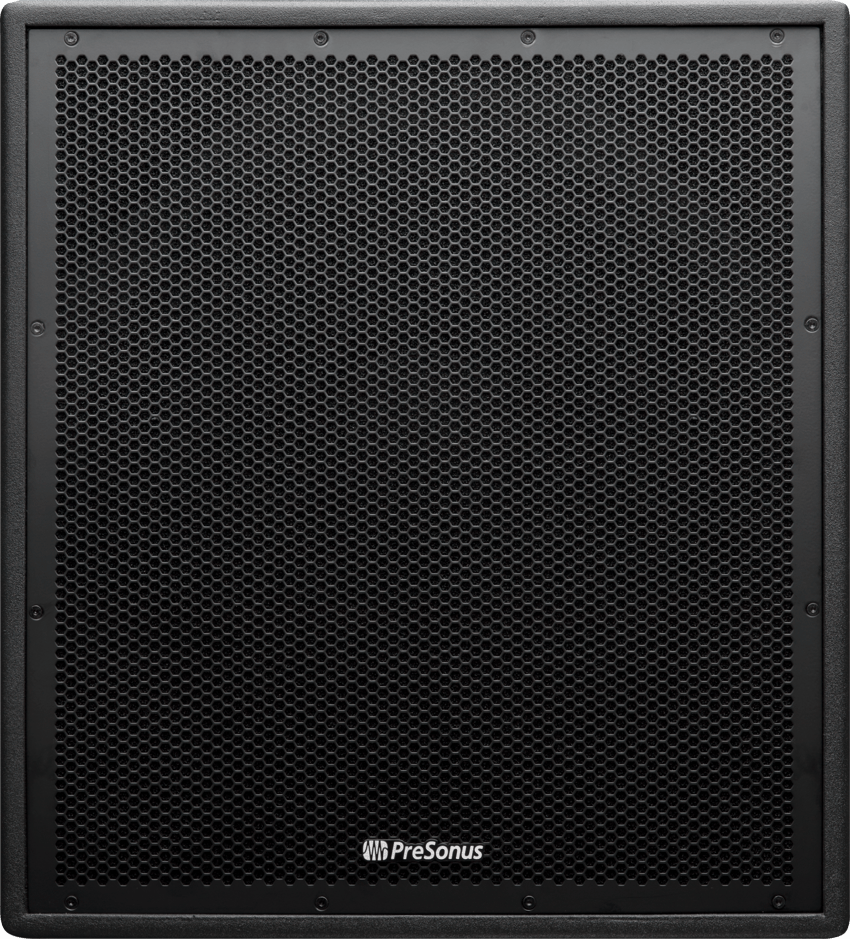

Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grilleFeatures
18-inch low-frequency driver with a 4-inch voice coil
2,000W peak (1,000W program/500W RMS) Class D power amp
Maximum SPL 135 dB peak with 36 Hz to 144 Hz frequency response
Unique ported design that maximizes efficiency
Easy-to-use DSP presets for arrayed configurations
Remote control via Worx Control software for macOS and Windows, including compression, polarity invert, limiting, delay, 8-band EQ and preset selection
Integrated M20 threaded pole mount for ground-stacked systems
Integrated rigging (10:1 load) to create an array of up to five CDL18s subwoofers or up to two CDL18s and five CDL-series loudspeakers
Balanced XLR input and balanced XLR direct output
Rugged, Chemline Polyurea-finished, 15 mm eucalyptus plywood enclosure with tour-grade steel grille

Technical Data

Electronics

Auxiliary Input

N/A

Channels

One

Inputs

One - 1 XLR

Line Out

One - Direct Line Out (XLR)

Power Consumption

4.2A

Voltage

100-120V

General

Amplifier Type

Class-D

Color

Black

Product Name

CDL18s Dante® Enabled Active Subwoofer, Black

Series

CDL

Hardware

Audio Controls

Preset Select, Polarity Invert

Cabinet Material

15mm Eucalyptus Plywood

Cooling

Free Air Convection

Grille Material

Powder-Coated Steel

Handle

2 Side

LF Power

2000W Peak, 1000W Program (500W RMS)

LF Transducers

1x18" Ferrite magnet (4" Voice Coil)

Pole Socket

M20 Threaded Pole Receiver

Inputs

Line Inputs Impedance

40 kΩ

Line Inputs Maximum Level

+4 dBu

Measurements

Product Depth

24" (60.96 cm)

Product Height

23.2" (58.93 cm)

Product Width

20.8" (529 mm)

Miscellaneous

DSP Features

Compression, Polarity Invert, Limiting, Delay, 8-Band EQ and Preset Selection via WorxControl

Power Cable

powerCON™ In and Out

Supported Sample Rates

48 kHz

Suspension

Integrated Rigging (10:1 Load)

Performance

Amplifier Dynamic Range

119 dB (A-Weighted)

Digital Audio Bit Depth

24-bit

Peak SPL

135 dB

Total Harmonic Distortion

<0.05% (20 Hz - 20 kHz)

Total Power Output

2000W Peak, 1000W Program (500W RMS)

Speakers

Crossover Frequency

90 Hz

Speaker Type

Active Subwoofer

Total Impedance
