PreSonus Eris® Pro Sub 10

PreSonus Eris® Pro Sub 10

1 / 3
PreSonus Eris® Pro Sub 10
2 / 3
PreSonus Eris® Pro Sub 10
3 / 3
PreSonus Eris® Pro Sub 10
PreSonus Eris® Pro Sub 10
PreSonus Eris® Pro Sub 10
PreSonus Eris® Pro Sub 10
Regular price $637.64 SGD
Sale price $637.64 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Features

  • 10-inch, front-firing, glass-composite, low-frequency transducer
  • Front-firing, bass-reflex acoustic port
  • Continuously variable lowpass filter (50 Hz to 130 Hz) sets the upper frequency reproduced by the subwoofer
  • Switchable highpass filter removes frequency content below 80 Hz from the full-range subwoofer outputs to the main monitors
  • Momentary footswitch (included) bypasses the subwoofer, highpass filter, and Sub Out
  • Input gain control (-30 dB to +6 dB, continuously variable), polarity invert switch, and ground-lift switch
  • 170 watt (RMS), Class AB amplification for up to 113 dB SPL, with a frequency response of 20 to 200 Hz

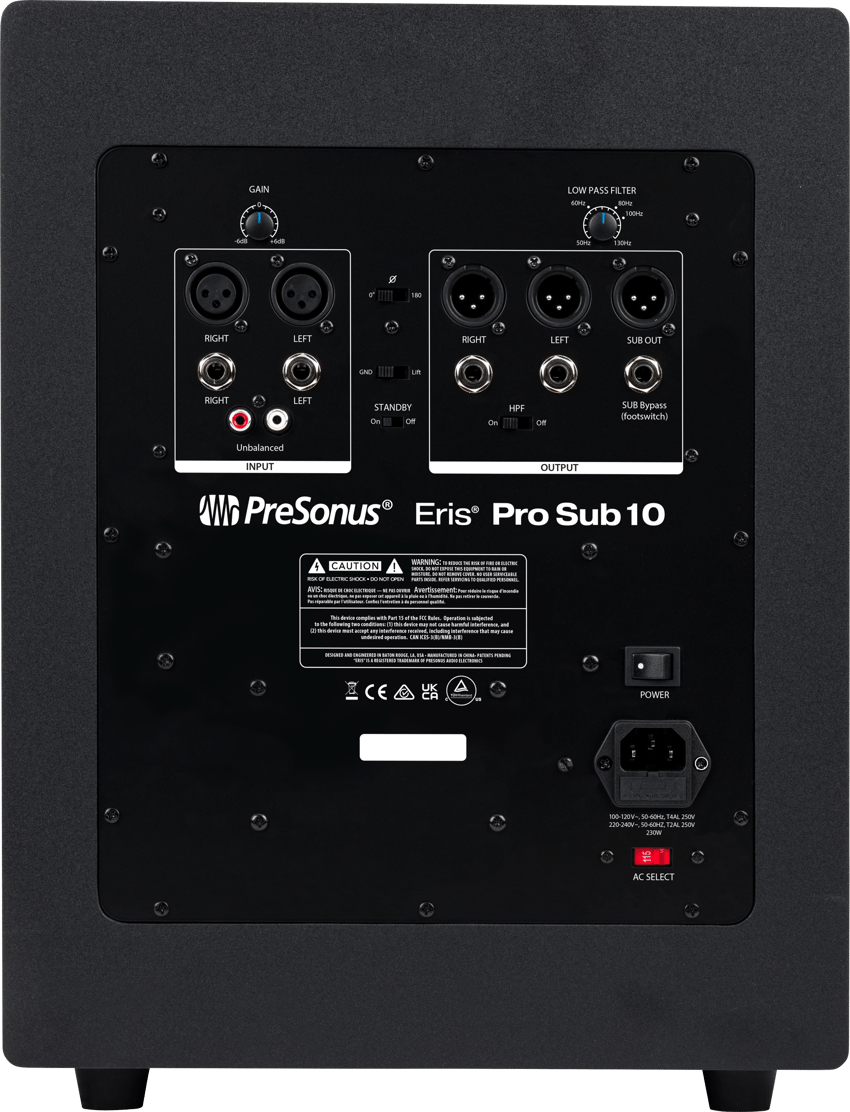

  • Left and right, balanced XLR and ¼-inch TRS and unbalanced RCA main inputs
  • Left and right balanced XLR and ¼-inch TRS outputs and XLR subwoofer output for connecting a second Eris® Pro Sub 10

Technical Data

Accessories

Footswitch

1-Button Footswitch Included (Sub On/Off)

Electronics

Voltage

120V

General

Color

Black

Product Name

Eris® Pro Sub 10, Black, NA

Series

Eris®

Hardware

Audio Controls

Input Gain Range: -30 to +6 dB Low Pass Filter Control: 50 Hz to 130 Hz

Audio Switches

Polarity Switch: 0 degrees or 180 degrees Ground Lift Switch: On/Off High Pass Filter Switch: On/Off Bypass Footswitch: On/Off

Cabinet Material

Vinyl-Laminated, Medium-Density Fiberboard

LF Transducers

10" Glass-Composite, Front-Firing

Monitor Inputs

2- Balanced XLR, 2- Balanced 1/4" TRS, 2- Unbalanced RCA

Monitor Type

Active Subwoofer

Power Amplifier Type

Class AB

Measurements

Product Depth

16" (40.6 cm)

Product Height

15.75" (40 cm)

Product Width

12.6" (32 cm)

Miscellaneous

Low Pass Filter Frequency

50 – 130 Hz (Variable)

Power Cable

IEC

Protections

RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter

Performance

Peak SPL

113 dB (@ 1 Meter)

Overview

10-inch, Active, Front-Firing Studio Subwoofer

Intended for serious personal studios and professional music-production environments, the Eris® Pro Sub 10 helps you take charge of the low-frequency foundation of your mix. An ideal companion to Eris Pro- and Eris Studio-series reference monitors, the Eris Pro Sub 10 complements full-range monitors without overshadowing them and extends the reach of your full-range system's low end with a natural sound.

Powerful and musical, the PreSonus® Eris Pro Sub 10 active, front-firing studio subwoofer is designed to deliver fast and accurate transient response, extending low frequencies down to 20 Hz, allowing you to hear the full-spectrum range of your mix. Driven by 170W (RMS) Class AB amplification, the Eris Pro Sub 10's 10-inch, glass-composite, low-frequency driver delivers tight, responsive sub-bass, thanks to its lightweight and rigid cone. This design provides lower distortion than other materials for sub-bass reproduction that's as coherent and clear as your full-range monitors.

Extensive user controls include input gain, continuously variable lowpass filter for creating a seamless crossover transition, and a switchable highpass filter that removes content below 80 Hz from the full-range signal sent to the monitors. A continuously variable lowpass filter (50 Hz to 130 Hz) allows you to create a seamless crossover transition between the full-range studio monitors and subwoofer for the most accurate listening environment possible.
