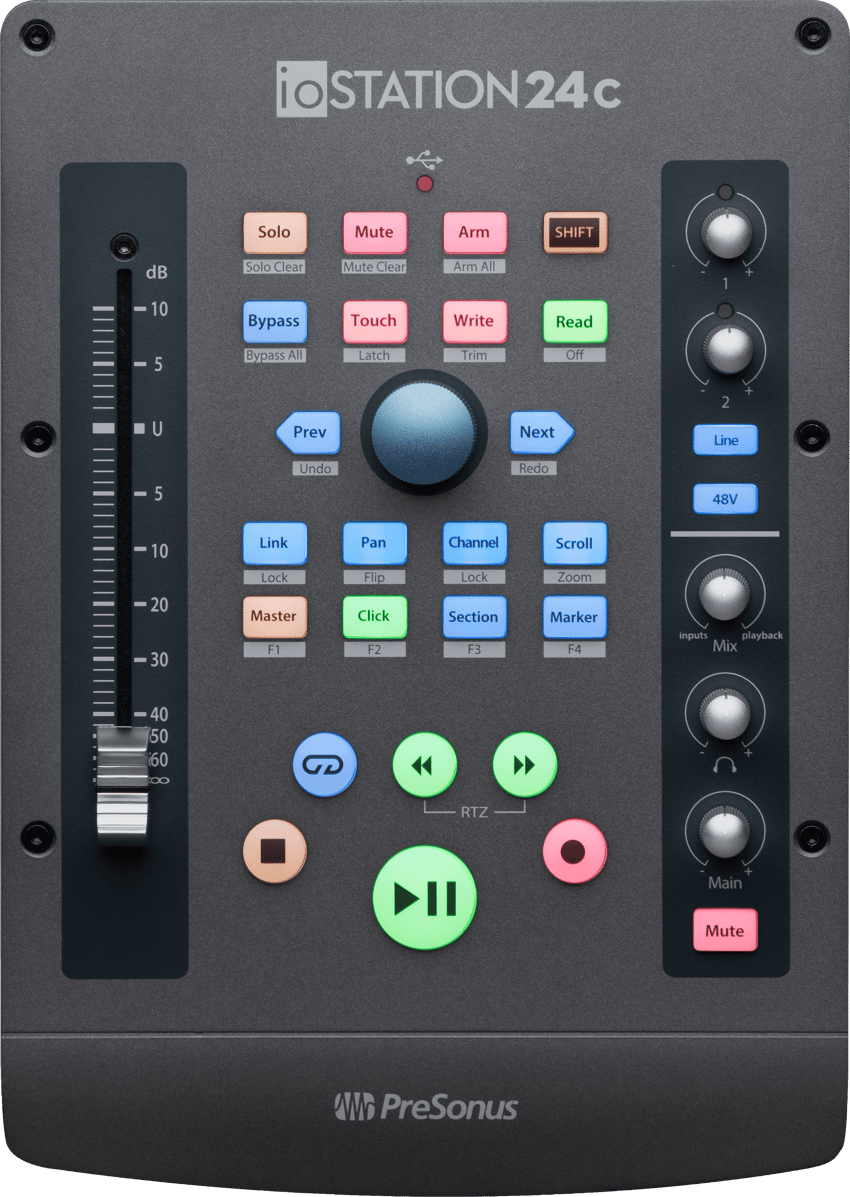

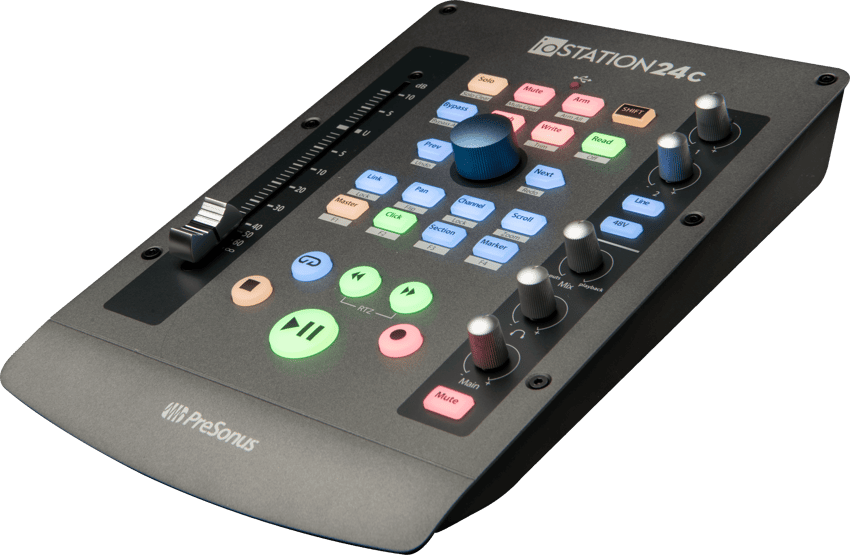

Features

• Two products in one: audio interface and DAW controller
• 24-bit/192 kHz audio interface with 2 mic/instrument/line inputs with XMAX mic preamps, 2 balanced ¼-inch TRS main outputs, headphone output with independent level control
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop, Drop Marker, Next/Prev Marker, Next/Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
• Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• macOS®- / Windows®-compatible with native Studio One Pro support and HUI and Mackie Control Universal emulation
• Footswitch input for hands-free start/stop (footswitch not included)
• 6-months of Studio One Pro+ included
• Studio Magic software suite included

Accessories

Footswitch

Momentary or Latching (Not Included)

Electronics

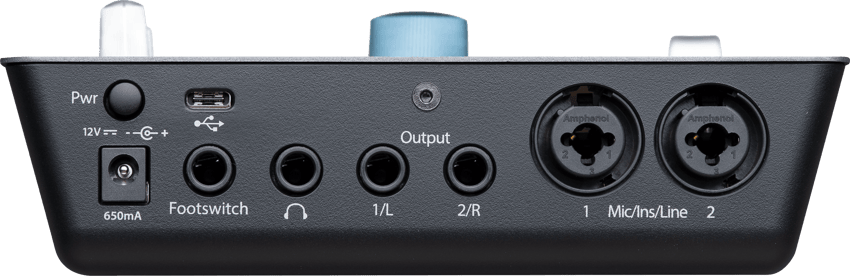

Connectivity

USB-C® Compatible USB 2.0 Connection

Headphone Jack

1/4” TRS Female, Stereo, Unbalanced

Inputs

Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))

Phantom Power

+48 VDC

General

Color

Black

Product Name

iOStation 24C, Black

Series

ioStation

Inputs

Instrument Input Connection Type

1/4” TS Female (Combo), Unbalanced

Instrument Inputs Dynamic Range

> 110 dB (A-Weighted, Minimum Gain)

Instrument Inputs Frequency Response

20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)

Instrument Inputs Gain Range

80 dB

Instrument Inputs Maximum Level

+15 dBu (Unbalanced, Minimum Gain)

Line Input Connection Type

1/4” TRS Female (Combo), Balanced

Line Inputs Dynamic Range

> 114 dB (A-Weighted, Minimum Gain)

Line Inputs Frequency Response

20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)

Line Inputs Gain Range

80 dB

Line Inputs Impedance

10 kΩ

Line Inputs Maximum Level

+ 22 dBu (Balanced, Minimum Gain)

Line Inputs Total Harmonic Distortion

< 0.007% (1 kHz, -1 dBFS, Minimum Gain)

Microphone Input Connection Type

XLR Female (Combo), Balanced

Microphone Preamp Dynamic Range

> 107 dB (A-Weighted, Minimum Gain)

Microphone Preamp Equivalent Input Noise

< -128 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)

Microphone Preamp Frequency Response

20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)

Microphone Preamp Gain Control Range

80 dB

Microphone Preamp Input Impedance

1.6 kΩ

Microphone Preamp Maximum Input Level

+16 dBu (Balanced, Minimum Gain)

Microphone Preamp Total Harmonic Distortion

< 0.007% (1 kHz, Minimum Gain)

Measurements

Product Depth

6.8” (17.2 cm)

Product Height

2.4" (6 cm)

Product Width

9.6" (14.5 cm)

Miscellaneous

Commodity Code

8517620000

Power Cable

12 VDC, 1.2A, External Power Supply

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 kHz

Output

Headphone Outputs Dynamic Range

> 107 dB (A-Weighted)

Headphone Outputs Frequency Response

20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)

Headphone Outputs Impedance Working Range

32Ω to 300Ω

Headphone Outputs Maximum Output

150 mW/Channel (56Ω Load)

Headphone Outputs Total Harmonic Distortion

< 0.02% (1 kHz, -1 dBFS, No Load)

Main And Line Outputs Dynamic Range

> 109 dB (A-Weighted)

Main And Line Outputs Frequency Response

20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)

Main And Line Outputs Maximum Level

+18 dBu (Balanced)

Main And Line Outputs Total Harmonic Distortion

< 0.005% (1 kHz, +4 dBu)

Performance

Digital Audio Bit Depth

24 Bit

Digital Audio Dynamic Range

ADC Dynamic Range (A-Weighted): 115 dB, DAC Dynamic Range (A-Weighted): 115 dB
