Features

• High Performance Signal Flow – Custom low-latency drivers and low-noise converters.
• All-New MAX-HD Mic Preamps – The culmination of 30 years of innovation, our rigorously redesigned preamps feature digitally-controlled analog with +75 dB of gain range.
• Co-Developed with Fender® – Front-facing instrument inputs engineered for guitarists by industry-leading experts.
• Professional Recording Software Included – 12-months of Studio One Pro+ add-ons, exclusive content, and tools, plus a perpetual license to Studio One Pro.
• Auto Gain – Dial in recording-ready levels, hassle-free.
• Re-Amp Outputs – Re-amp audio directly from your DAW and experiment with amps and effects to sculpt your sounds.
• Universal Control App – Full control and metering from your mobile device, desktop, or tablet.

Accessories

Included Accessories

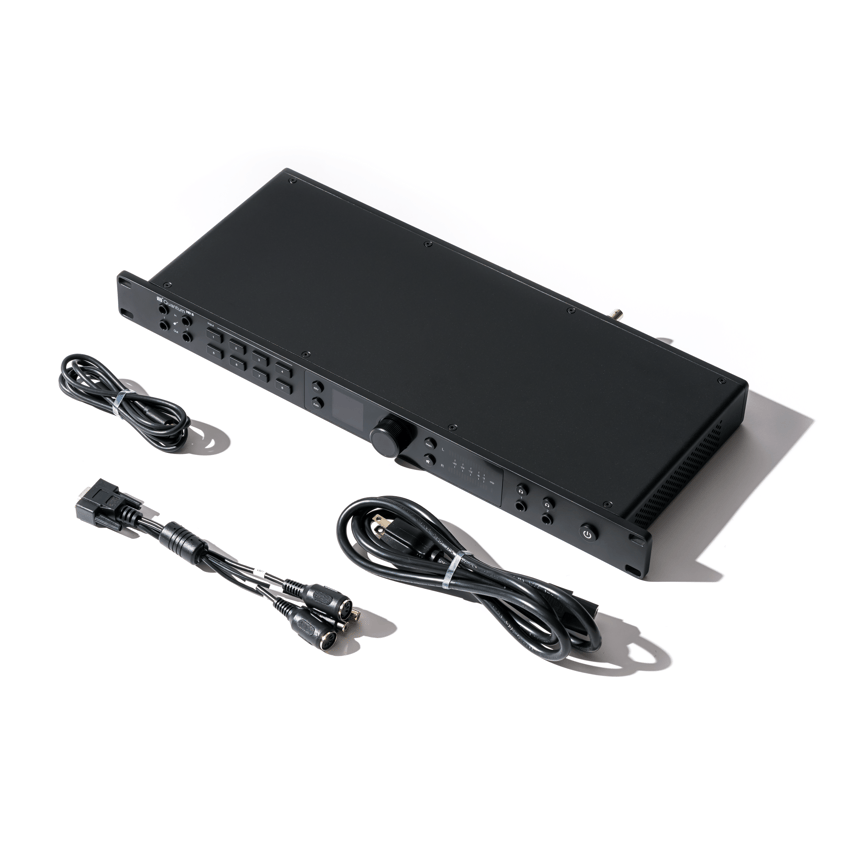

DB-9 breakout cable, 1.5M USB-C to USB-C cable

Electronics

Connectivity

USB-C®

Headphone Jack

Two - 1/4" TRS Female Stereo

Phantom Power

+48 VDC

Voltage

120V

General

Color

Black

Product Name

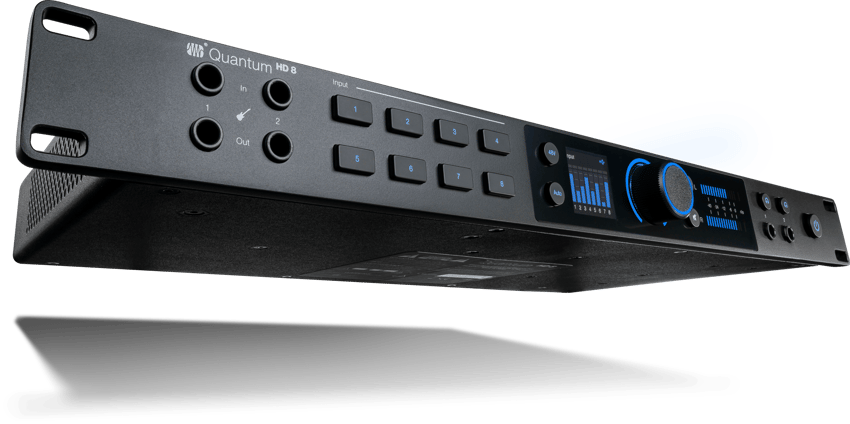

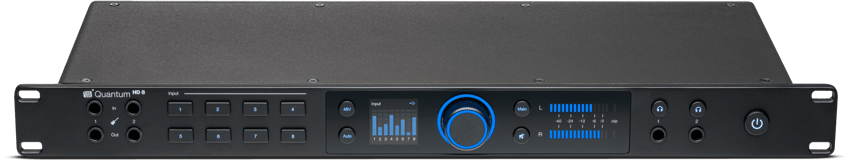

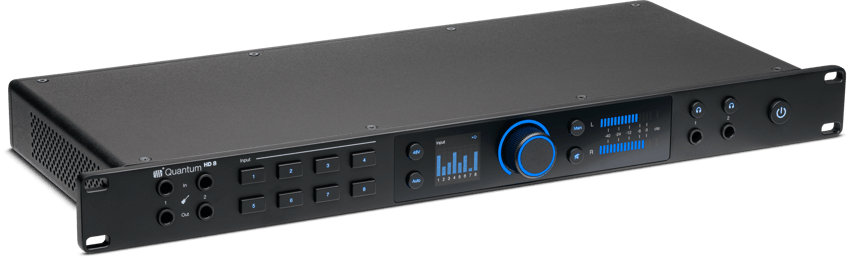

Quantum HD 8 USB-C Audio Interface

Series

Quantum

Hardware

ADAT Optical IO

Toslink™ Connectors, ADAT/SMUX Formats

SPDIF IO

RCA 75Ω Coax

Word Clock IO

BNC Connector, 4.5 Vpp @ 75Ω Load

Inputs

Instrument Inputs Dynamic Range

111 dB (A-Weighted, Minimum Gain)

Instrument Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Instrument Inputs Gain Range

75 dB

Instrument Inputs Maximum Level

+21 dBu (Unbalanced, Minimum Gain)

Line Inputs Dynamic Range

118 dB (A-Weighted, Minimum Gain)

Line Inputs Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Line Inputs Gain Range

+/- 10 dB

Line Inputs Impedance

10K Ohms

Line Inputs Maximum Level

+18 dBu (Balanced, Minimum Gain)

Line Inputs Total Harmonic Distortion

0.001% (1 kHz, Minimum Gain)

Microphone Input Connection Type

XLR Female (Combo), Balanced

Microphone Preamp Dynamic Range

116 dB (A-Weighted, Minimum Gain)

Microphone Preamp Equivalent Input Noise

-130 dBu (Maximum Gain, 150 Ohms, 20 kHz BW, A-Weighted)

Microphone Preamp Frequency Response

20 Hz to 20 kHz, +/- 0.1 dB (Unity Gain, Reference 1 kHz)

Microphone Preamp Gain Control Range

75 dB

Microphone Preamp Input Impedance

1600 Ohms

Microphone Preamp Maximum Input Level

+18 dBu (Balanced, Minimum Gain)

Microphone Preamp Total Harmonic Distortion

0.002% (1 kHz, Minimum Gain)

Measurements

Product Depth

8.6" (218 mm)

Product Height

1.7” (43.1mm)

Product Width

19" (483mm)

Miscellaneous

Power Cable

IEC

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, 192 (kHz)

Output

Headphone Outputs Dynamic Range

118 dB (A-Weighted)

Headphone Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.3 dB (Unity Gain, Reference 1 kHz)

Headphone Outputs Impedance Working Range

33 Ohms

Headphone Outputs Maximum Output

11 dBu (50 Ohms)

Headphone Outputs Total Harmonic Distortion

0.001% (1 kHz)

Line Outputs Connection Type

1/4" TRS Female

Main And Line Outputs Dynamic Range

123 dB (A-Weighted)

Main And Line Outputs Frequency Response

20 Hz to 20 kHz, +/- 0.2 dB (Unity Gain, Reference 1 kHz)

Main And Line Outputs Maximum Level

+18 dBu (Balanced)

Main And Line Outputs Output Impedance

51 Ohms

Main And Line Outputs Total Harmonic Distortion

0.001% (1 kHz, +4 dBu)

Main Outputs Connection Type

1/4" TRS Female

Performance

Digital Audio Bit Depth

32-bit

Digital Audio Dynamic Range

124 dB
