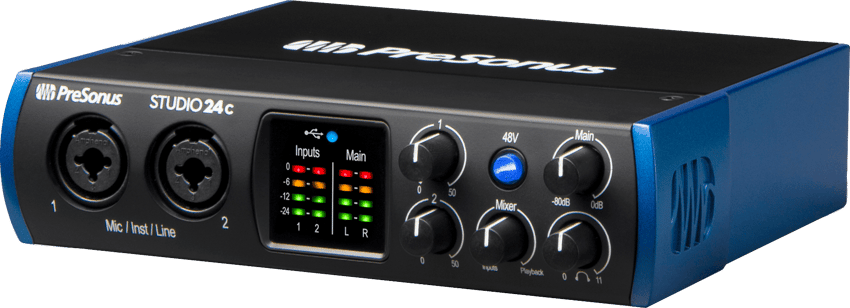

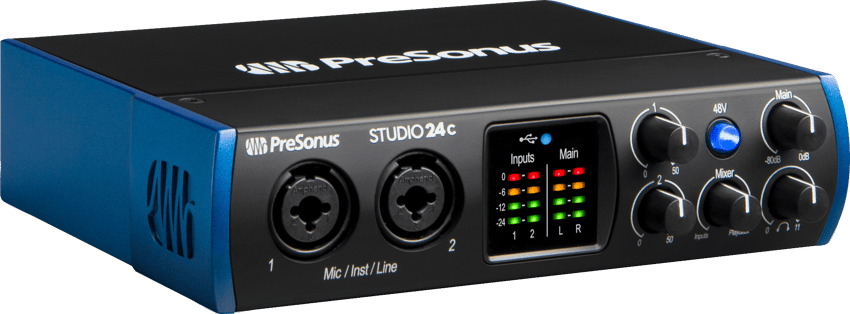

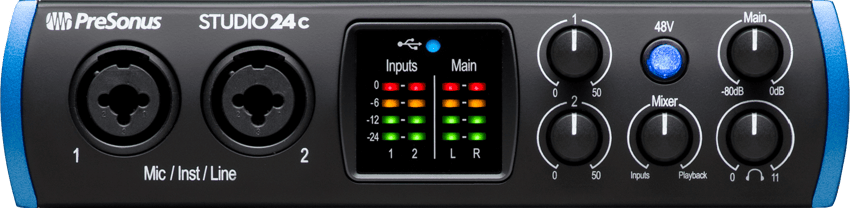

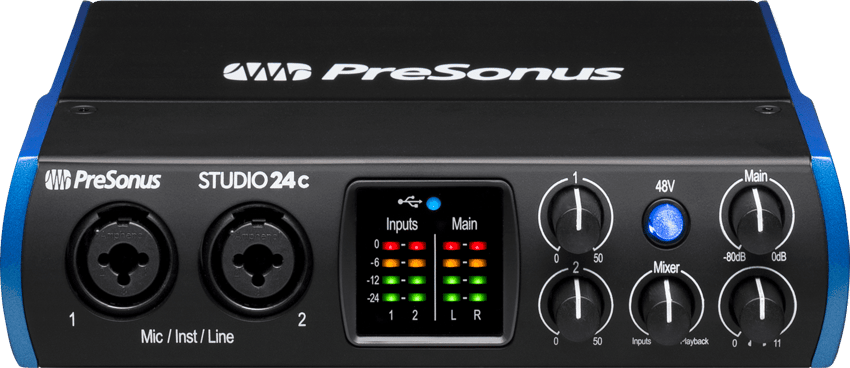

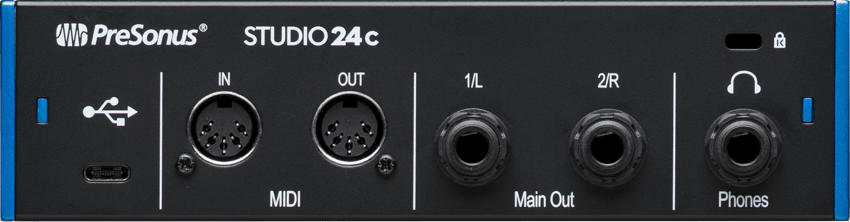

PreSonus Studio 24c

PreSonus Studio 24c

1 / 5
PreSonus Studio 24c
2 / 5
PreSonus Studio 24c
3 / 5
PreSonus Studio 24c
4 / 5
PreSonus Studio 24c
5 / 5
PreSonus Studio 24c
PreSonus Studio 24c
PreSonus Studio 24c
PreSonus Studio 24c
PreSonus Studio 24c
PreSonus Studio 24c
Regular price $212.54 SGD
Sale price $212.54 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Features

  • Simultaneous I/O up to 2 inputs/2 outputs
  • 2 mic/instrument/line inputs with XMAX-L mic preamps
  • 2 balanced ¼-inch TRS main outputs to connect professional studio monitors
  • High-power headphone output
  • MIDI In/Out
  • Mixer knob for low-latency direct input monitoring
  • Front-panel level controls for main outputs
  • 4 ladder-style LED level meters (2 input, 2 main output)
  • 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
  • USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
  • Includes 6-months of Studio One Pro+ and the Studio Magic Software Suite

Technical Data

Electronics

Connectivity

USB-C®

Headphone Jack

1/4" Stereo

Inputs

Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))

Line Out

Two - 1/4" Balanced (Left and Right)

Phantom Power

+48 VDC, 10 mA

Voltage

USB Bus Powered

General

Color

Black and Blue

Product Name

Studio 24c, Black and Blue

Series

Studio

Inputs

Instrument Inputs Dynamic Range

105 dB (A-Weighted, Unity Gain)

Instrument Inputs Frequency Response

20 Hz – 20 kHz (±0.1 dBu, Unity Gain, Unweighted)

Instrument Inputs Gain Range

50 dB

Instrument Inputs Maximum Level

+19 dBu (Minimum Gain)

Microphone Input Connection Type

Combo Locking XLR Mic - 1/4” TRS Line

Microphone Preamp Dynamic Range

106 dB (A-Weighted, Minimum Gain)

Microphone Preamp Equivalent Input Noise

-126 dBu (A-Weighted, 150Ω, Maximum Gain)

Microphone Preamp Frequency Response

20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)

Microphone Preamp Gain Control Range

50 dB

Microphone Preamp Input Impedance

1.4 kΩ

Microphone Preamp Maximum Input Level

+10 dBu (±0.5 dBu, Minimum Gain)

Microphone Preamp Total Harmonic Distortion

0.004% (1 kHz, -1 dBFS, Minimum Gain)

Measurements

Product Depth

5.5" (139.7 mm)

Product Height

1.75" (44.45 mm)

Product Width

7" (17.8 cm)

Miscellaneous

Commodity Code

8517620000

Power Cable

USB-C Cable

Supported Sample Rates

44.1, 48, 88.2, 96, 176.4, or 192 kHz (kHz)

Output

Headphone Outputs Dynamic Range

83 dB (A-Weighted, 56Ω Load)

Headphone Outputs Frequency Response

20 Hz – 20 kHz (±0.5 dBu, Unity Gain, Unweighted)

Headphone Outputs Impedance Working Range

32Ω to 300Ω

Headphone Outputs Maximum Output

47 mW/Channel @56Ω

Headphone Outputs Total Harmonic Distortion

0.01% (1 kHz, 0 dBFS, Loaded)

Line Outputs Connection Type

1/4" TRS, Balanced

Main And Line Outputs Dynamic Range

104 dB (Unity Gain, Unweighted)

Main And Line Outputs Frequency Response

20 Hz - 20 kHz (±0.3 dBu, Unity Gain, Unweighted)

Main And Line Outputs Maximum Level

+10 dBu (1 kHz, Unity Gain, Balanced)

Main And Line Outputs Total Harmonic Distortion

0.001% (1 kHz, -1 dBFS, Unity Gain)

Main Outputs Connection Type

1/4" TRS, Balanced

Performance

Digital Audio Bit Depth

24 Bit

Digital Audio Dynamic Range

108 dB

Overview

Whether you're recording your first album or your hit podcast's latest episode, the Studio 24c will help you sound your best. With two of PreSonus®' pristine XMAX-L mic preamps for recording vocals, high-headroom instrument preamps so you can connect your guitar or bass directly to your interface, and professional input metering so you can keep track of your recording levels, the Studio 24c delivers amazing sound quality in a rugged, compact form factor.

When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX-L mic preamps let you capture complex musical harmonics smoothly and naturally. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. An easy to use Mix control lets you blend your analog inputs with playback from your computer, making creating a great monitor mix fast and simple.

Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 24c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. A complete home recording studio right out of the box, the Studio 24c audio interface comes with 6-months of Studio One Pro+ so you can start recording right away.
