PreSonus TubePre V2

PreSonus TubePre V2

1 / 3
PreSonus TubePre V2
2 / 3
PreSonus TubePre V2
3 / 3
PreSonus TubePre V2
PreSonus TubePre V2
PreSonus TubePre V2
PreSonus TubePre V2
Regular price $226.71 SGD
Sale price $226.71 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

Features

  • XMAX Class A solid-state preamp input stage with Input Gain control
  • 12AX7 dual-servo, vacuum-tube output stage
  • 1 balanced XLR mic input and 1 unbalanced ¼-inch instrument input with Instrument input select switch
  • 1 unbalanced ¼-inch and 1 balanced XLR line output
  • 48V phantom power
  • 80 Hz high-pass filter
  • Polarity-reverse switch
  • Backlit VU meter and Clip LED
  • Compact ⅓U rack-mount chassis
  • External 12 VDC, 1A power supply

Technical Data

Electronics

Channels

One

Phantom Power

+48 VDC, 10 mA

Voltage

120V

General

Color

Blue

Product Name

TubePre V2, Blue, 120V

Series

Microphone Preamps

Inputs

Instrument Input Connection Type

1/4” TS Female (Combo), Unbalanced

Microphone Input Connection Type

XLR Female, Balanced

Microphone Preamp Dynamic Range

115 dB, 1 kHz, Unity Gain, 20 kHz BW, A-Weighted 107 dB, 1kHz, Unity Gain, 20 kHz BW, Unweighted

Microphone Preamp Equivalent Input Noise

-131 dB, 20 kHz BW, Maximum Gain, Rs=40Ω, A-Weighted -128 dB, 20 kHz BW, Maximum Gain, Rs=40Ω, Unweighted

Microphone Preamp Frequency Response

20 Hz – 20 kHz, -0.3 dB, +4 dBu, Unity Gain 5 Hz - 120 kHz, -3 dB, +4 dBu, Unity Gain

Microphone Preamp Input Impedance

1.3 kΩ

Microphone Preamp Total Harmonic Distortion

0.01%, -10 dBu, 1 kHz, Unity Gain, 20 kHz BW, Unweighted

Measurements

Product Depth

5.5" (139.7 mm)

Product Height

1.75" (44.45 mm)

Product Width

5.5" (139.7 mm)

Miscellaneous

Power Cable

12 VDC, 1A, External Power Supply

Output

Main And Line Outputs Maximum Level

+20 dBu

Main And Line Outputs Output Impedance

51Ω

Tubes

Preamp Tubes

1 x 12AX7

Overview

Compact, affordable and built tough enough for serious gigging, the PreSonus® TubePre V2 one-channel professional tube preamplifier is a great-sounding tool you'll use on a variety of sources, including guitars, basses and microphones. The signal path features one of PreSonus' famed XMAX Class A solid-state preamps, followed by a 12AX7 vacuum-tube stage that's hand-selected and carefully tested for top audio performance. Twist the Drive saturation control to add just the right amount of tube distortion to guitars, basses or mic signals. Go lightly for gentle warmth or go all-out for solid crunch.

A dual-servo (no capacitors) gain stage lets you boost the signal to smoking hot levels without significantly increasing noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class. You also get a high-pass filter, phantom power, polarity reverse and a backlit VU meter.

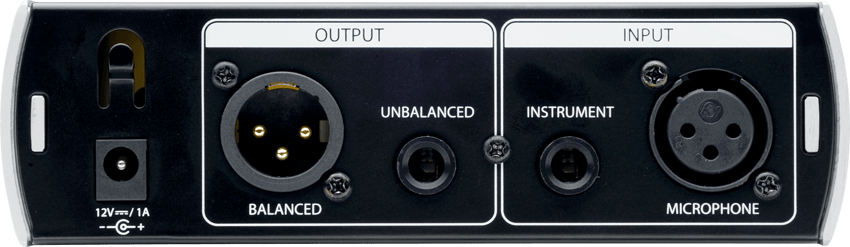

The TubePre V2 rear panel sports separate unbalanced, ¼-inch instrument and balanced, XLR mic inputs and unbalanced ¼-inch and balanced XLR line outputs. Use it as a straight-up tube preamp or a dynamite direct box (DI) for guitars and basses. It's housed in a rugged case that's small enough to carry almost anywhere - or screw-mount it to a standard rack tray.
