Proel Sound 6-channel Compact Mixer PLAYMIX6

Proel Sound 6-channel Compact Mixer PLAYMIX6

1 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
2 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
3 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
4 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
5 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
6 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
7 / 7
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Proel Sound 6-channel Compact Mixer PLAYMIX6
Regular price $227.81 SGD
Sale price $227.81 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

In stock

Specifications

GENERAL SPECIFICATIONS

Maximum level all outputs+15 dBu

Crosstalk meas. at 1 KHz> 75 dB

HUM & Noise unweighted< 90 dB

THD + Noise at +4dB, 1kHz< 0,009 %

Dimensions (WxHxD) 247 x 274 x 61 mm

Weight 1,80 kg

Technical Data

MONO INPUT CHANNEL

Mic Input sensitivity from -10 to -45 dB

Balanced XLR-F

impedance 1 K ohm

Line Input

sensitivity from +20 to -15 dB

Balanced JACK

impedance 20 K ohm

Lo cut - 80Hz, 6dB/oct

EQ

HIGH (shelving)±15 dB @ 12K Hz

MID (peaking)±12 dB @ 250-6K Hz

LOW (shelving)±15 dB @ 80 Hz

STEREO INPUT CHANNEL

Line Inputsensitivity from +12 to -15 dB

Balanced JACK

impedance 20 K ohm

Stereo Mini JACK

MASTER SECTION

MAIN MIX nom. out level +4 dBu

Unbalanced XLR-M

C. ROOM output nom. out level+4 dBu

Unbalanced JACK

SEND output nom. out level+4 dBu

Unbalanced JACK

HEADPHONES min. impedance 64 ohm

Stereo JACK

Bluetooth Version 5.0, Audio Streaming

USB Audio Interface Stereo IN/OUT, 16-bit converter44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate Type A

DIGITAL EFFECT PROCESSOR

Effects 100 presets

A/D and D/A converters 24 bit

DSP resolution 24 bit

Controls 2-DIGIT display, DIAL, LEVEL

POWER REQUIREMENTS

Supply use only supplied AC/DC ADAPTER 5VDC 1A

Mains Supply Voltage 100-240 VAC (±10%)  50/60 Hz

Consumption 15 W

6 IN Compact Mixer - 24bit FX DSP. - 2 MONO MIC/LINE IN with 3 band EQ , -20 dB PAD and PHANTOM power. - 2 Low Noise MIC Preamplifiers. - 2 STEREO LINE IN. - Balanced MAIN outputs with XLR-M connectors - Bluetooth - MP3 Player/Recorder Applictions: home recording, education, personal mixer

PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

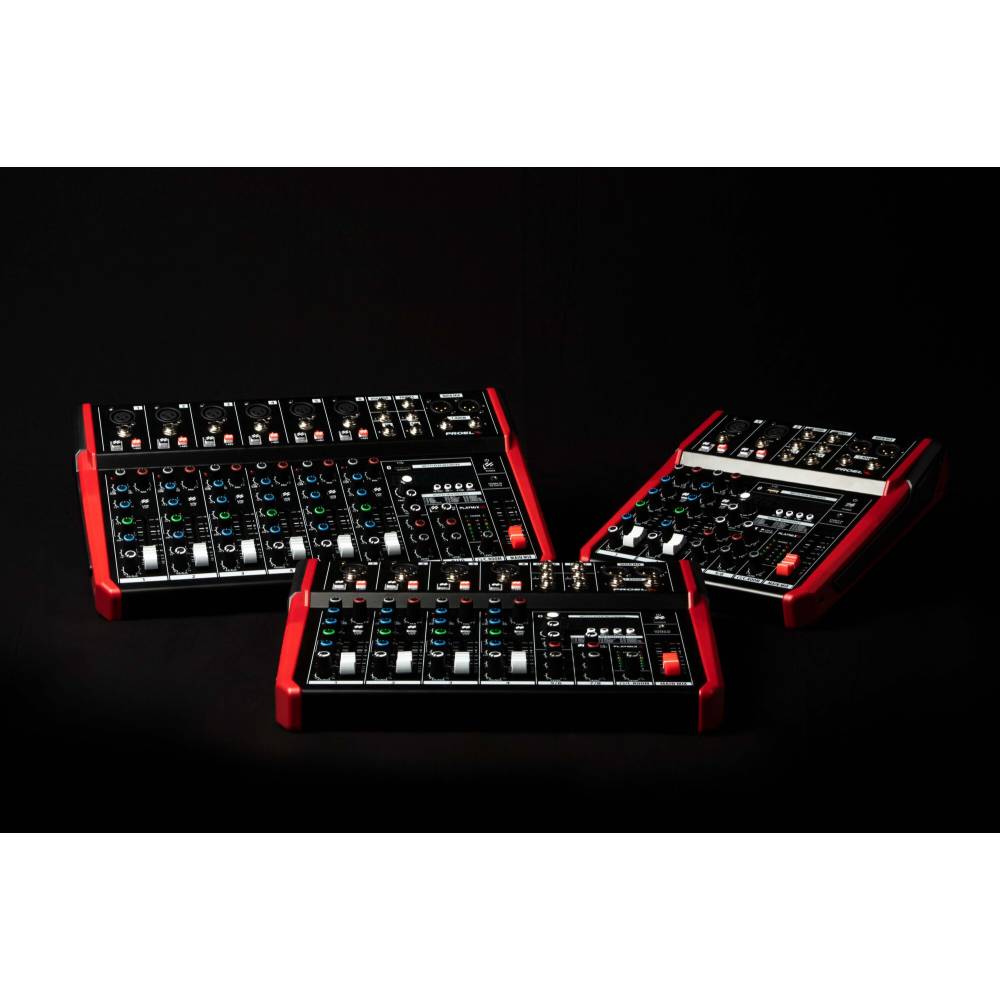

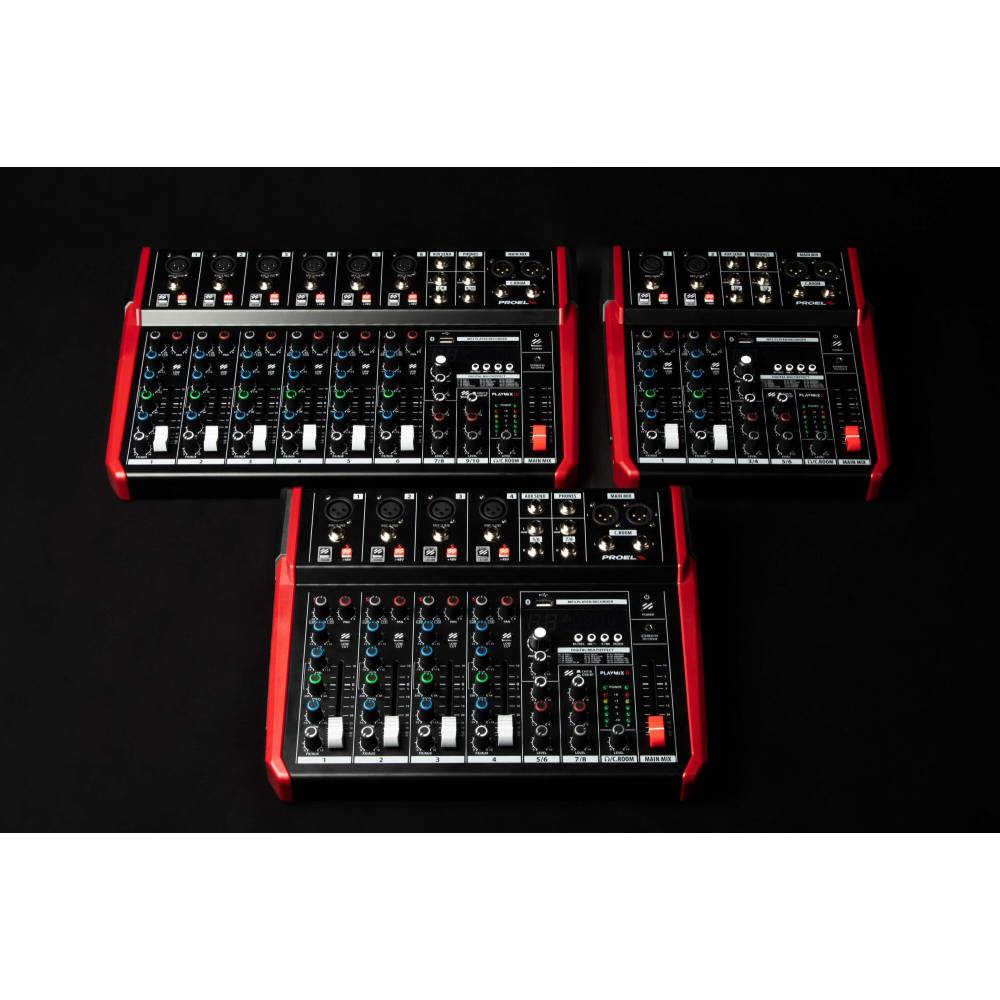

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

- A 48KHz stereo USB audio interface for playing/recording thru PC connection

- A built-in MP3 player from USB memory key or BLUETOOTH interface

- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.
