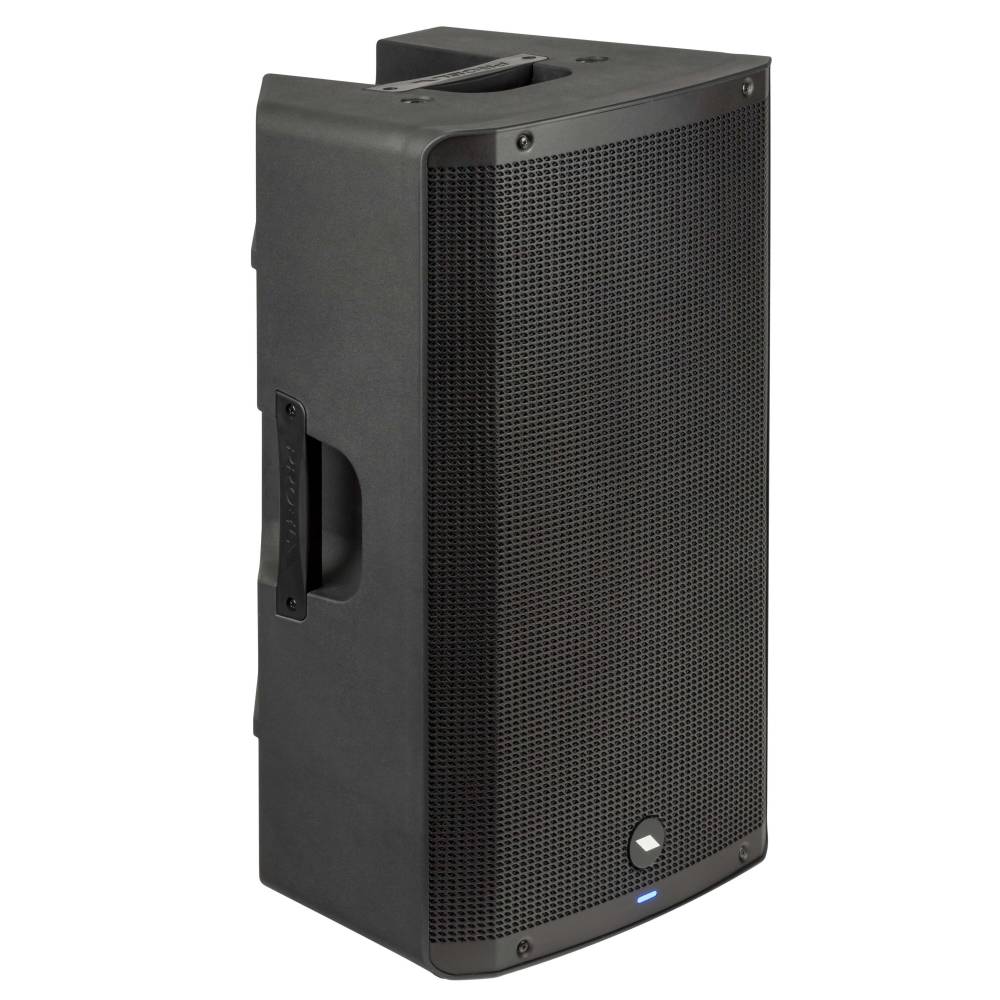

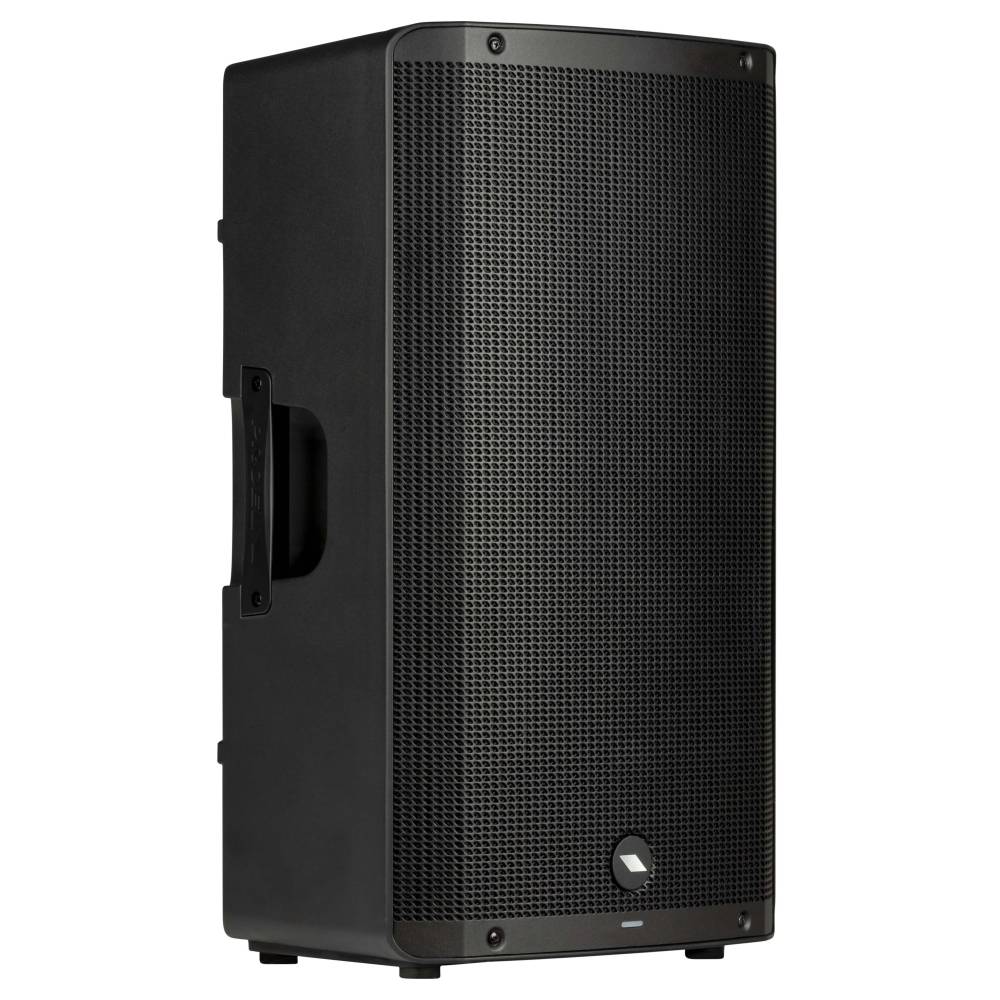

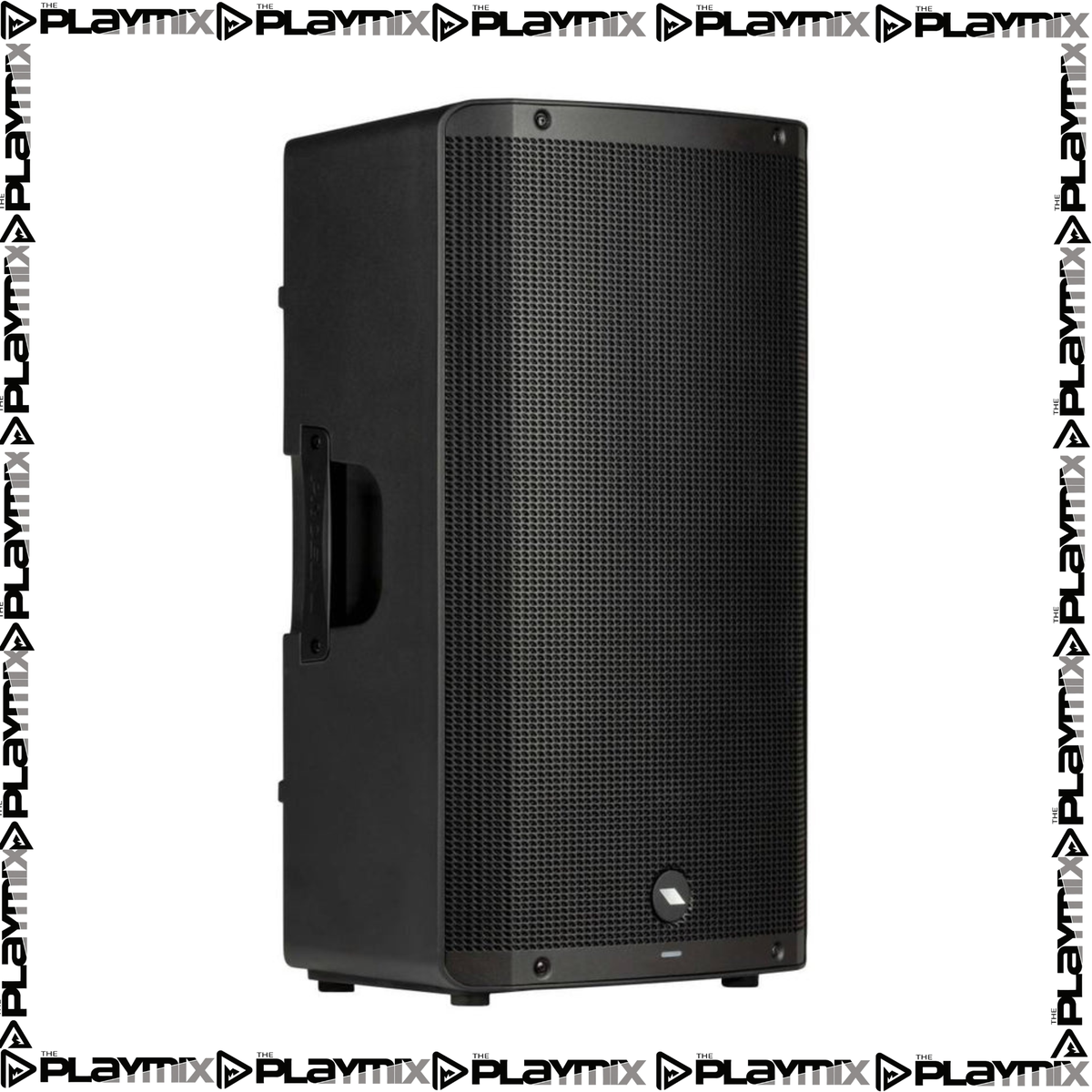

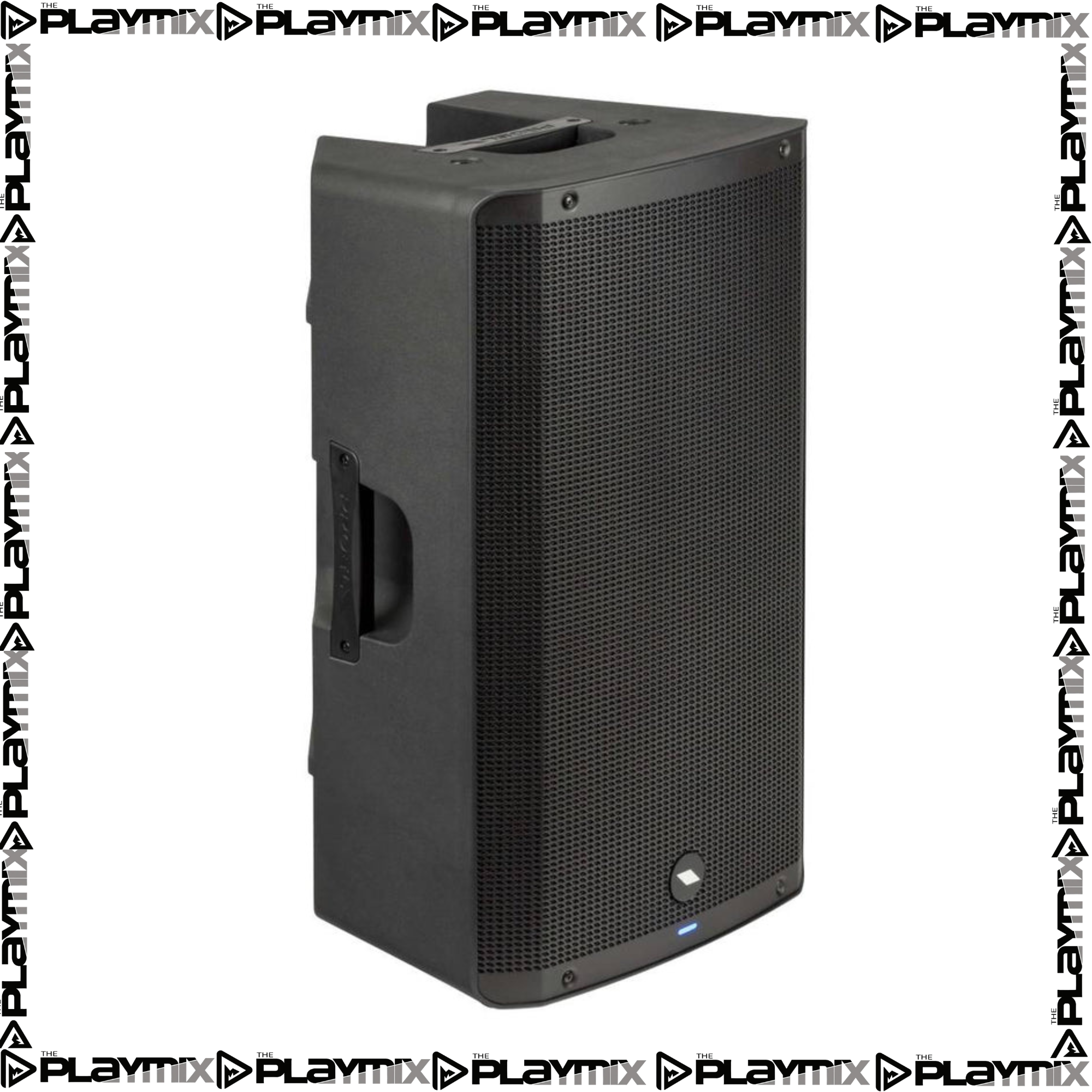

2-way active processed loudspeaker system

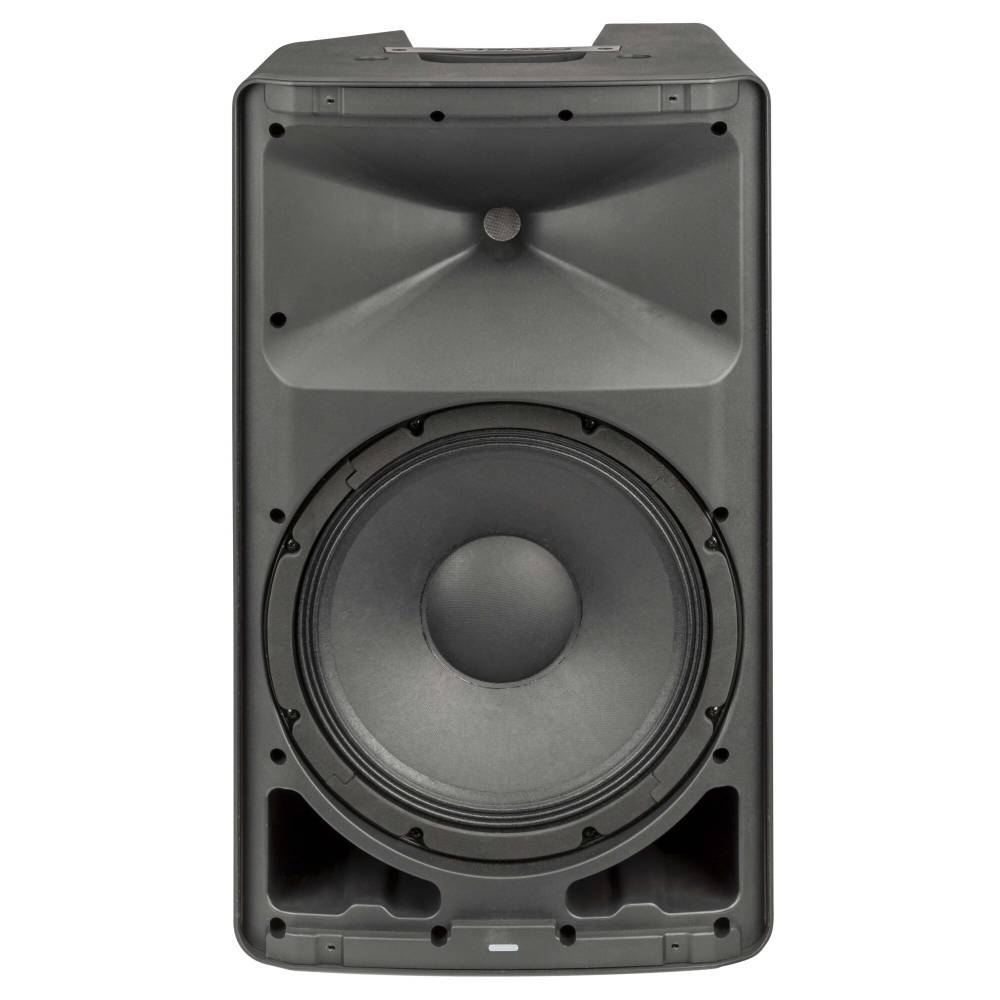

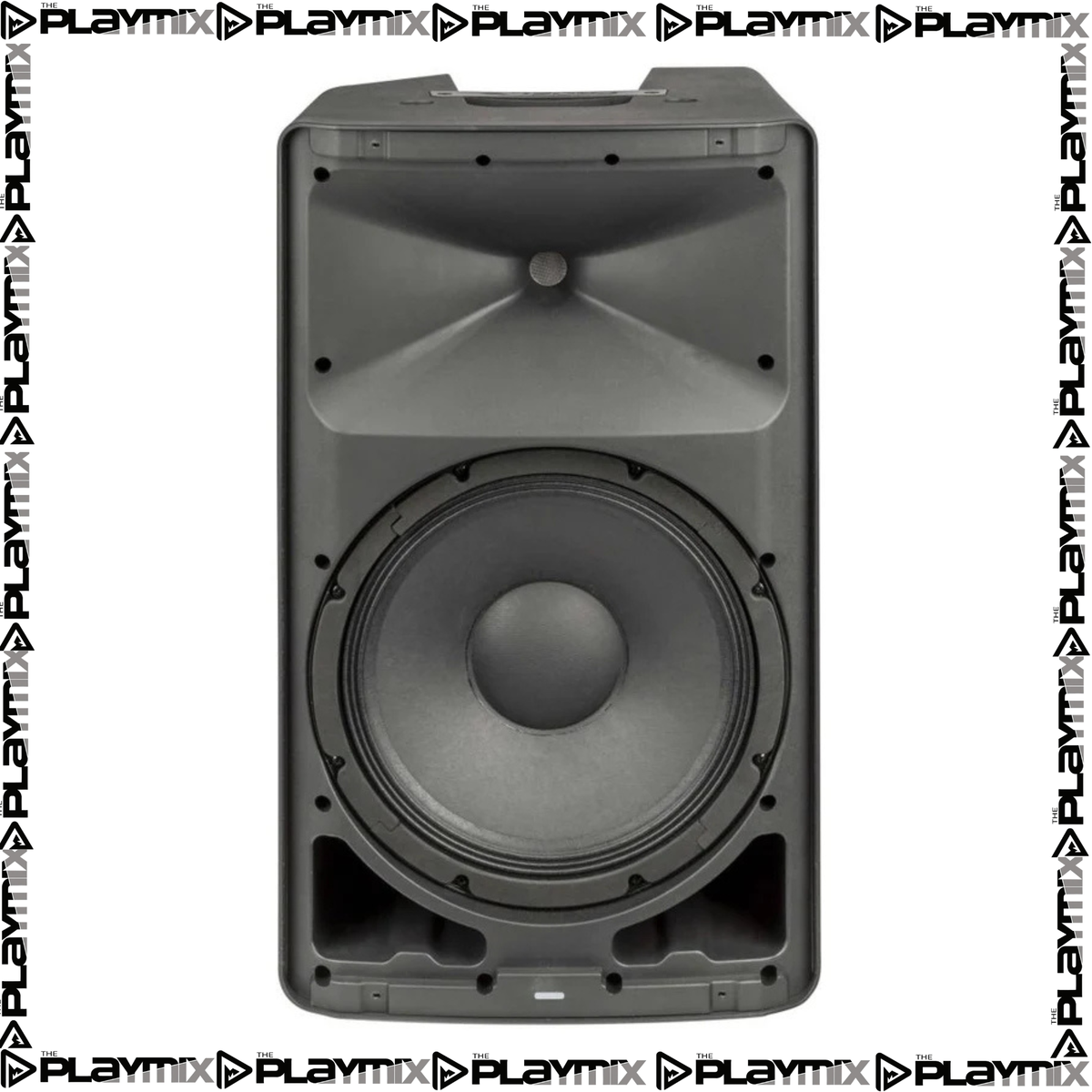

1” high-definition compression driver with 1.35” VC and titanium diaphragm

Wide-coverage 90° x 60° constant directivity horn

12” long-excursion woofer with 2” voice coil

High-efficiency 1000 W peak Class D power amplifier with SMPS

Built-in 3-channel mixer with MIC/LINE inputs and HIGH & LOW EQ controls

High-definition DSP with 24-bit converters and FIR filters

5 DSP presets (MUSIC, LIVE, DJ, MONITOR, SPEECH)

BLUETOOTH audio interface with STEREO LINK

Color LCD display for the DSP editing

SPL MAX: 127 dB

Frequency response: 50 Hz - 20 kHz

Lightweight, compact and ultra-durable PP cabinet

2 ergonomic handles for effortless transportation

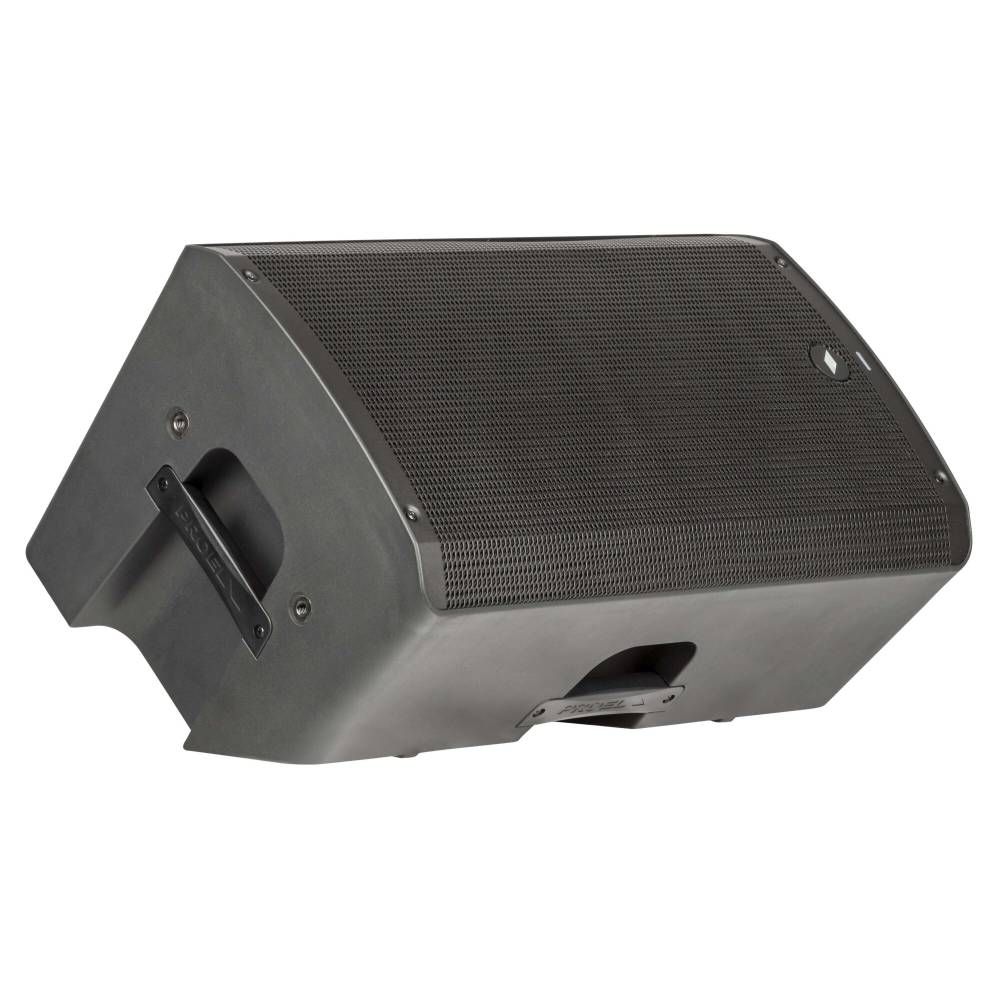

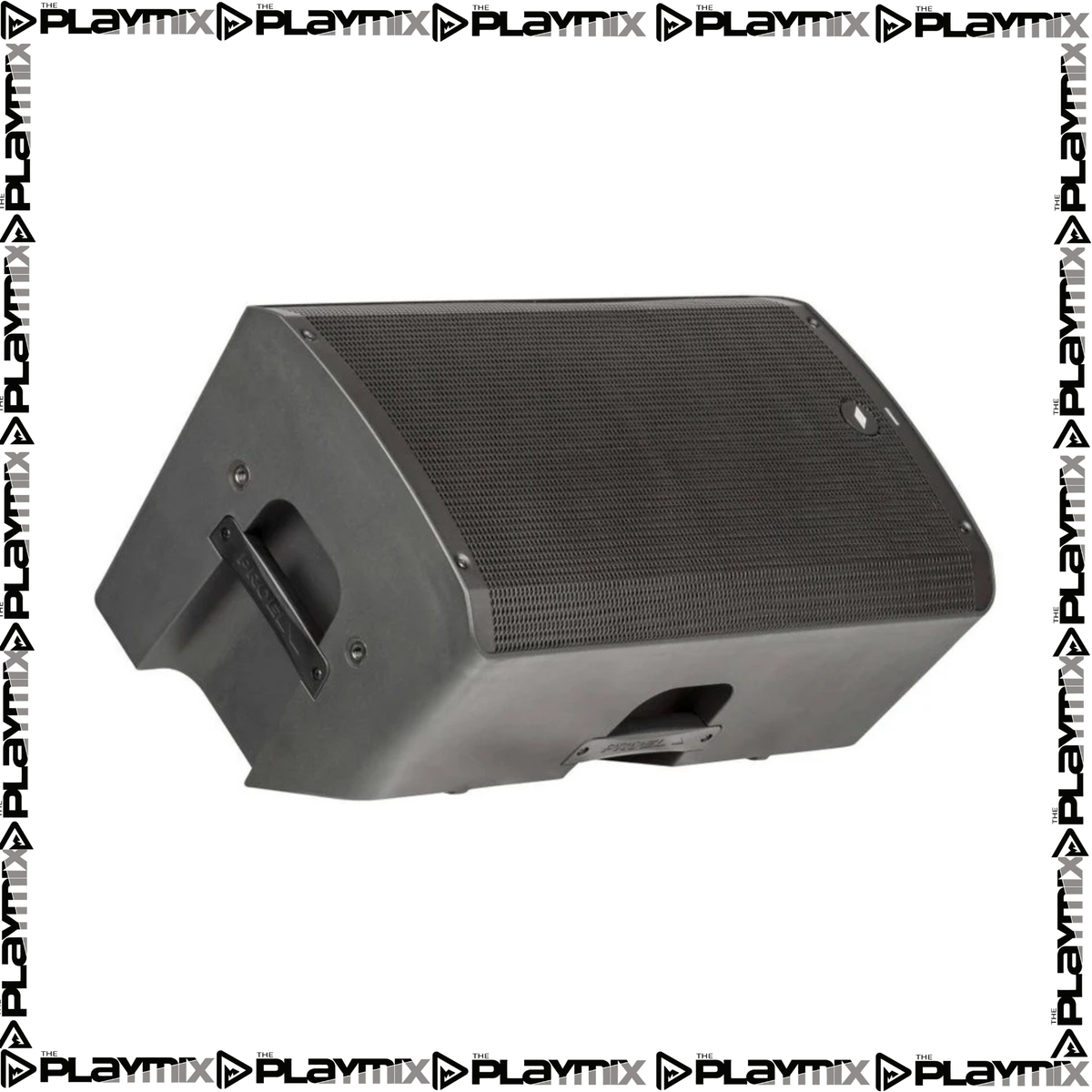

Slanted shape for the use as a stage monitor

Four M10 flying points

System type

2-way vented enclosure

High Frequency Device

1’’compression driver with 1.35" voice coil and titanium diaphragm

Low Frequency Device

12"woofer with 2" VC

Angular Coverage

90° H x 60° V

Total Peak Power

1000 W

HF Amplifier Continuous Power

100 W Class AB

LF Amplifier Continuous Power

400 W Class D

Power Supply

SMPS

System Processing

DSP

Frequency Response

50 Hz - 20 kHz

Max SPL

127 dB

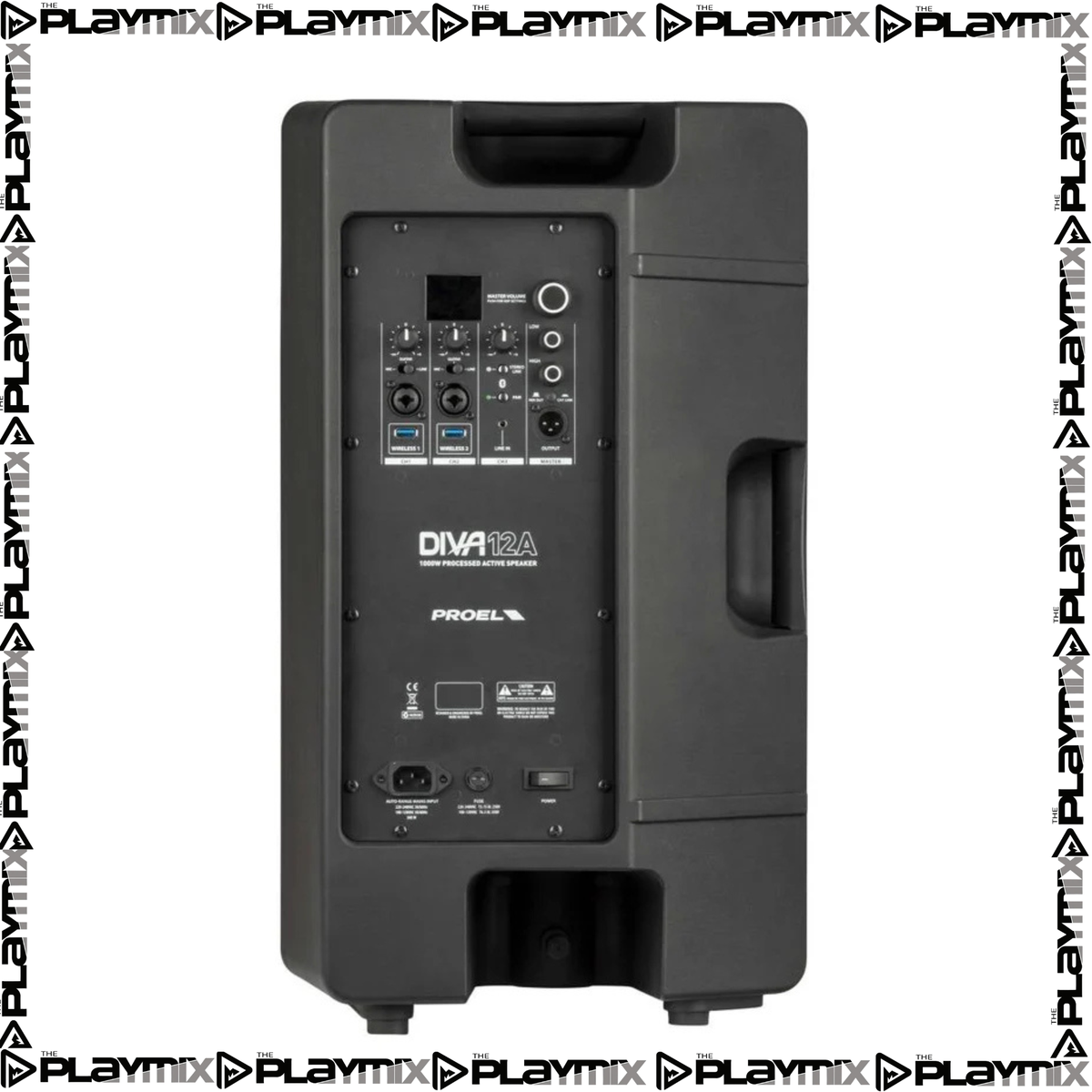

Inputs

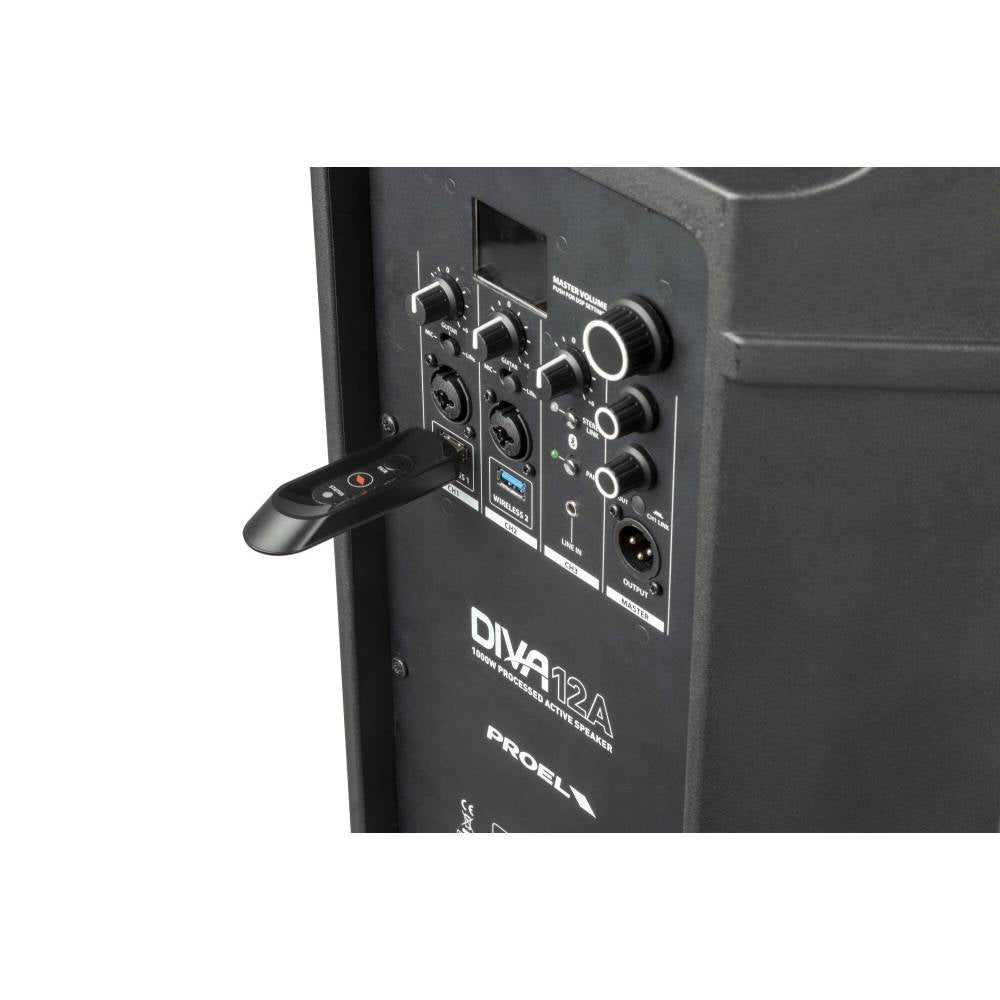

2 x MIC/LINE (COMBO), 1 X STEREO LINE (MINIJACK), 2 x USB WIRELESS

Outputs

1 x selectable MIX OUT / CH1 LINK (M-XLR)

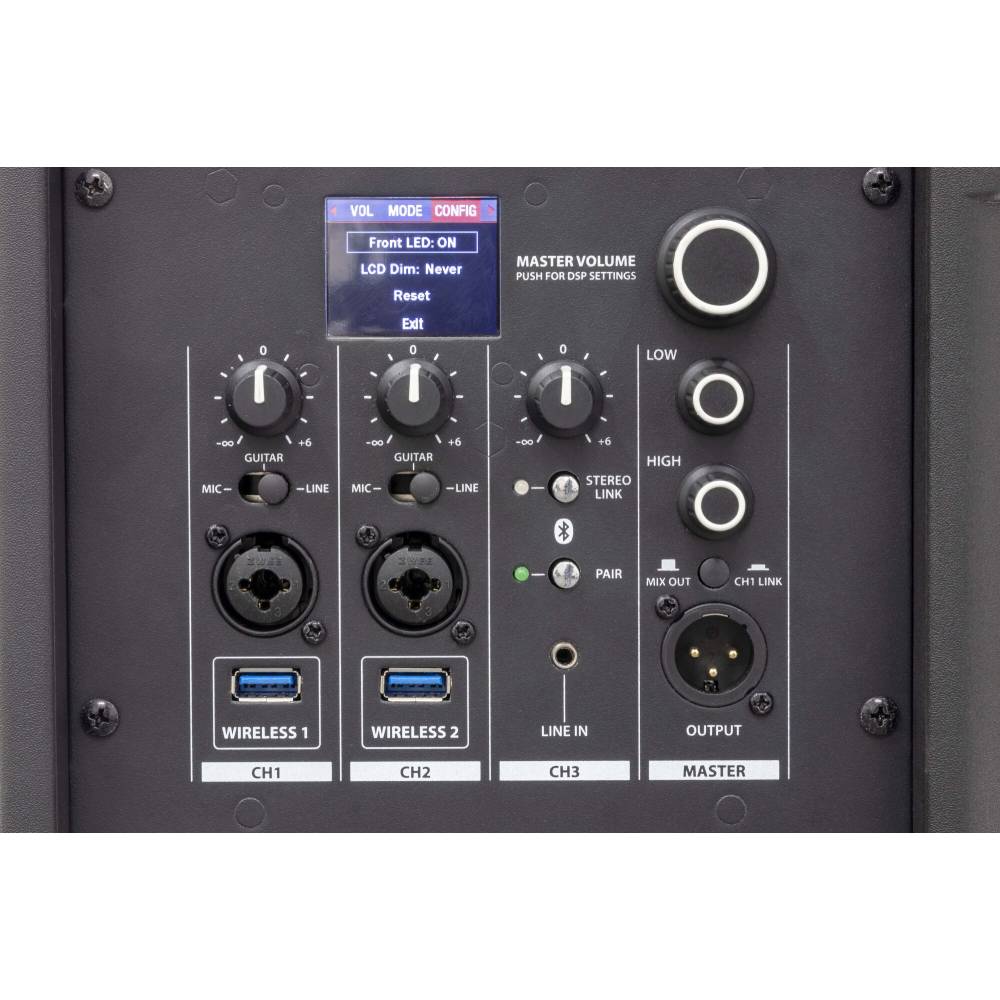

Controls

CHANNEL LEVEL, INPUT SELECTOR, HIGH & LOW EQ, ROTARY PUSH ENCODER, COLOR LCD

Bluetooth

Version 5.0, Audio Streaming, STEREO LINK (TWS)

Power Supply

100-120 V~ or 220-240 V~ at 50/60 Hz with self-switch

Rated Consumption*

300 W

Floor Monitor Angle

45°

Flying System

4 x M10 - top/bottom

Cabinet Material

Polypropylene

Handles

1 x top, 1 x side

Mounting Pole

1 x bottom

Dimensions (W x H x D)

364 x 617 x 346 mm

Weight

16.0 kg (35.3 lb)

* Rated consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
