Bi-amplified 2-way system

Studio-grade dome tweeter on elliptical waveguide

5” woofer with PP cone

200W total peak power

20W class AB amplifier for the high frequencies

80W class D amplifier for the low frequencies

XLR, 1/4” JACK and dual RCA connectors

2 active EQ presets available (MIDFIELD / NEARFIELD)

Dual CLIP LIMITER

SPL MAX 114 dB

Frequency response 70 Hz - 20 kHz

Lightweight polypropylene cabinet with extensive framing system

Symmetrical trapezoidal shape for the use also as a stage monitor

1 top handle

3 x M6 flying points

System type

2-way vented enclosure

High Frequency Device

Soft dome tweeter on elliptical waveguide

Low Frequency Device

5”woofer with PP cone

Angular Coverage

90° H x 60° V

Total peak power

200 W

HF Amplifier Continuous Power

20 W Class AB

LF Amplifier Continuous Power

80 W Class D

Power Supply

Linear

Processing

Analog

Frequency Response

70 Hz - 20 kHz

Max SPL

114

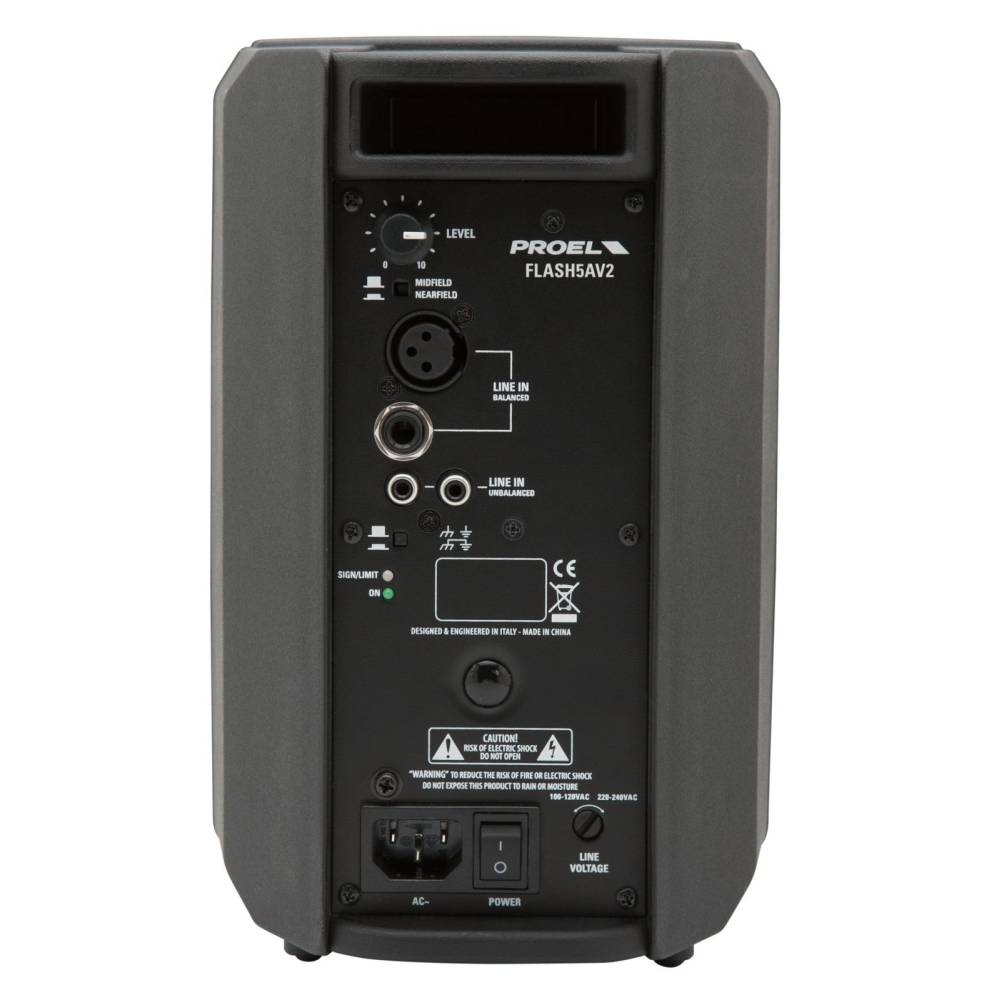

Connectors

IN/LINK: XLR F, 1/4" JACK, 2 x RCA

Controls

LEVEL, NEARFILED/MIDFIELD,  GND LIFT

Power Supply

230 VAC or 120 VAC 50/60 Hz

Weight

3.6 kg (7.9 lb)

Monitor Taper

42°

Flying System

3 x M6- top/bottom

Construction

Polypropylene

Cabinet Colour

Black/White

Dimensions (W x H x D)

175 x 265 x 176.5 mm
