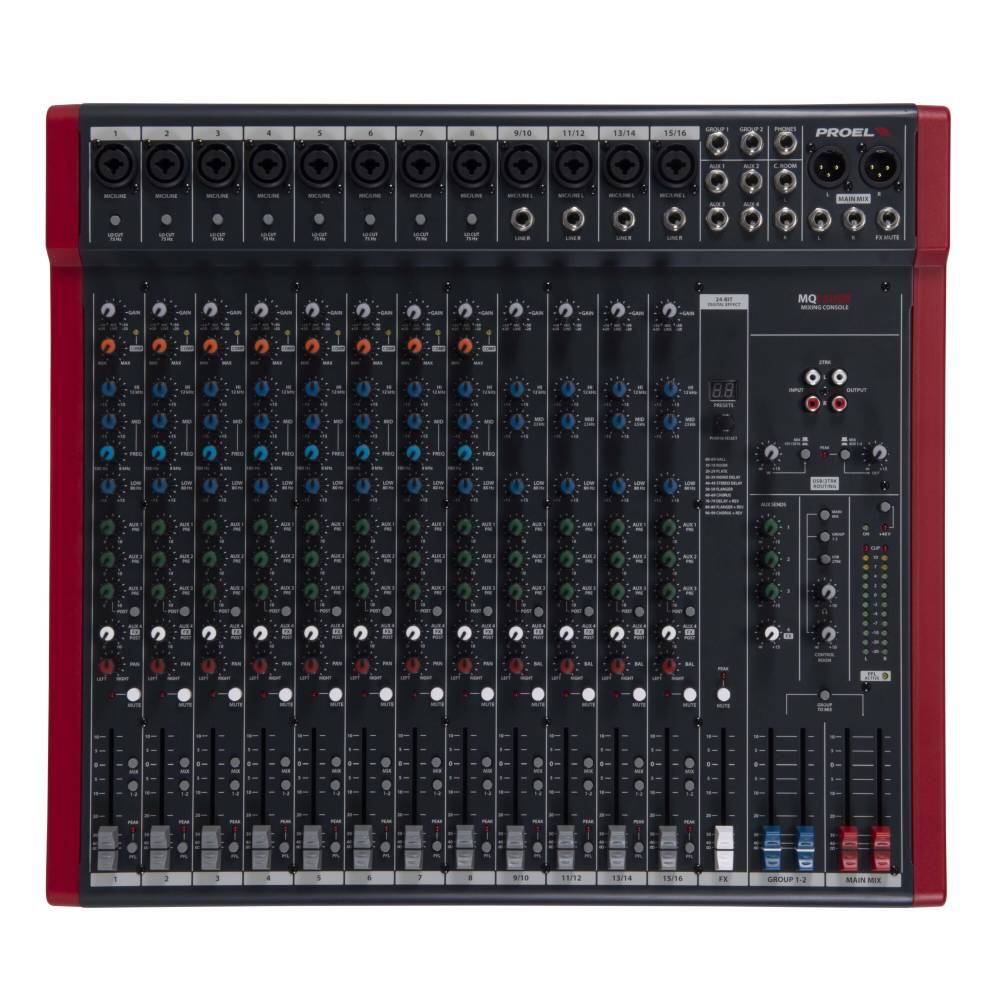

Proel Sound MQ16USB 16-ch Compact Mixer

Name: Proel Sound MQ16USB 16-ch Compact Mixer
Brand: Proel
Price: 899.00 SGD
Availability: InStock

MQ is a series of mixers created by PROEL to offer in a very compact and stylish package a high input density, a full set of features and a superior audio quality, at a very convenient price point. The MQ series includes 5 models with 6, 10, 12 and 16 inputs, able to satisfy most of the sound reinforcement applications. Carefully designed and engineered in Italy by PROEL R&D, MQ mixers are hosted in ultra-rugged cases, providing extended durability for a stage-proof use.

The smallest models of the series, MQ6 and MQ6FX, offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound. The MQ6FX, despite its small size, includes a high-quality 24-bit DSP able to provide musicians and performers with studio-grade effects.

MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection.

MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders.

The top-of-the-line MQ16USB feature 16 inputs and 12 microphone channels together with sweep mids and one-knob intelligent COMPRESSORS on mono channels, 4 AUX sends, STEREO GROUP bus and 60mm control faders.

Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

View full details

All Categories Effect and Signal Processors

Proel Sound MQ16USB 16-ch Compact Mixer

1 / 8

2 / 8

3 / 8

4 / 8

5 / 8

6 / 8

7 / 8

8 / 8

❮ ❯

MQ10FX, together with 3-band EQ and one-knob intelligent COMPRESSORS, offers also 100 DSP presets with a convenient LED display for the selection.

MQ12USB additional features include an USB audio I/O interface and extended mixing capability with MONITOR send, STEREO GROUP bus and 45mm control faders.

Optional padded carrying bags and metal brackets for 19” rack mounting are available for selected models.

$899.00 SGD

Sale Sold out

The shipping costs are calculated on the checkout page.

In stock

Quantity

Specifications

Compact 16-input 4-bus mixer with effect and USB I/F

8 MONO MIC/LINE inputs and 4 STEREO MIC/LINE inputs

12 low-noise, very high-headroom microphone preamplifiers

PHANTOM power

‘One-knob’ COMPRESSOR with LED indicator on MONO channels

3-band EQ with sweep mids and LO-CUT filter

3 AUX sends pre-fader e 1 AUX send post-fader

24bit studio-grade digital effect with 100 presets, 2-digit display and footswitch MUTE

Built-in USB interface with routing options for PC recording and playback

GROUS 1&2 with MIX routing and output

2-TRACK, HEADPHONES and CONTROL ROOM outputs

Electronically balanced MAIN MIX outputs with XLR-M and ¼” JACK connectors

Two 12-LED VU-METERS

Universal switching power supply 100-250V

Stage-proof construction and ultra-rugged metal chassis

Designed and engineered in Italy by PROEL

Technical Data

ONO INPUT CHANNEL

Mic Input

sensitivity

from -10 to -50 dB

Balanced XLR-F

impedance

2 Kohm

Line Input sensitivity from +20 to -20 dB

Balanced JACK

impedance

10 Kohm

Lo cut

75Hz, 18dB/oct.

HIGH (shelving)±15 dB @ 12 KHz

MID (peaking)±15 dB from 100 Hz to 8 kHz

LOW (shelving)±15 dB @ 80 Hz

Compressor

FetCH 1-8, 1-knob

STEREO INPUT CHANNEL

Mic Input

sensitivity

from -10 to -50 dB

Balanced XLR-F

impedance

2 Kohm

Line Input

sensitivity from +20 to -20 dB

Balanced JACK

impedance

10 Kohm

HIGH (shelving)±15 dB @ 12 KHz

MID (peaking)±15 dB @ 2.5 KHz

LOW (shelving)±15 dB @ 80 Hz

MASTER SECTION

MAIN MIX

nom. out level +4 dBu

Balanced JACK and XLR-M

C. ROOM output

nom. out level 0 dBu

Unbalanced JACK

GROUP output

nom. out level +4 dBu

Balanced JACK

FX/AUX output

nom. out level 0 dBu

Unbalanced JACK

2TRK

nom. out level 0 dBu

Unbalanced RCA

nom. in level 0 dBu

Unbalanced RCA

HEADPHONES

min. impedance

32 ohm

max. out level

(2x) 193 mW

Stereo JACK

USB

Stereo IN/OUT, 16-bit converter, 48 KHz sample rate

Type B

DIGITAL EFFECT PROCESSOR

Effects

100 presets

A/D and D/A converters

24 bit

DSP resolution

24 bit

Controls

2-DIGIT display, DIAL, PEAK LED, MUTE switch, MUTE footswitch

GENERAL SPECIFICATIONS

Maximum level

all outputs +22 dBu

Crosstalk

meas. at 1 KHz> 82 dBu

HUM & Noise

unweighted< -93 dBu

THD + Noise

at +4dB, 1kHz< 0,008 %

Dimensions (WxHxD)

481 x 432 x 104 mm

eight

6,50 kg

POWER REQUIREMENTS

Mains Supply Voltage

110-240 VAC (±10%) 50 / 60 Hz available with

Europe mains cord (Shucko plug)

US mains cord (NEMA 5-15P plug)

UK mains cord (BS1363 plug)

Consumption

35 W
