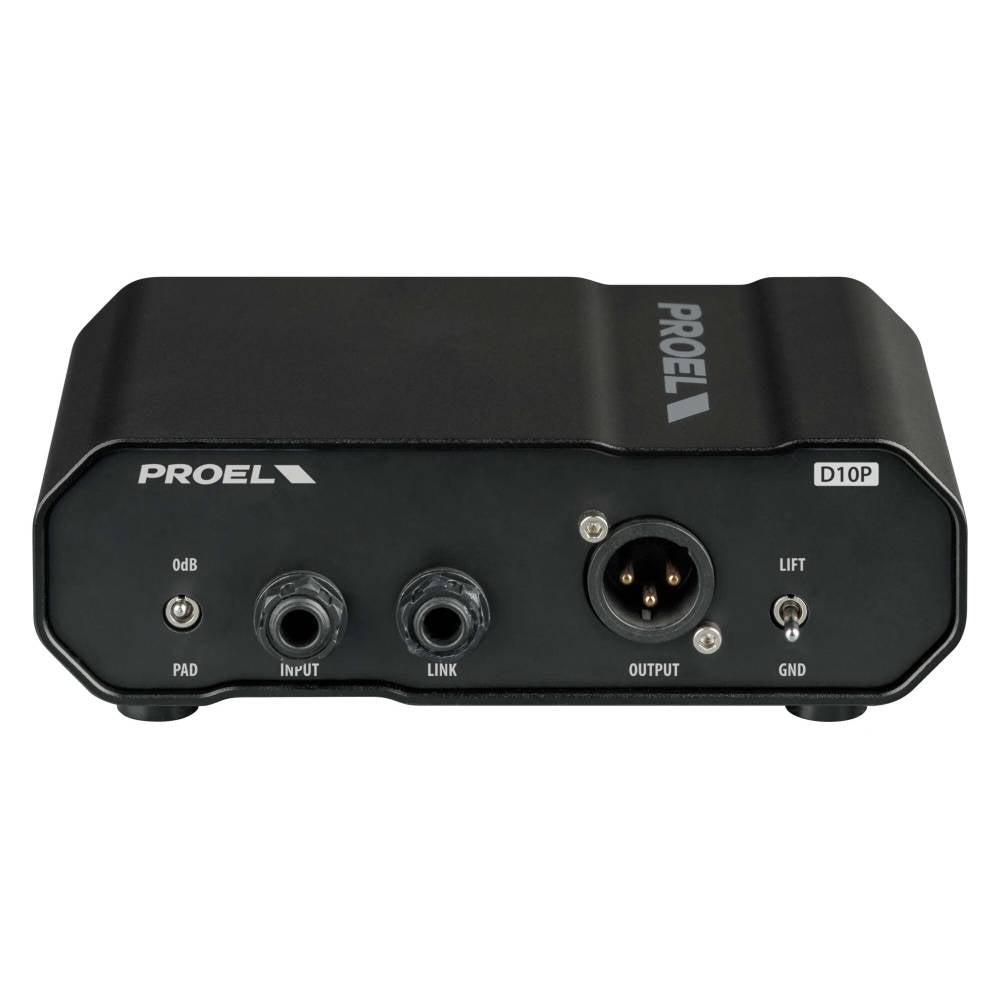

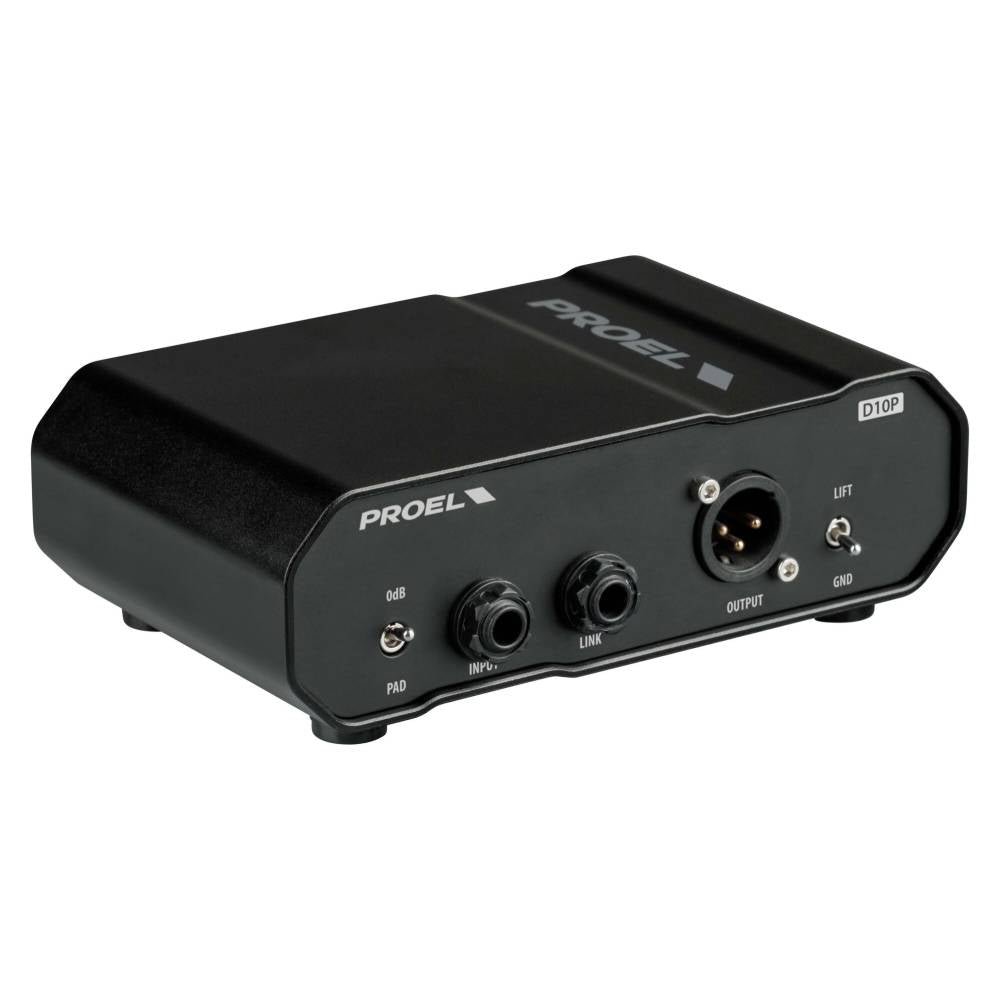

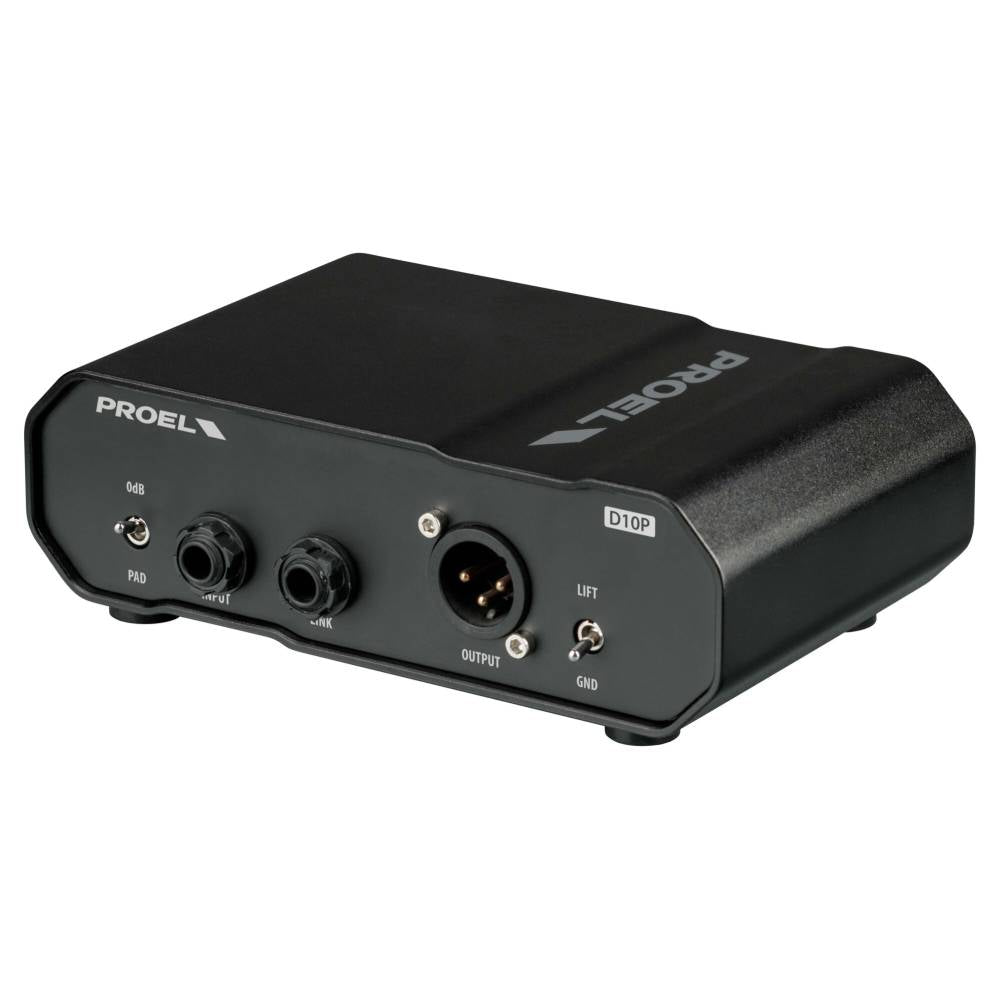

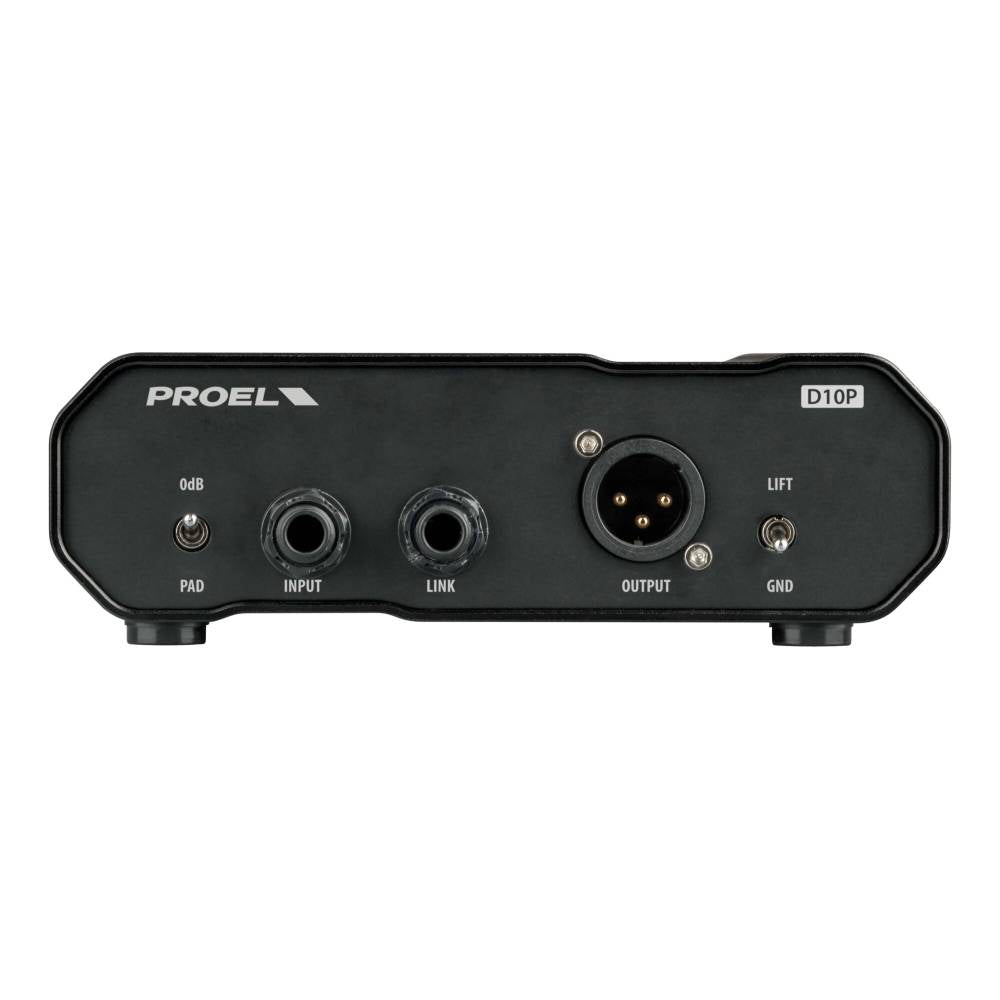

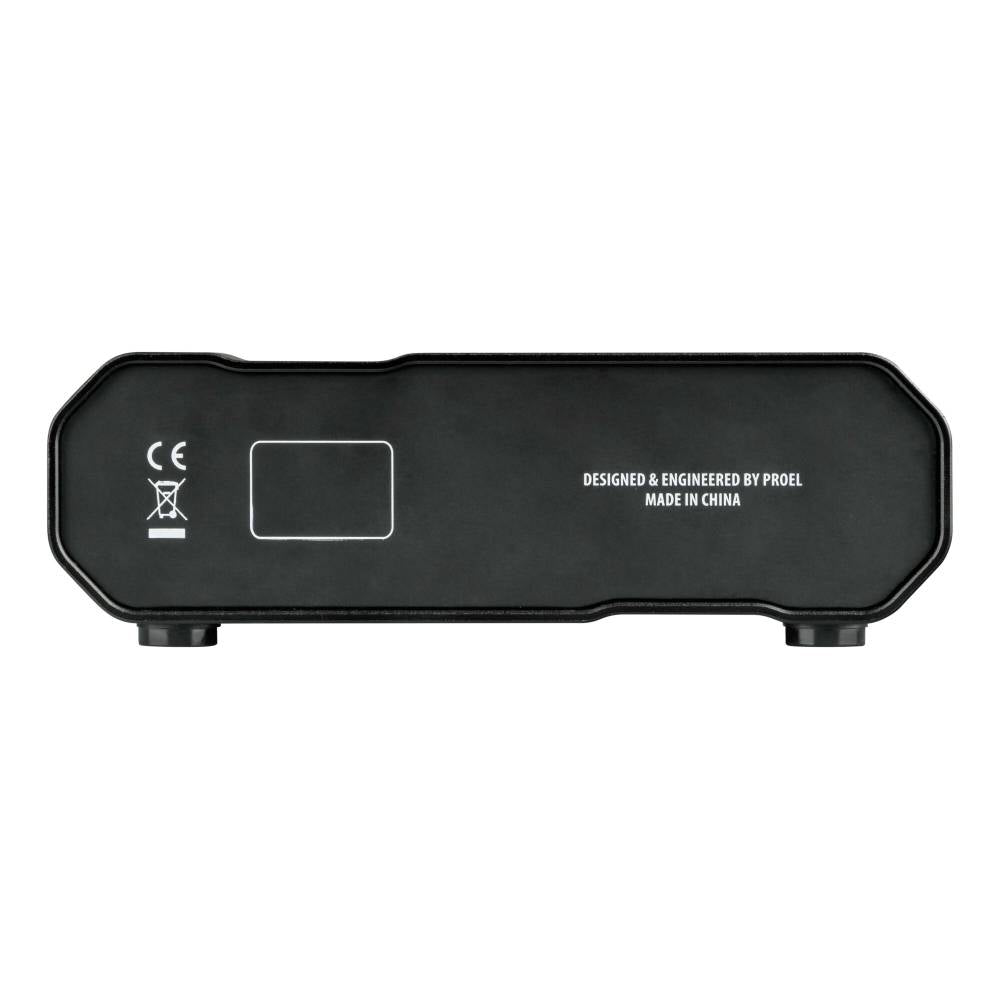

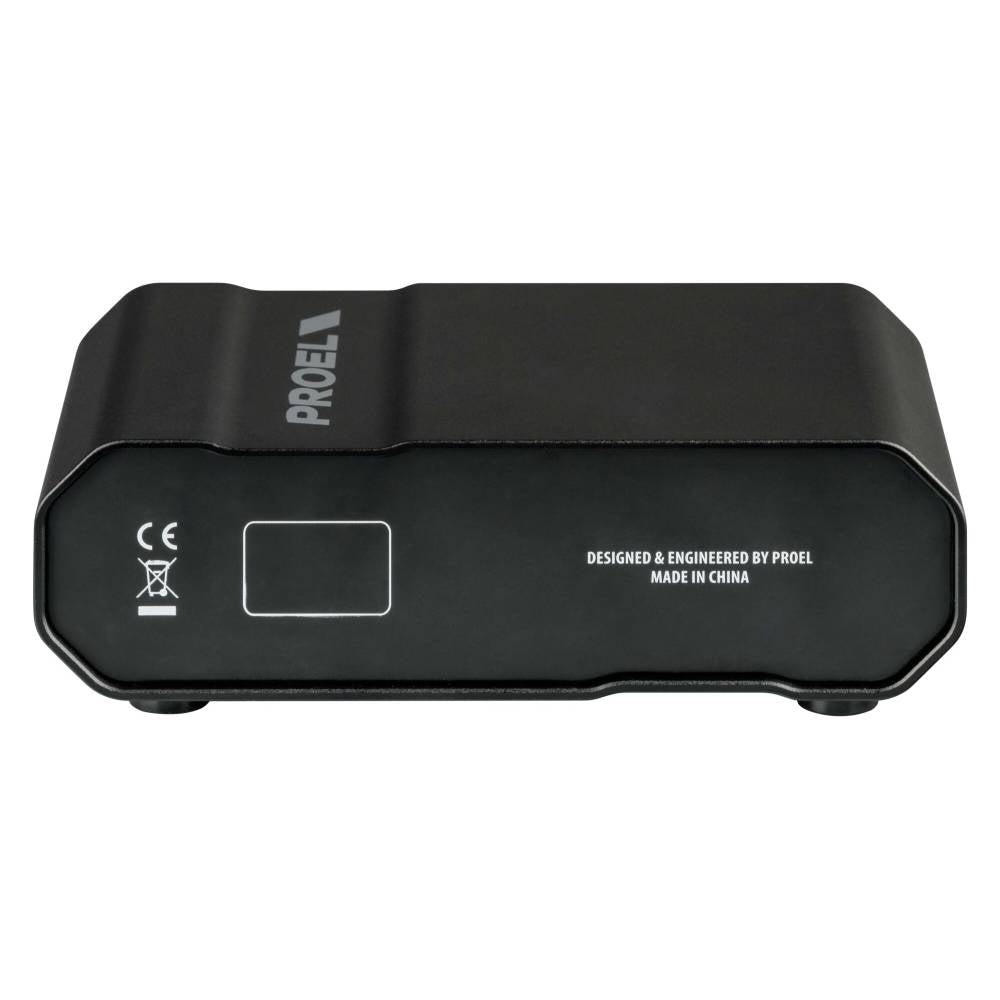

Proel Sound Passive Direct Injection Box D10P
The shipping costs are calculated on the checkout page.
Couldn't load pickup availability
Specifications
Specifications
Technical Data
Technical Data
Passive 1 channel D.I. box - 20 dB Attenuation PAD - GND lifting - Shielded Transformer inside - Input LINK OUTPUT
DI Boxes perform several important functions: they are designed for impedance matching and balancing the signal of a guitar, a keyboard or any line-level output source, and for injecting directly the signal with very long connections to the XLR microphone inputs of a mixing console.
D10P is a passive direct box with transformer and does not require any external power such as phantom power or batteries to work. The advantage of a transformer is the possibility to avoid any electrical connection between the sound source and the mixer. This provides two huge benefits: with no electrical path, ground loops are eliminated and the cancellation of common-mode noise, like hum, is possible.
