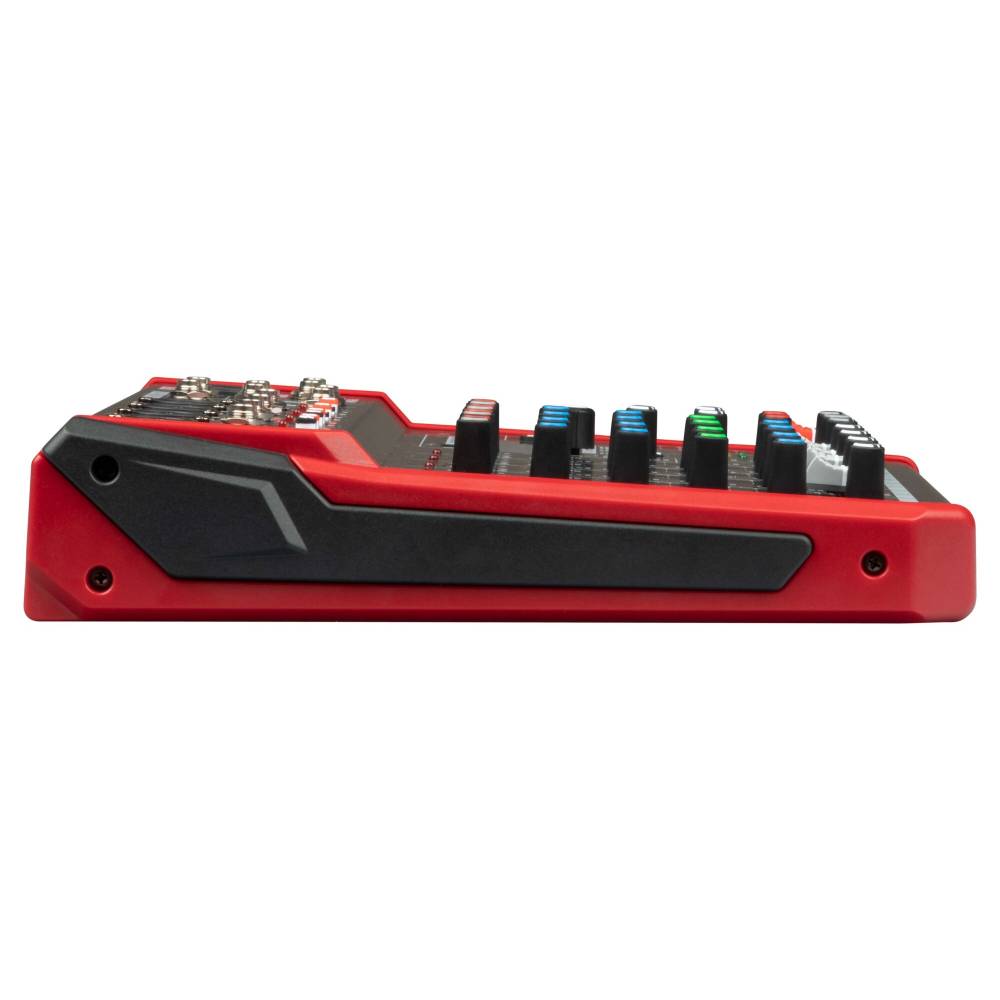

Proel Sound PLAYMIX8 8-channel Compact Mixer

Proel Sound PLAYMIX8 8-channel Compact Mixer

1 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
2 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
3 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
4 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
5 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
6 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
7 / 7
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Proel Sound PLAYMIX8 8-channel Compact Mixer
Regular price $269.00 SGD
Sale price $269.00 SGD Regular price
Sale Sold out

The shipping costs are calculated on the checkout page.

In stock

Specifications

Technical Data

MONO INPUT CHANNEL

Mic Input

sensitivity from -10 to -45 dB

Balanced XLR-F

 impedance

1 Kohm

 Line Input

sensitivity from +20 to -15 dB

Balanced JACK

 impedance

20 Kohm

 Lo cut

 80Hz, 6dB/oct.

 EQ

HIGH (shelving)±15 dB @ 12K Hz

MID (peaking)±12 dB @ 250-6K Hz

LOW (shelving)±15 dB @ 80 Hz

STEREO INPUT CHANNEL

Line Input

sensitivity from +12 to -15 dB

Balanced JACK

 impedance

20 Kohm

Stereo Mini JACK

MASTER SECTION

MAIN MIX

nom. out level +4 dBu

Unbalanced XLR-M

C. ROOM output

nom. out level+4 dBu

Unbalanced JACK

SEND output

nom. out level+4 dBu

Unbalanced JACK

HEADPHONES

min. impedance

64 ohm

Stereo JACK

Bluetooth Version
5.0, Audio Streaming

 USB Audio Interface

 Stereo IN/OUT, 16-bit converter

44.1 KHz (PENDRIVE) / 48 KHz (PC) sample rate

Type A

DIGITAL EFFECT PROCESSOR

Effects

100 presets

 A/D and D/A converters

 24 bit

 DSP resolution

 24 bit

 Controls

 2-DIGIT display, DIAL, LEVEL

 GENERAL SPECIFICATIONS

Maximum level

all outputs

+15 dBu

Crosstalk

meas. at 1 KHz> 75 dB

 HUM & Noise

unweighted< 90 dB

 THD + Noise

at +4dB, 1kHz< 0,009 %

 Dimensions (WxHxD)

331 x 274 x 61 mm

 Weight

 2,50 kg

 POWER REQUIREMENTS

Supply use only supplied AC/DC ADAPTER 5VDC 1A

 Mains Supply Voltage

 100-240 VAC (±10%)  50/60 Hz

 Consumption

 15 W





PLAYMIX is a series of mixers created by PROEL to offer in a very compact and stylish package a high inputs density, a full set of features and a superior audio quality, at a very convenient price point.

PLAYMIX mixers are available in 3 models, with the same channel and master functions, but offering 6, 8 or 10 inputs respectively. The mono MIC/LINE channels feature low-noise, high-headroom microphone preamps, 3-band EQ with sweep MIDs and HPF, and 60mm control faders, for a full control of your sound.

All models feature an advanced DIGITAL section with LCD display, including:

- A high-quality 24-bit built-in DSP with 100 studio-grade presets of single and combined effect (REVERBS, DELAYS, MODULATIONS)

- A 48KHz stereo USB audio interface for playing/recording thru PC connection

- A built-in MP3 player from USB memory key or BLUETOOTH interface

- On-the-go stereo recording on USB memory key

Carefully designed and engineered in Italy by PROEL, PLAYMIX mixers are hosted in rugged cases, providing extended durability for a stage-proof use and they offer in an ultra-compact format the performance of professional consoles, delivering a clean and accurate sound for a wide range of applications.
