Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System

Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System

1 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
2 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
3 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
4 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
5 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
6 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
7 / 7
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Proel Sound SESSION 4 Professional Mono/Stereo Column Audio System
Regular price $2,178.91 SGD
Sale price $2,178.91 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

2.1 processed active system with two TOPS and one SUBWOOFER

TOP

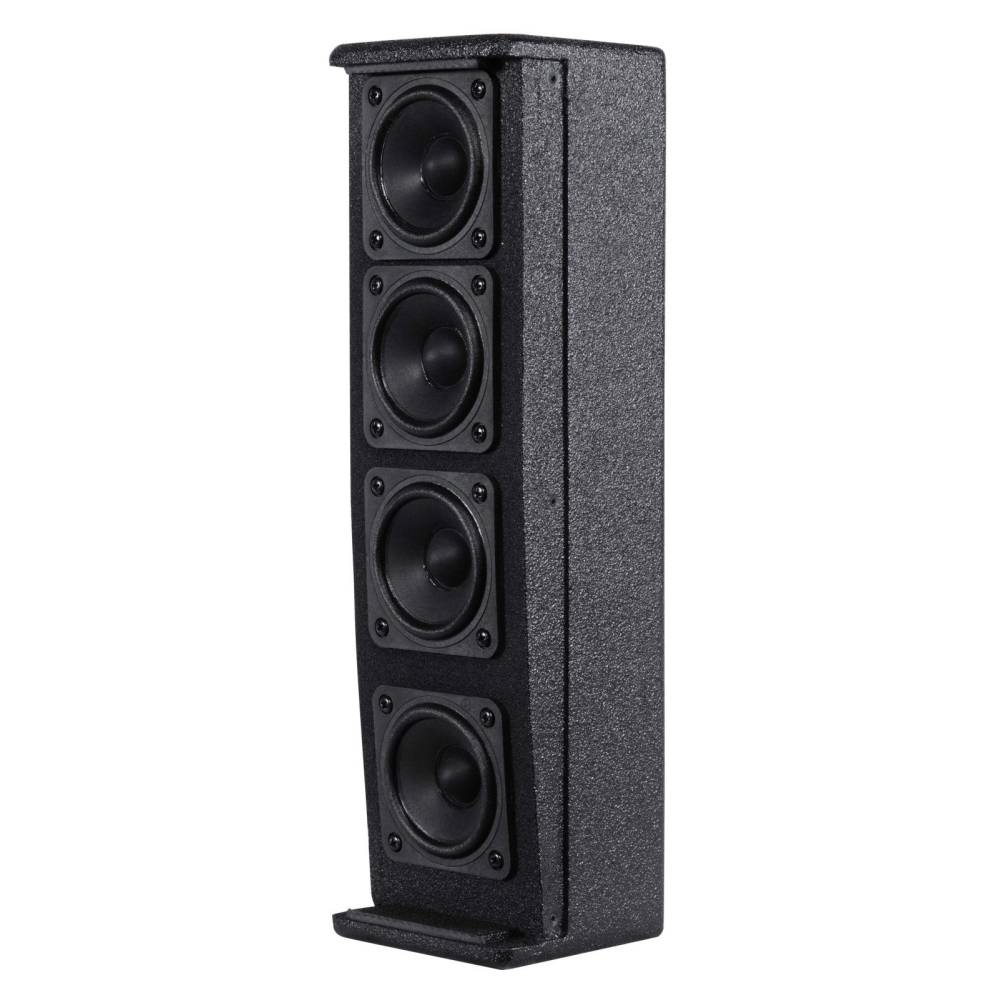

Four 2.75” neodymium full-range speakers in Vertical Array configuration

Logarithmic arrangement of the speakers with progressive tilt for an increased vertical coverage

Fast-coupling of the two tops with integrated power signal link

SPEAKON connector

35mm standard pole socket

Plywood cabinet with black ultra-durable polyurethane paint

Reinforced metal grille with dust protection

SUB

Two high-excursion 6.5” woofers in BAND PASS configuration

Plywood cabinet with black ultra-durable polyurethane paint

Two built-in spaces for hosting the tops, for an easy transport

Two ergonomic handles

M20 pole socket

SYSTEM

3-channel Class D SMPS power amplifier

1200W total peak power

Two MIC/LINE (XLR-F) inputs + two LINKS (XLR-M)

Two SPEAKON output connectors for the TOP

Control & connection panel on the cabinet’s top for an easy access

High-definition CORE LT DSP with A/D and D/A 24 bit converters and Dynamic EQ

User-friendly control interface with single knob and large LCD

4 DSP presets (MUSIC, LIVE, DJ, SPEECH)

3 selectable system’s configurations: STEREO, MONO and DOUBLE

Bluetooth stereo interface

SPL MAX (system): 122 dB peak

Frequency response: 45 Hz - 18 kHz

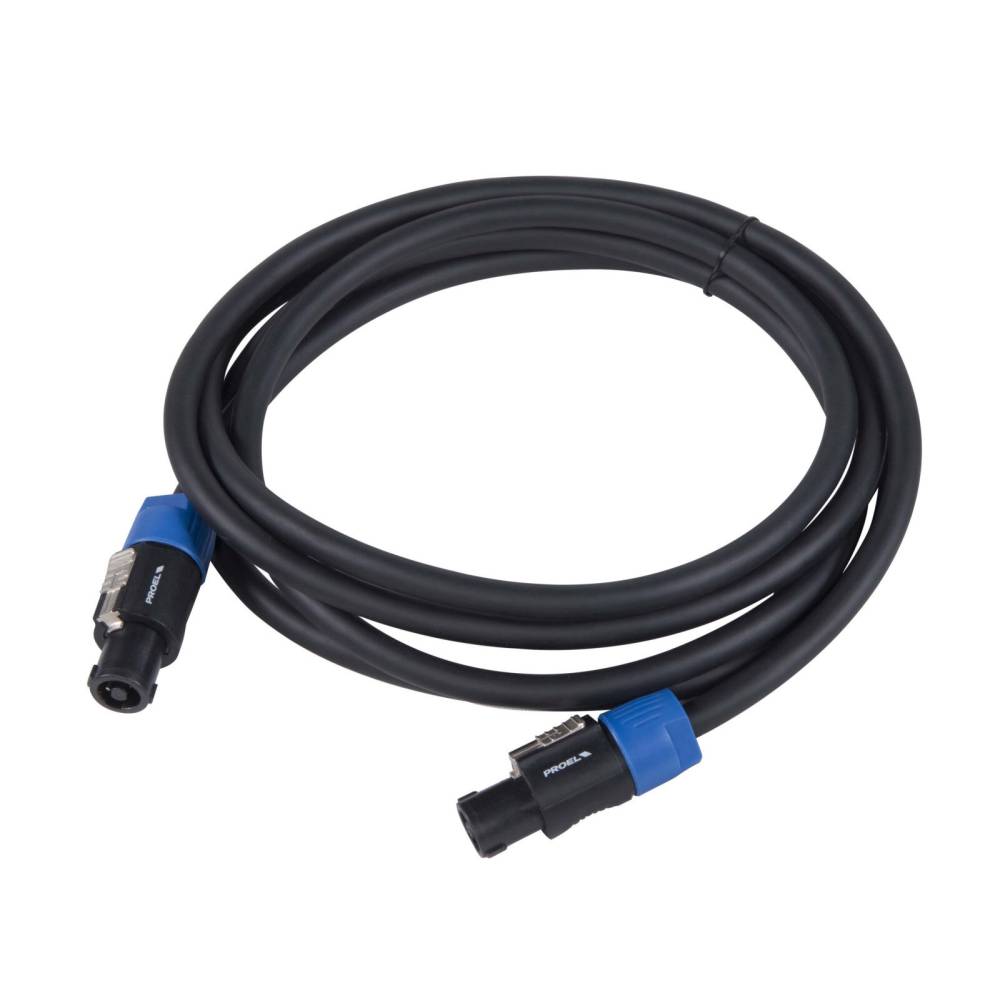

Included accessories: two-pieces 35mm sub-top pole M20 thread, 4-wire SPEAKON cable (2mt), carrying bag for the two tops

Technical Data

System


 System Type
Portable Powered 2.1 System with Two Line Array Tops and One Subwoofer

Maximum SPL Output

122 dB peak system output (pink noise)

Frequency Response (-10dB)

45Hz – 18kHz

Speakers

LF Driver
2 x 6.5" (165mm) woofer in BANDPASS configuration

HF Driver
8 x 2.75" (70mm) neodymium drivers (4 for each TOP)

Coverage Pattern
100° x 50°

Amplifier

Type Class D with SMPS

System Power Rating

300 Watts LF, 2x150 Watts HF Continuous, 1200W Peak

Channels
2 MIC/LINE selectable inputs


Connectors
2 x COMBO (INPUTS), 2 x XLR-M (LINK), 2 x SPEAKON (POWER OUTPUTS)


Controls
1 x LCD with Data Encoder


Processing
24bit / 48KHz CORE DSP, 2-band EQ Selectable CONFIGURATION and EQ PRESETS, Digital Limiting


Wireless Audio
Bluetooth built-in receiver


General Specifications

Cabinet Material
Plywood

Finishing
High-strenght polyurethane black paint

Grille
Powder coated perforated steel

Handles
2 x sides (SUB)

Pole Socket
1 x top M20 (SUB), 1 x bottom 35mm (TOP)

Included Accessories
M20 / 35mm telescopic pole, 4-wire SPEAKON/SPEAKON cable, 2 x SAT cover

AC input
230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector

Dimensions (W x H x D)
TOP: 100x358x100 mm, SUB: 420x480x460 mm

Weight
TOP: 1.5 kg (3.3 lbs), SUB: 22 kg (48.5 lbs), SYSTEM: 25 kg (55.1 lbs)



3-CH Class D SMPS amp. - 1200W peak power. - 2 MIC/LINE IN + 2 LINKS. - CORE LT 24 bit DSP with Dynamic EQ. - 4 DSP presets. - STEREO, MONO and DOUBLE mode. - Bluetooth interface. - SPL MAX: 122 dB peak. - Freq range: 45 Hz - 18 kHz. - Sub-top pole, SPEAKON cable ang bag for the tops included

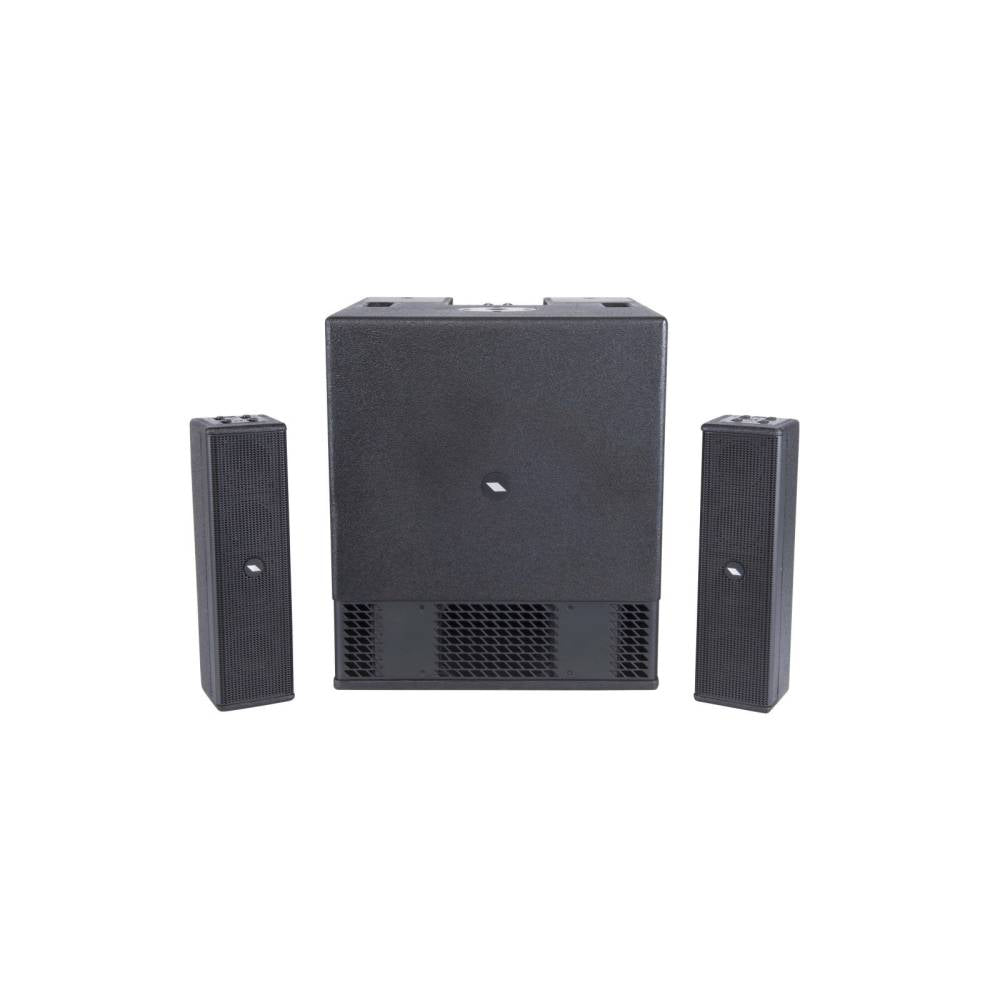

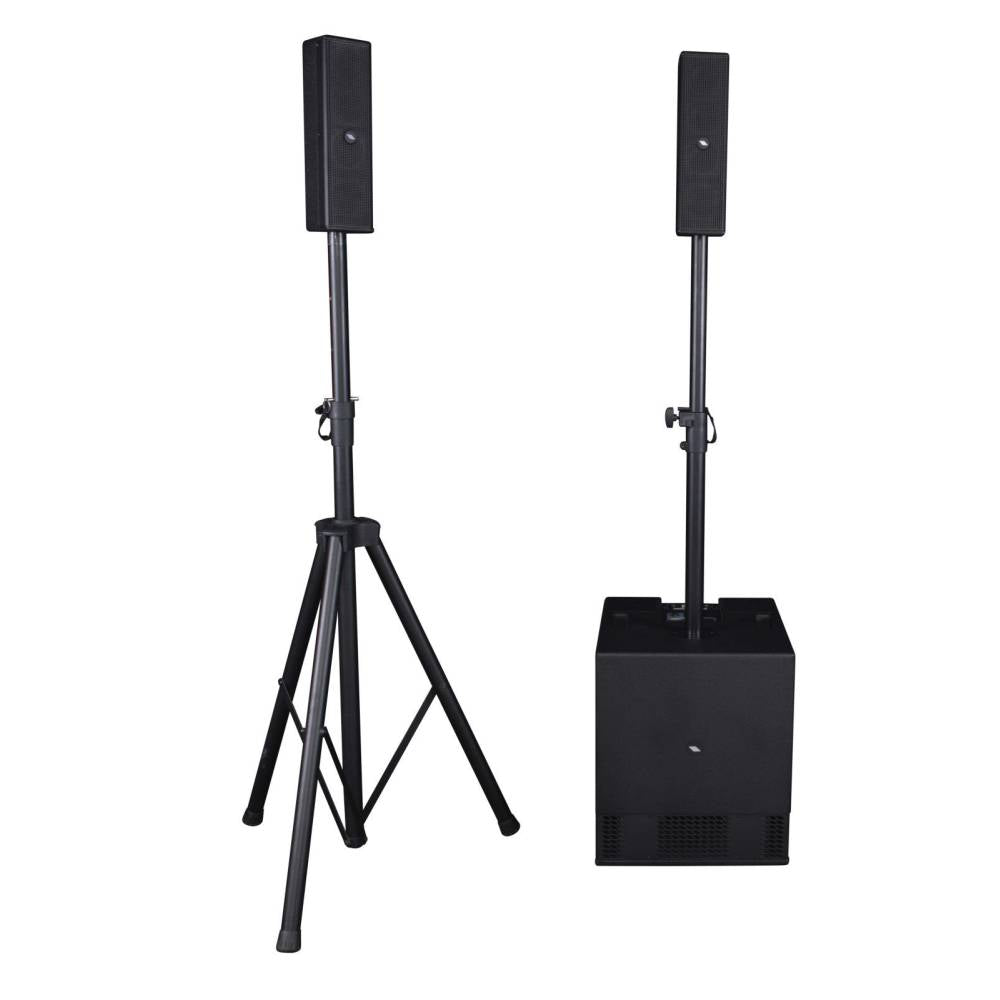

SESSION4 is a compact portable array system in an active 2.1 configuration, including two tops and one subwoofer. Designed for solo performers, small live groups, mobile DJ setups or for music and voice playback in corporate and even home applications, the SESSION4 combines flexibility, portability and performance with a professional design and a sturdy plywood construction.

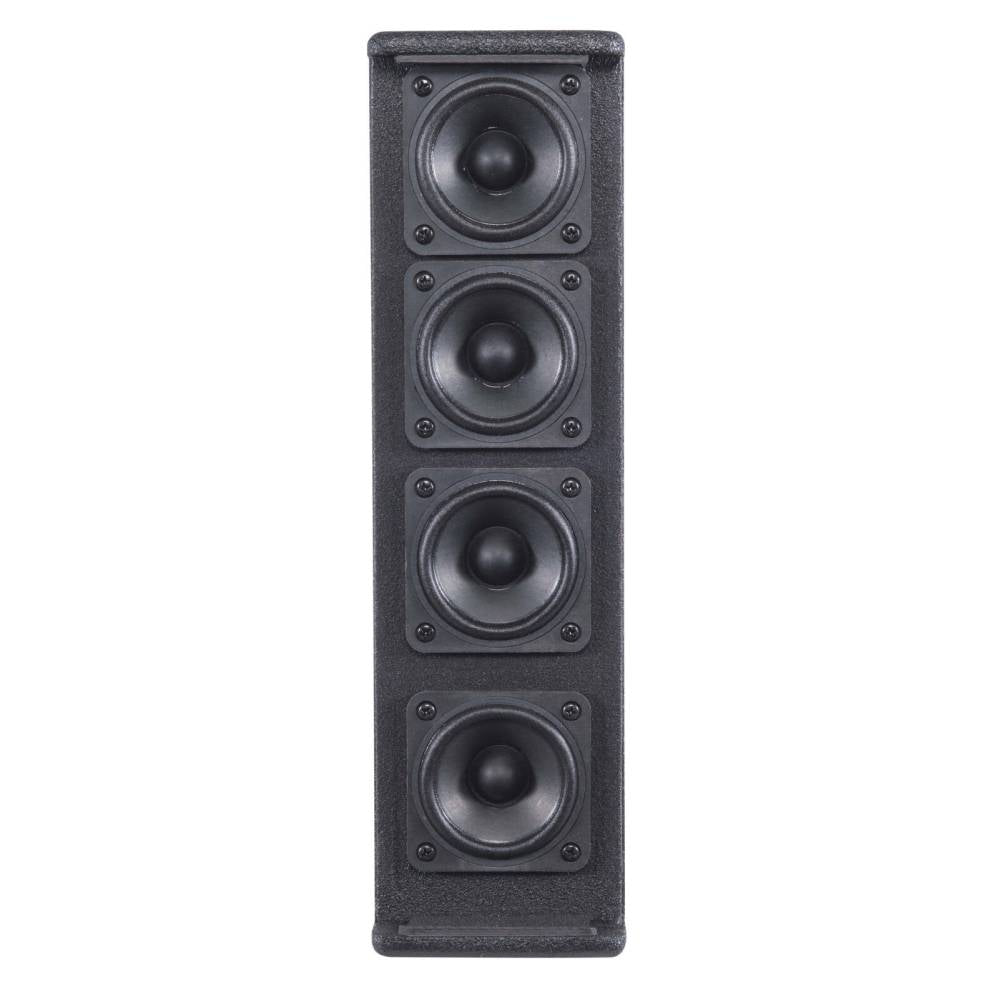

Each top includes four 2.75” neodymium drivers in vertical array configuration, featuring a logarithmic arrangement and a progressive down tilt, for increasing the vertical coverage and providing an accurate sound in any part of the listening area. The sub features two 6.5” woofers in band-pass configuration, able to provide very ‘punchy’ and dynamic basses, together with an extended low frequency response.

The system is powered by a 3-channel 1200W Class D amplifier and it’s controlled by the powerful PROEL CORE LT DSP, able to deliver an outstanding sound definition. The signal processing includes a sophisticated Dynamic EQ and 4 EQ PRESETS (MUSIC, LIVE, DJ, SPEECH) to adapt the speakers to any kind of application. The intuitive control interface features a single knob and a large LCD display, for controlling not only the DSP parameters but also the two MIC/LINE selectable inputs, the system’s configuration and the built-in BLUETOOTH audio interface.

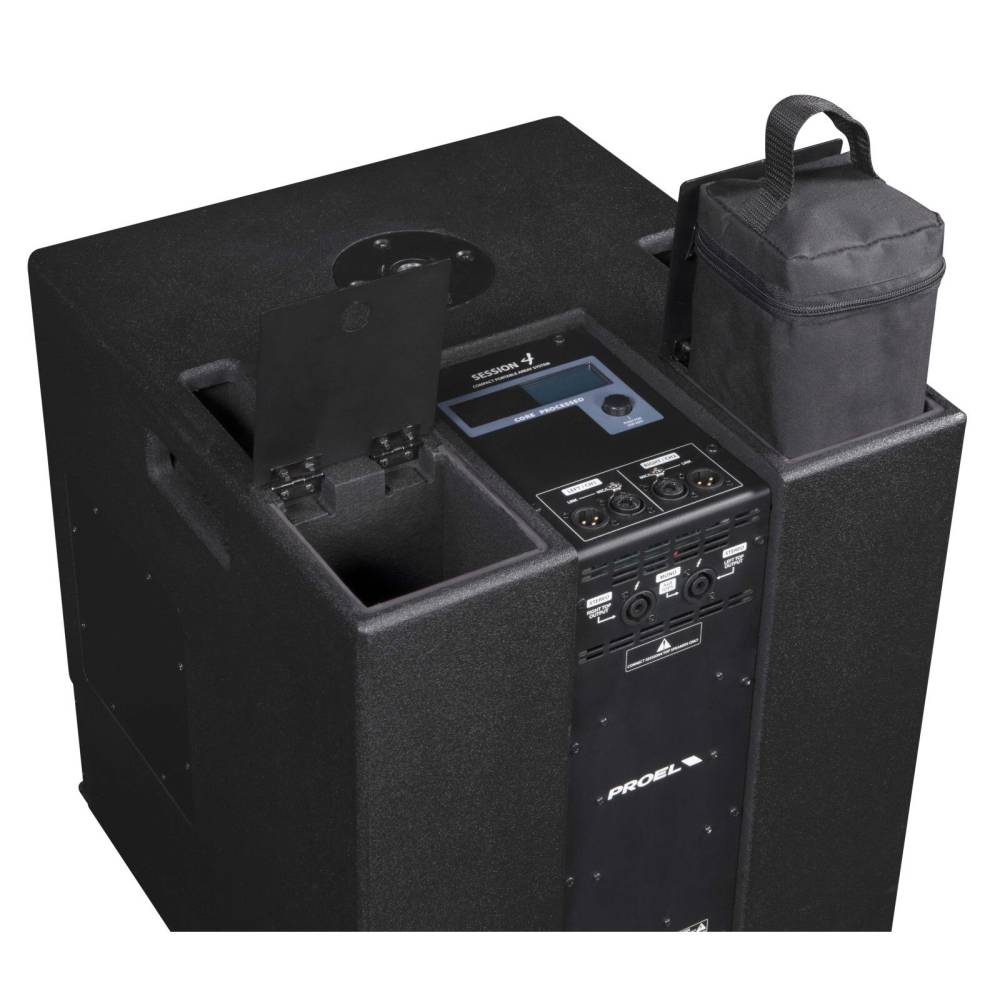

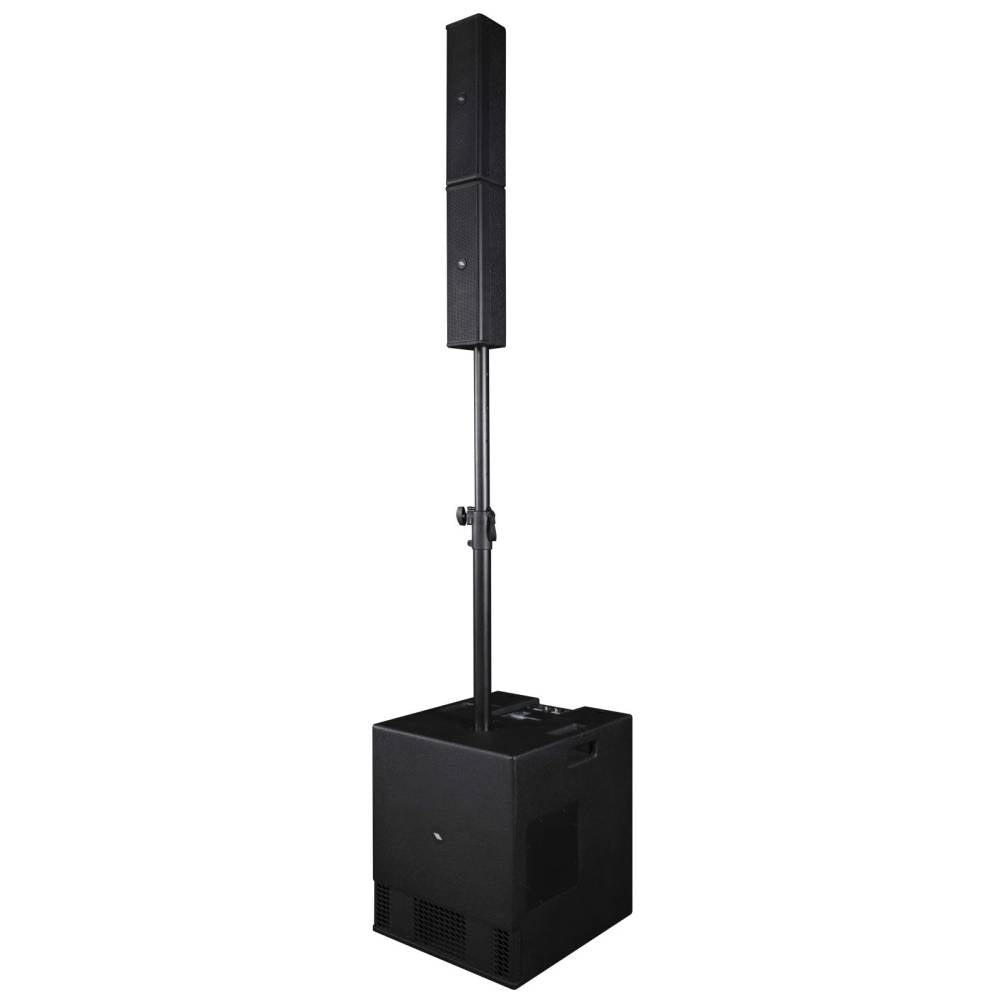

The SESSION4 key features are extreme flexibility and portability, which make it one of the most advanced mobile column systems available. Thanks to a fast linking system with integrated connections, the two tops can be combined together, forming a longer 8-driver column and allowing the system to be used not only in STEREO mode, but also in MONO or DOUBLE mode. Two dedicated compartments in the sub’s cabinet allow the tops to be stored and transported in the unit itself, reducing the space requirement for a better mobility in line with the needs of today’s musicians.
