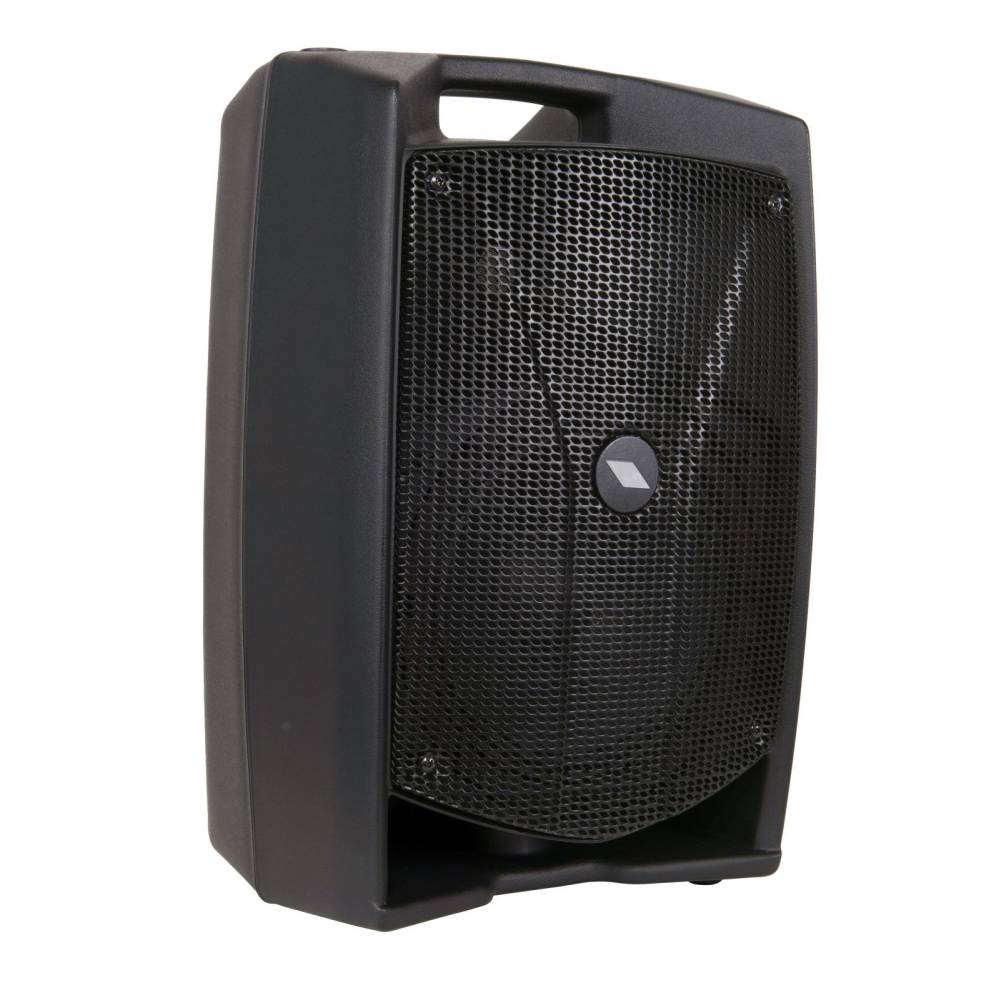

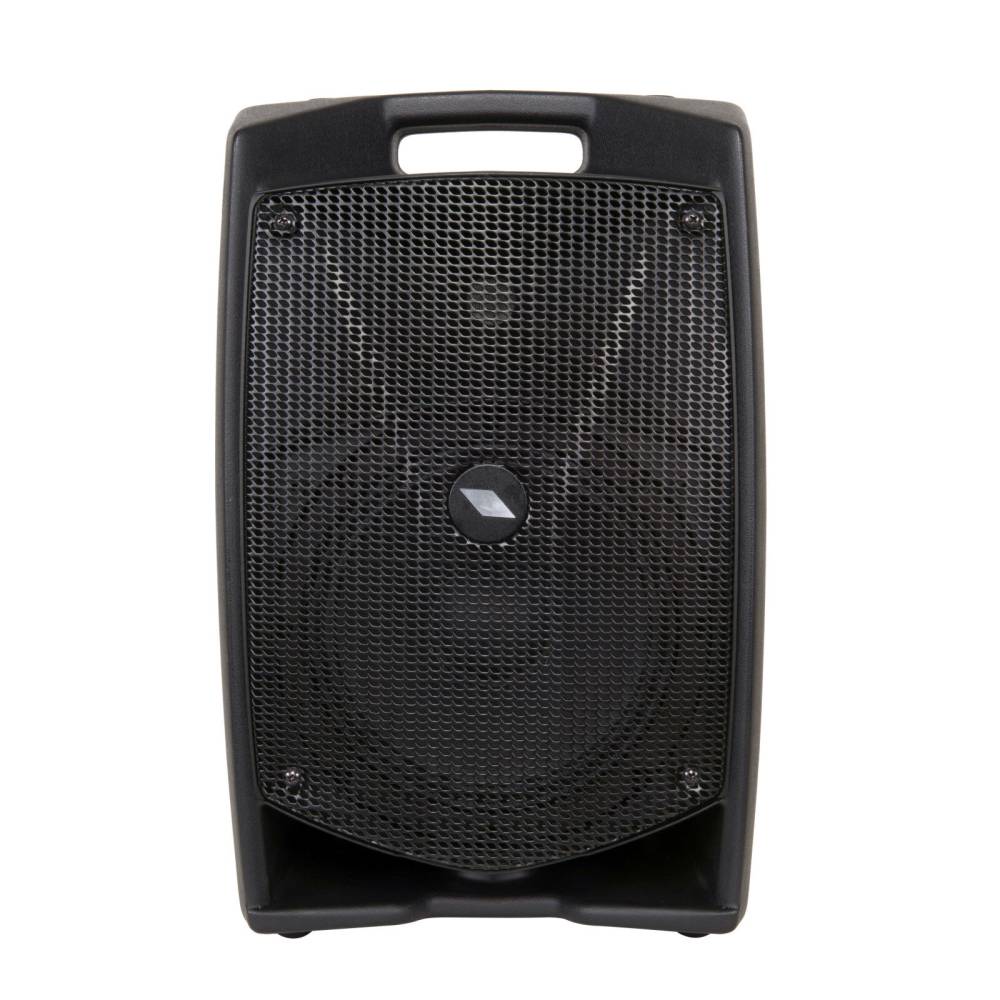

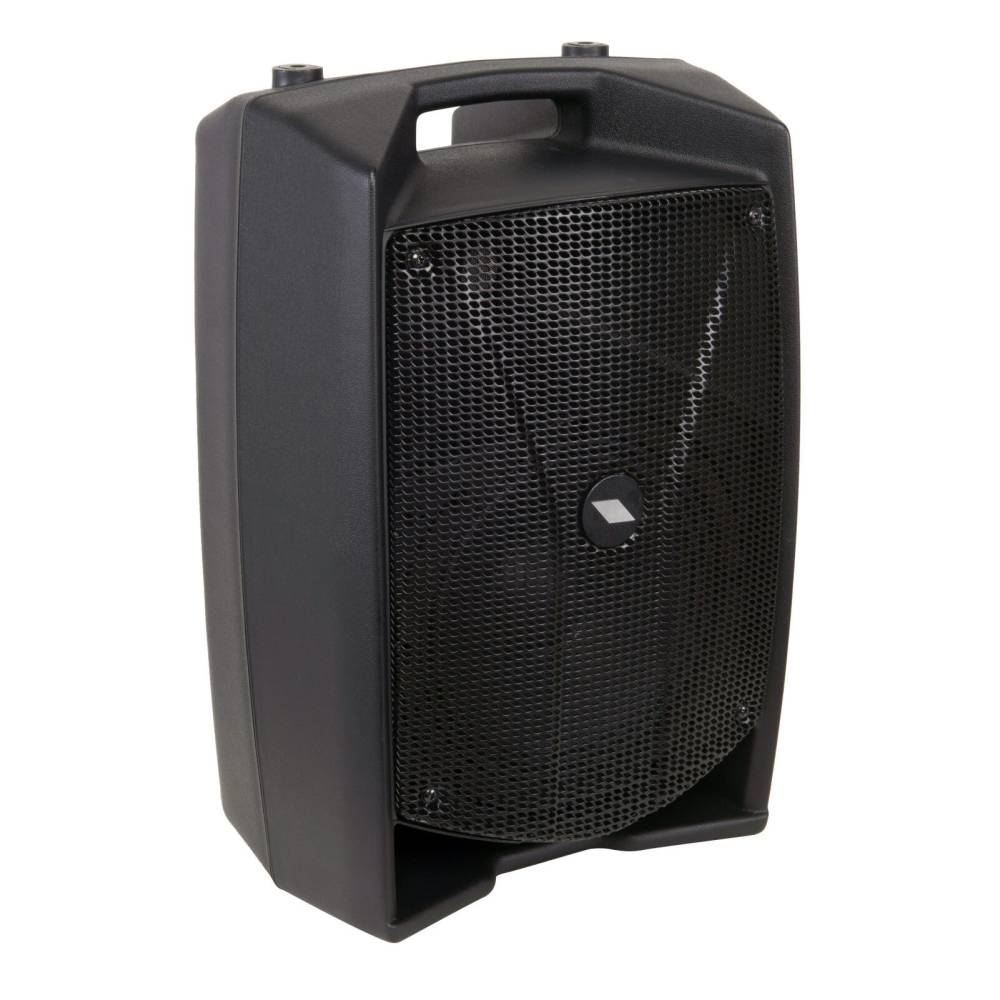

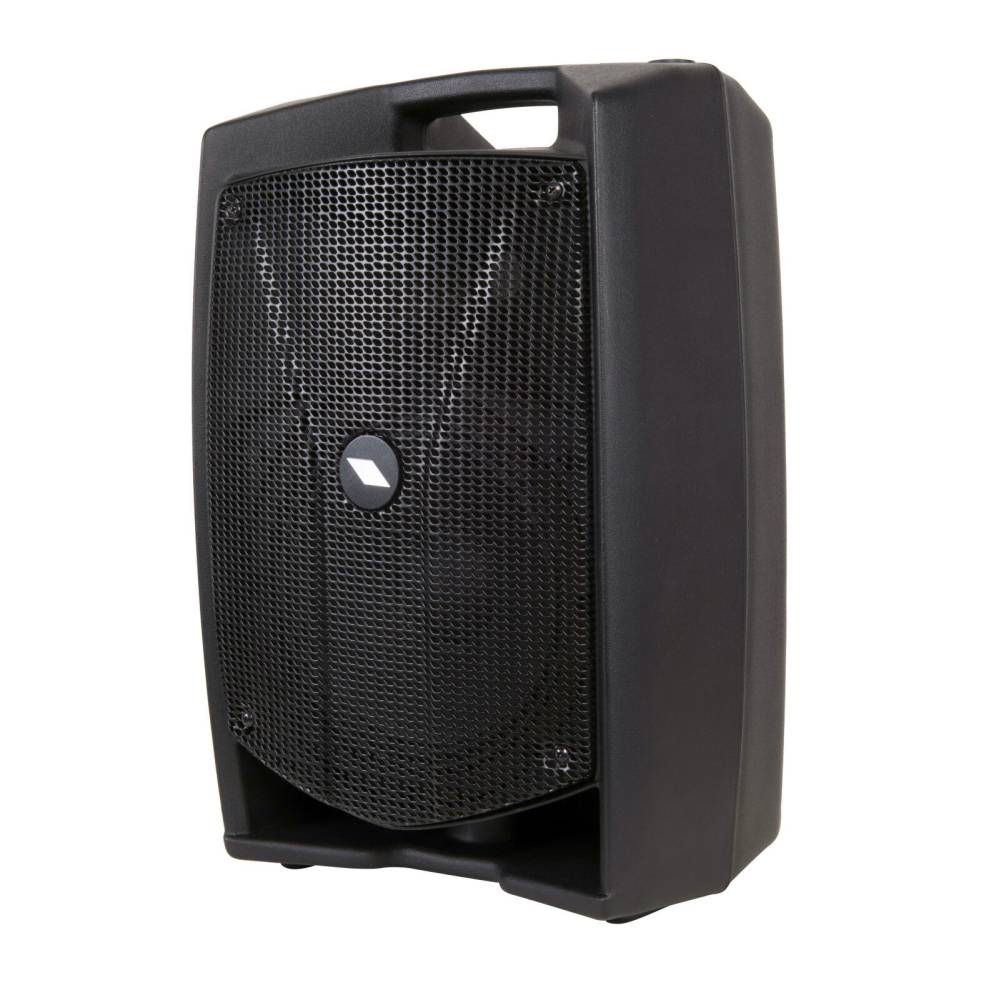

Proel Sound V8 PLUS Active Loudspeaker system

Proel Sound V8 PLUS Active Loudspeaker system

1 / 7
Proel Sound V8 PLUS Active Loudspeaker system
2 / 7
Proel Sound V8 PLUS Active Loudspeaker system
3 / 7
Proel Sound V8 PLUS Active Loudspeaker system
4 / 7
Proel Sound V8 PLUS Active Loudspeaker system
5 / 7
Proel Sound V8 PLUS Active Loudspeaker system
6 / 7
Proel Sound V8 PLUS Active Loudspeaker system
7 / 7
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Proel Sound V8 PLUS Active Loudspeaker system
Regular price $414.19 SGD
Sale price $414.19 SGD Regular price
Sale Sold out
Taxes included.

The shipping costs are calculated on the checkout page.

Specifications

The 2-way bi-amped loudspeaker system

1” NEODYMIUM compression driver

Constant coverage 90° x 60° horn

High-excursion 8” woofer with 1.5” VC

400 W Class D power amplifier with SMPS

Integrated active processor with dual LIMITER circuit

MIC/LINE input with 2-band EQ

Front LED with ON or SIGNAL/CLIP selection

SPL MAX: 121 dB

Frequency response: 70 Hz - 20 kHz

Ultra-lightweight reinforced polypropylene cabinet

Top handle for effortless transport

Slanted shape for the use as a stage monitor

Four M8 flying points

7 kg total weight

Technical Data

System type

2-way vented enclosure

High Frequency Device

1” neodimyium compression driver

Low Frequency Device

8” woofer with 1.5” voice coil

Angular Coverage

90° H x 60° V

Total peak power

400 W

HF Amplifier Continuous Power

50 W Class D

LF Amplifier Continuous Power

150 W Class D

Power Supply

SMPS

Processing

Analog

Frequency Response

70 Hz - 20 kHz

Max SPL

121 dB

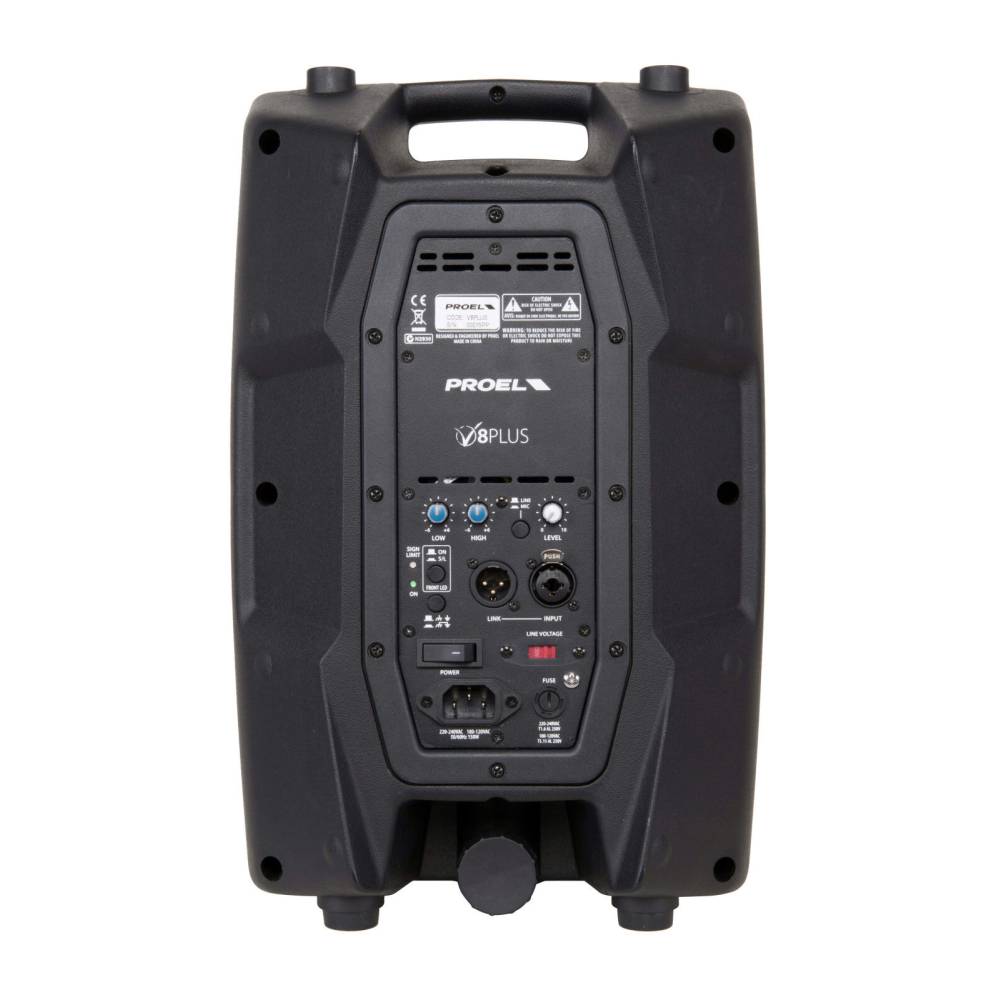

Connectors

IN: COMBO, LINK: XLR M

Controls

LEVEL, LINE/MIC selector, LOW EQ, HIGH EQ, GND LIFT, FRONT LED selector

Monitor Taper

45°

Flying System

4 x M8 - top/bottom

Construction

Polypropylene

Cabinet Colour

Black

Handles

1 x top

Mounting Pole

1 x bottom

Power Supply

230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector



2-way bi-amped loudspeaker system. - 1” NEODYMIUM compression driver. - 90° x 60° horn. - 8” woofer with 1.5” VC. - 400 W Class D power amplifier with SMPS. - Integrated processor with dual LIMITER circuit. - MIC/LINE input with 2-band EQ. - SPL MAX: 121 dB. - Frequency response: 70 Hz - 20 kHz

V PLUS series is the evolution of the acclaimed V series of PROEL powered loudspeakers delivering absolute value in terms of performance, engineering and design at a more affordable cost.

These ultra-portable speakers combine, in carefully engineered and light-weight cabinets, the clearest and most accurate PROEL sound with Class D amplifier technology and Switch Mode Power Supply, offering an unbeatable PA solution at its price point.

V8PLUS features an extremely efficient amplifier module capable of delivering 400 W of robust power to the transducers. Thanks to the use of SMPS technology, this power comes in an ultra-lightweight package, making the V PLUS models the most portable PROEL speakers ever. The power module is hosted in a fully sealed aluminium box, which provides protection, perfect insulation of the cabinet from the outside and extremely efficient cooling.

Thanks to the carefully selected speakers and to the sophisticated active electronics, including dual CLIP LIMITERS for an undistorted sound even at the loudest level, the sound of the V8PLUS has been precisely tuned in every details, in order to provide unheard performance in this price range.

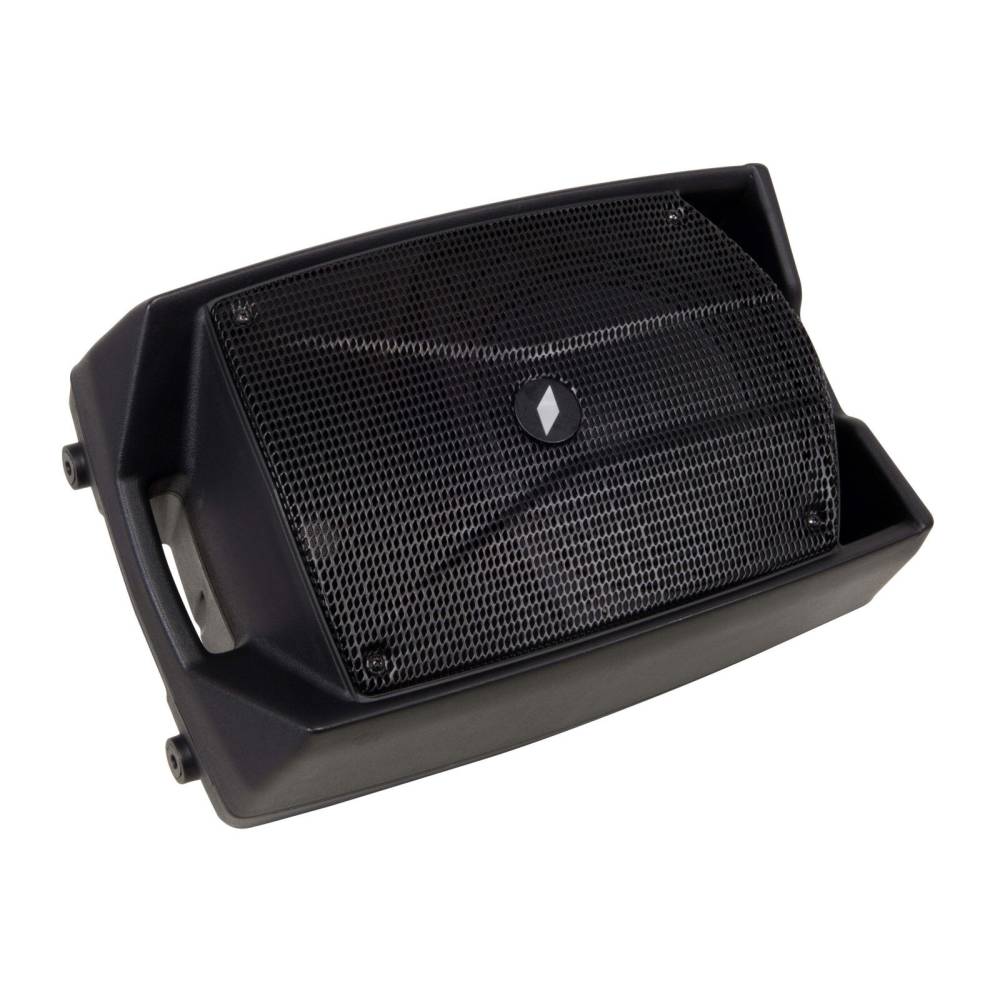

The V8PLUS cabinet, expression of the most advanced Italian design, includes a super-comfortable luggage-style top handle for an effortless portability. The slanted shape allows the speaker to be laid on its side and used also as stage monitor.
