Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Name: Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver
Brand: Sennheiser
SKU: GA 6042 BP
Price: 510.12 SGD
Availability: OutOfStock

Sennheiser GA 6042 BP Overview

The Sennheiser GA 6042 BP is a backpanel adapter for the EK 6042 dual-channel wireless receiver. It features a rugged holster that securely holds the receiver, while providing all the audio and powering connections necessary for using the receiver without a camera� as in a bag or with a mixing console.

Power Connections

To power the EK 6042 with rechargeable Accupacks, the GA 6042 BA Accupack adapter, two BA 61 Accupacks, and the L 60 charger are required (all available separately).
To power the EK 6042 through a battery distribution system, the CA 6042 DC Hirose external power supply cable is required (available separately).

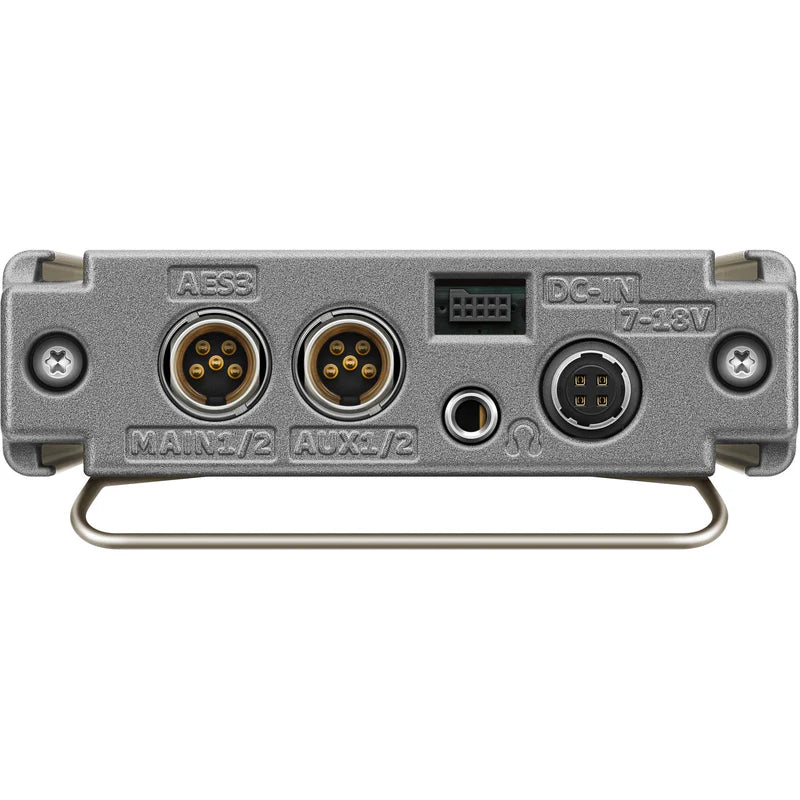

Audio Connections

To connect the EK 6042 to a sound recording device or a mixing console, at least one CA 6042 XLR audio output Y-cable is required (available separately)�5-pin mini XLR to 2 x XLR.
The primary audio output Main 1/2 outputs the audio signals of both receiving channels, either in analog form or digitally.
The secondary audio output Aux 1/2 outputs analog audio signals only.
A 3.5mm headphone jack allows for direct monitoring of both channels.
In the Box

Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Limited 2-Year Warranty

View full details

All Categories Sennheiser

Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

1 / 2

2 / 2

❮ ❯

Sennheiser GA 6042 BP Overview

Power Connections

To power the EK 6042 with rechargeable Accupacks, the GA 6042 BA Accupack adapter, two BA 61 Accupacks, and the L 60 charger are required (all available separately).
To power the EK 6042 through a battery distribution system, the CA 6042 DC Hirose external power supply cable is required (available separately).

Audio Connections

To connect the EK 6042 to a sound recording device or a mixing console, at least one CA 6042 XLR audio output Y-cable is required (available separately)�5-pin mini XLR to 2 x XLR.
The primary audio output Main 1/2 outputs the audio signals of both receiving channels, either in analog form or digitally.
The secondary audio output Aux 1/2 outputs analog audio signals only.
A 3.5mm headphone jack allows for direct monitoring of both channels.
In the Box

Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Limited 2-Year Warranty

$510.12 SGD

Sale Sold out

Taxes included.

The shipping costs are calculated on the checkout page.

Quantity

Specifications

Technical Data

Sennheiser GA 6042 BPSpecs

Audio Outputs

1 x 5-Pin Mini XLR, Main 1/2, Digital and Analog Audio

1 x 5-Pin Mini XLR, Aux 1/2, Analog Audio

1 x 1/8" / 3.5 mm, Headphone jack

Power Connectors

1 x 4-Pin Hirose, 7 to 18 VDC Input

1 x Proprietary Connector for Accupack Adapter

Packaging Info

Package Weight

0.645 lb

Box Dimensions (LxWxH)

8.7 x 4.8 x 2.3"

Sennheiser GA 6042 BP Overview

Power Connections

To power the EK 6042 with rechargeable Accupacks, the GA 6042 BA Accupack adapter, two BA 61 Accupacks, and the L 60 charger are required (all available separately).
To power the EK 6042 through a battery distribution system, the CA 6042 DC Hirose external power supply cable is required (available separately).

Audio Connections

To connect the EK 6042 to a sound recording device or a mixing console, at least one CA 6042 XLR audio output Y-cable is required (available separately)�5-pin mini XLR to 2 x XLR.
The primary audio output Main 1/2 outputs the audio signals of both receiving channels, either in analog form or digitally.
The secondary audio output Aux 1/2 outputs analog audio signals only.
A 3.5mm headphone jack allows for direct monitoring of both channels.
In the Box

Sennheiser GA 6042 BP Backpanel Adapter for EK 6042 Receiver

Limited 2-Year Warranty
