Features :

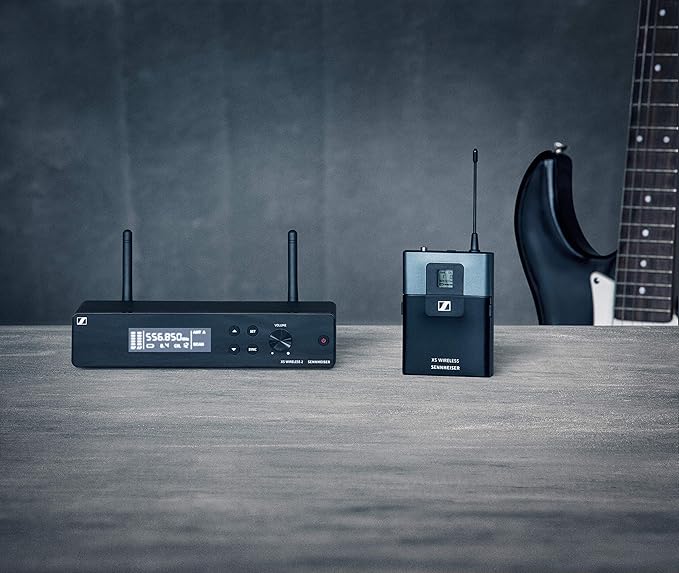

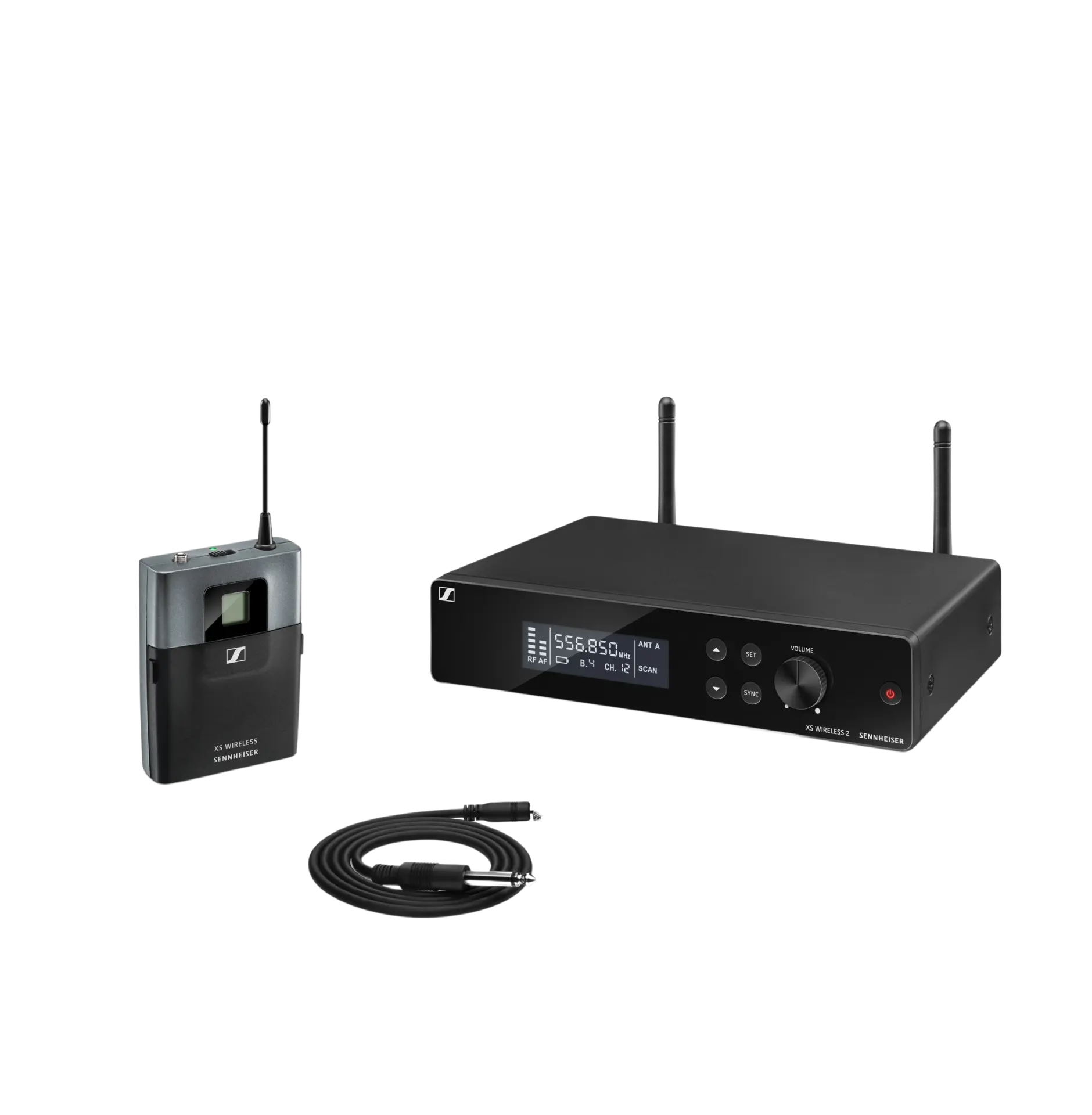

• Robust instrument cable and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

Dimensions approx : 200 x 42 x 127 mm

Weight approx :  680g

Power supply : 12 V DC nom. / 300 mA

Housing metal

AF frequency response : 50 to 16,000 Hz (–3 dB)

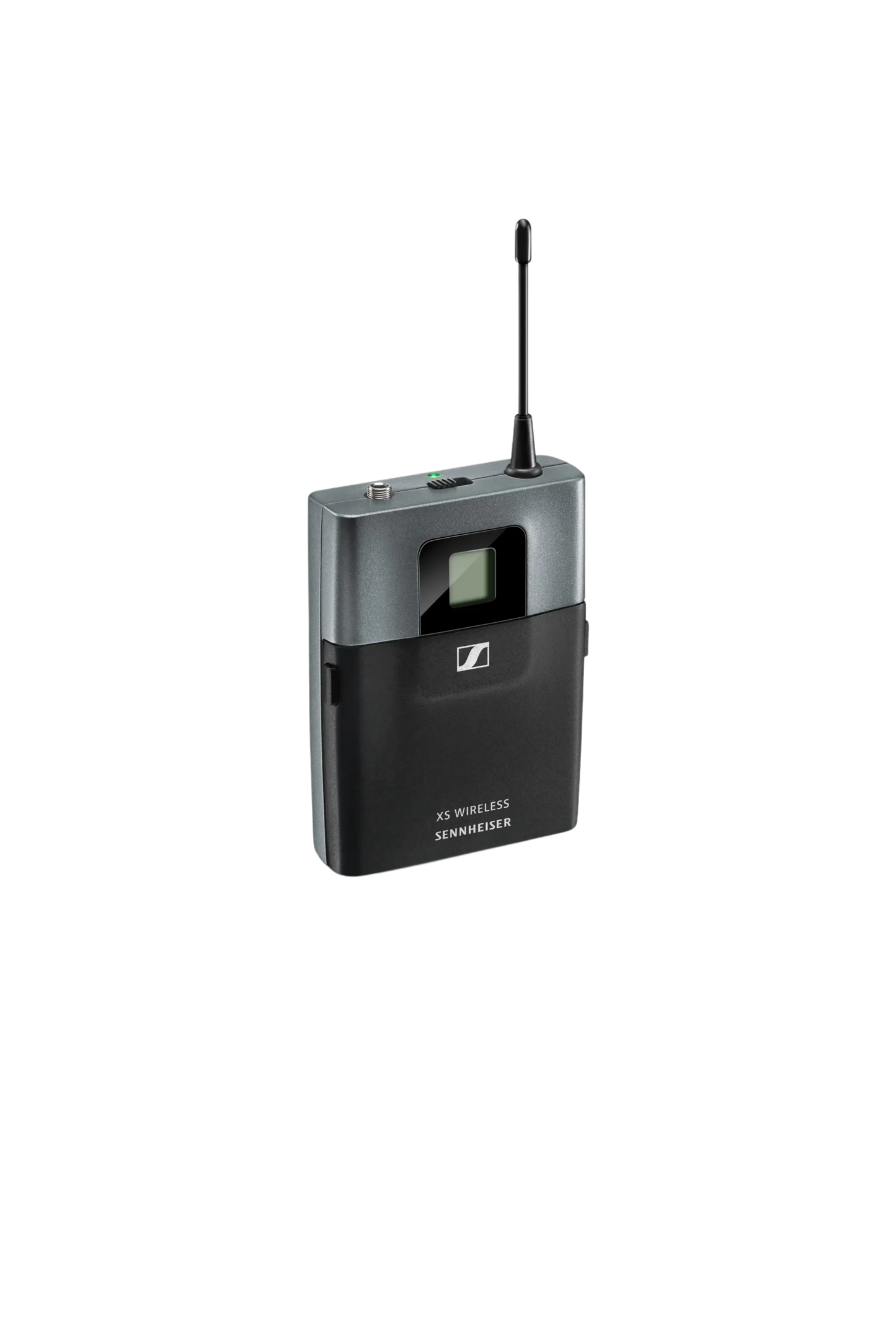

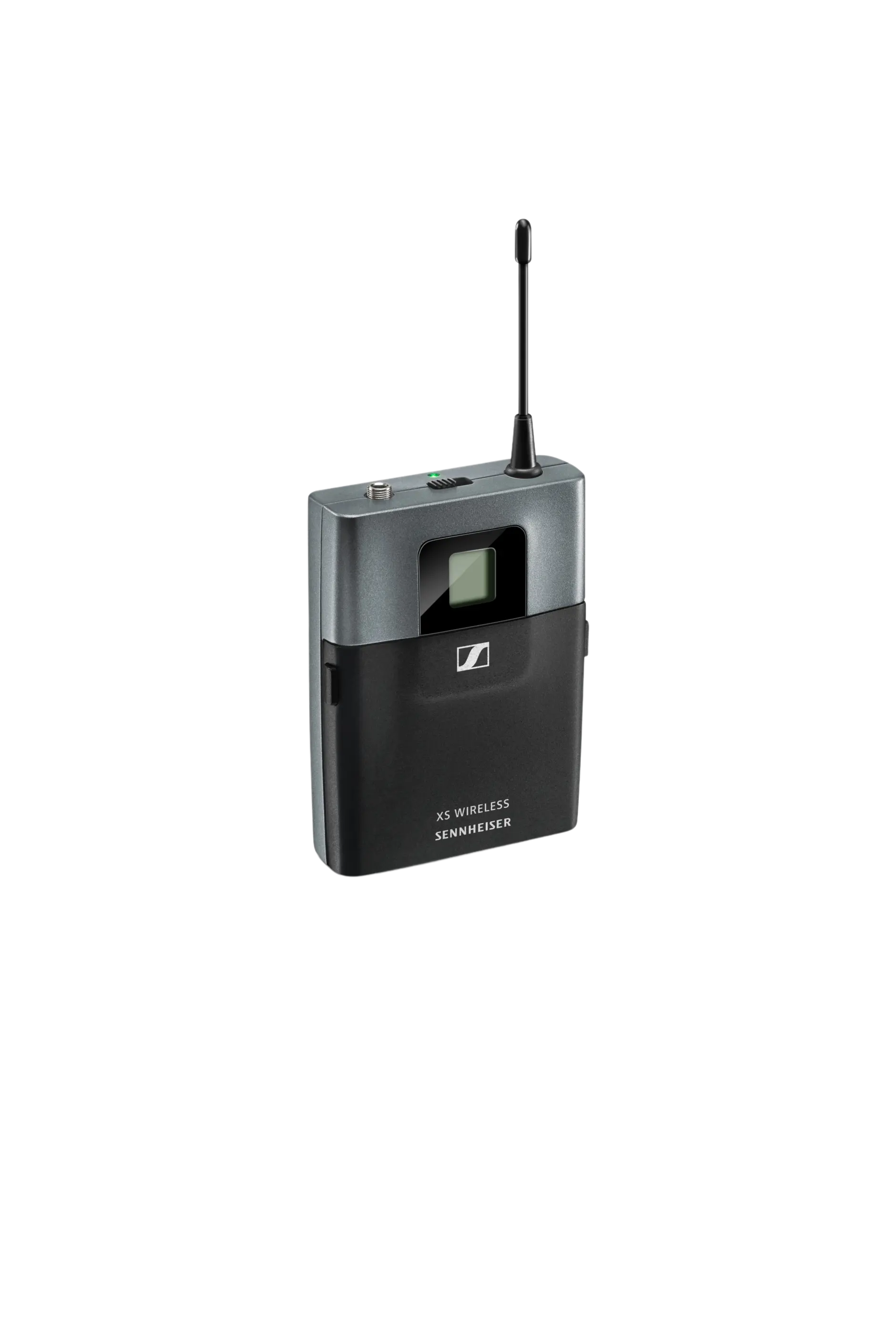

Dimensions approx :71 x 96 x 28 mm

Weight approx : 95g

Operating time approx : 10 hrs

Power supply : 2 AA size batteries, 1.5 V

Housing robust : ABS

AF frequency response ：50 - 16000Hz

Frequency response : 50 to 16,000 Hz (–3 dB)

THD, total harmonic distortion ≤ 0.9%

Signal-to-noise ratio : ≥ 103 dBA

RF output power : 10 mW

Switching bandwidth up to 24 MHz

Modulation : wideband  FM

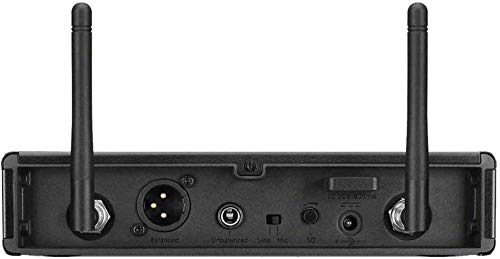

Output voltage : 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

Diversity reception : True Diversity

Frequency : 8 frequency banks, each with up to 12 factory-preset channels

Frequency range

A: 548-572 MHz

C: 766-790 MHz

Sensitivity : < 3 μV at 52 dB(A)rms S/N

Squelch : switchable from 3 dBμV to 28 dBμV (via Pilot Tone)

Synchronization : 2.4 GHz, Low Power OQPSK (only active during synchronization)"

Adjustment Range Transmitter : 0 to -30 dB, adjustable in 10 dB steps

Audio adjustment range : 40 dB, adjustable in 5-dB steps

Line / Mic level 20 dB, switchable

Temperature Range operation : 0°C to +40°C, storage: –20°C to +70°C

Receiver Principle : double superheterodyne
